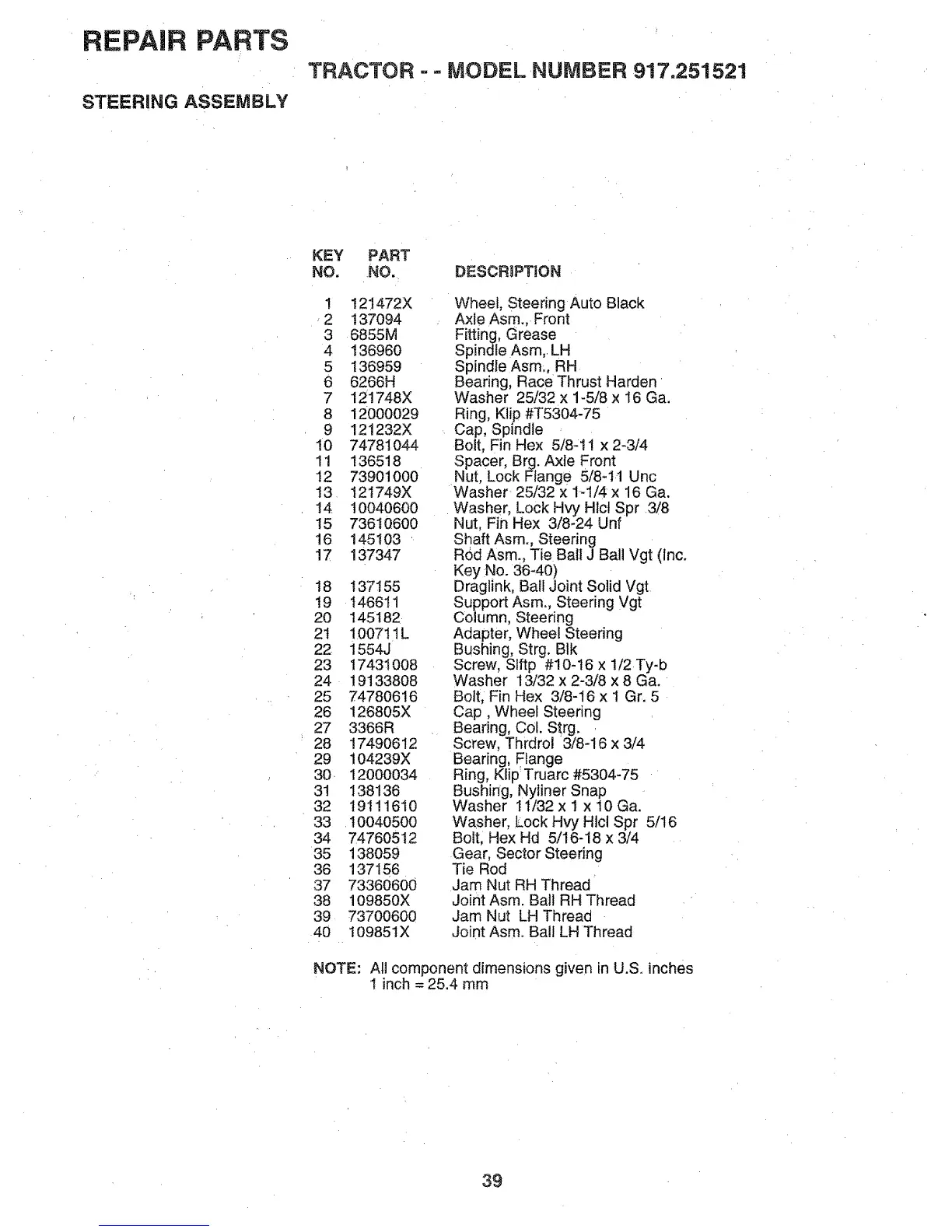

REPAIR PARTS
STEERING ASSEMBLY
TRACTOR -- MODEL NUMBER 917.251521
KEY PART
NO. NO. DESCRIPTION
1 121472X
2 t37094
3 6855M
4 t36960
5 136959
6 6266H
7 121748X
8 12000029
9 121232X
!0 74781044
11 136518
12 73901000
13 121749X
14 10040600
t5 73610600
16 145103
17 137347
t8 137155
t9 146611
20 145182
21 100711L
22 1554J
23 17431008
24 19133808
25 74780616
26 126805X
27 3366R
28 17490612
29 104239X
30 12000034
31 138136
32 19111610
33 10040500
34 74760512
35 138059
36 137156
37 73360600
38 109850X
39 73700600
40 109851X
Wheel, Steering Auto Black
Axle Asm., Front
Fitting, Grease
Spindle Asm, LH
SpindJe Asm, RH
Bearing, Race Thrust Harden
Washer 25/32 x 1-5/8 x 16 Ga.
Ring, Klip #T5304-75
Cap, Spindle
Bolt, Fin Hex 5/8-!1 x 2-3/4
Spacer, Brg. Axle Front
Nut, Lock Flange 5/8-11 Uric
Washer 25/32 x 1-1/4 x 16 Ga.
Washer, Lock Hvy HIcl Spr 3/8
Nut, Fin Hex 3/8-24 Unf
Shaft Asm., Steering
Rod Asm., Tie Ball J Ball Vgt (Inc.
Key No. 36-40)
Draglink, Bail Joint Solid Vgt
Support Asm., Steering Vgt
Column, Steering
Adapter, Wheel Steering
Bushing, Strg. BIk
Screw, Stftp #10-t6 x t/2 Ty-b
Washer 13/32 x 2-3/8 × 8 Ga.
Bolt, Fin Hex 3/8-16 x 1 Gr. 5
Cap, Wheel Steering
Beadng, Col. Strg.
Screw, Thrdrol 3/8-16 x 3/4
Bearing, Flange
Ring, Klip Truarc #5304-75
Bushing, Nyliner Snap
Washer 1t/32 x 1 x t0Ga.
Washer, Lock Hvy Hlcl Spr 5/16
Bolt, Hex Hd 5/16-18 x 3/4
Gear, Sector Steering
Tie Rod
Jam Nut RH Thread
Joint Asm. Ball RH Thread
Jam Nut LH Thread
Joint Asm Ball LH Thread
NOTE: All component dimensions given in U.S. inches
I inch = 25.4 ram
