Craftsman 917.251521 - Page 42

REPAIR PARTS

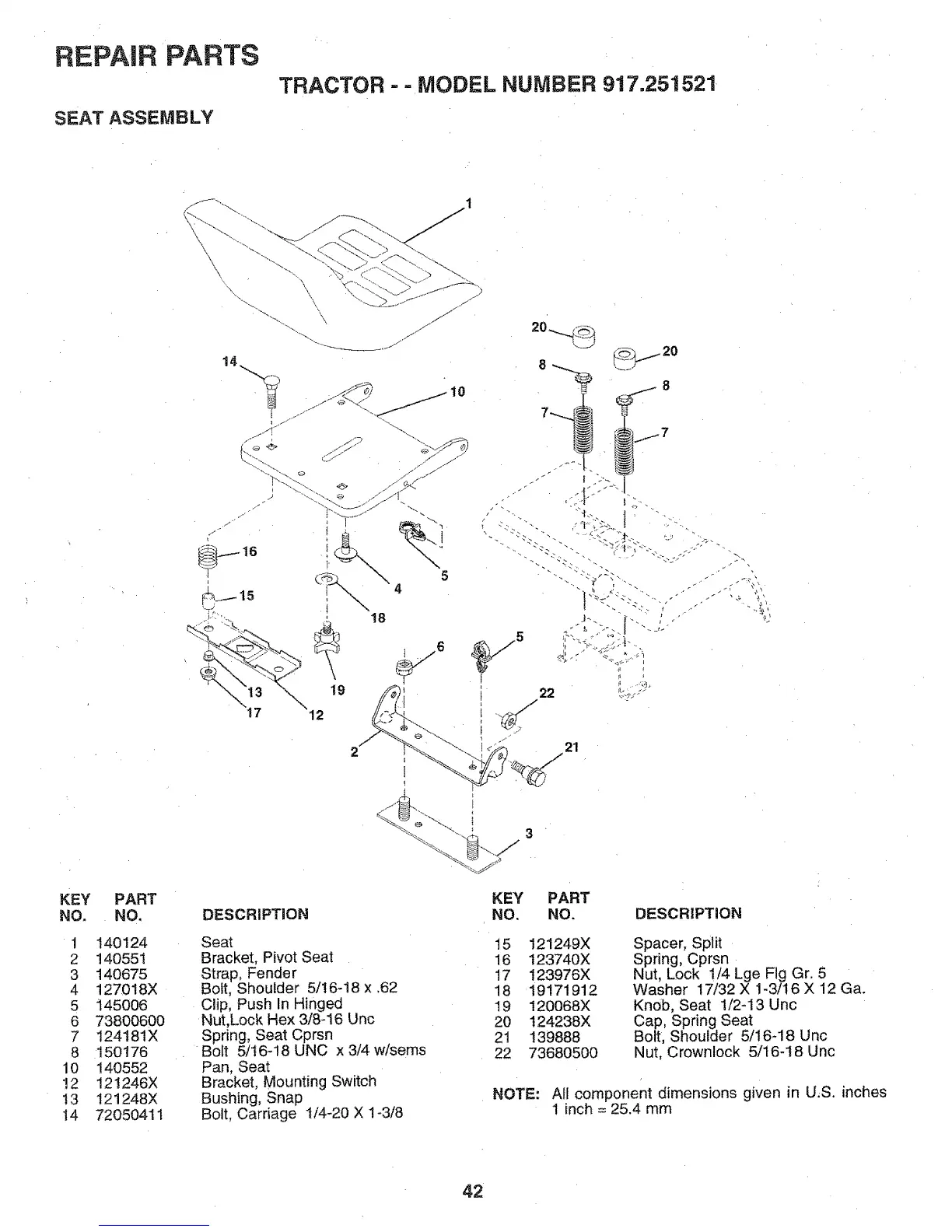

SEAT ASSEMBLY
TRACTOR -- MODEL NUMBER 917.251521
\
KEY
NO.
PART
NO.
1 140124
2 140551
3 140675
4 127018X
5 145006
6 73800600
7 124181X
8 150176
10 140552
12 121246X
!3 121248X
14 72050411
22
J
.......... 21
DESCRiPTiON
KEY PART
NO. NO. DESCRIPTION
Seat
Bracket, Pivot Seat
Strap, Fender
Bolt, Shoulder 5/16-18 x .62
Clip, Push In Hinged
Nut,Lock Hex 3/8-16 Unc
Spring, Seat Cprsn
Bolt 5/16-18 UNC x 3/4 w/seres
Pan, Seat
Bracket, Mounting Switch
Bushing, Snap
Bolt, Carriage 1/4-20 X 1-3/8
15 121249X
16 123740X
17 t23976X
18 19171912
19 120068X
20 t24238X
21 139888
22 73680500
Spacer, Split
Spring, Cprsn
Nut, Lock 1/4 Lge Fig Gr. 5
Washer 17/32 X 1-3/16 X 12 Ga.
Knob, Seat 1/2-13 Unc
Cap, Spring Seat
Bolt, Shoulder 5/16-18 Unc
Nut, Crownlock 5/16-18 Unc
NOTE: All component dimensions given in U,S. inches
1 inch = 25.4 mm
42
