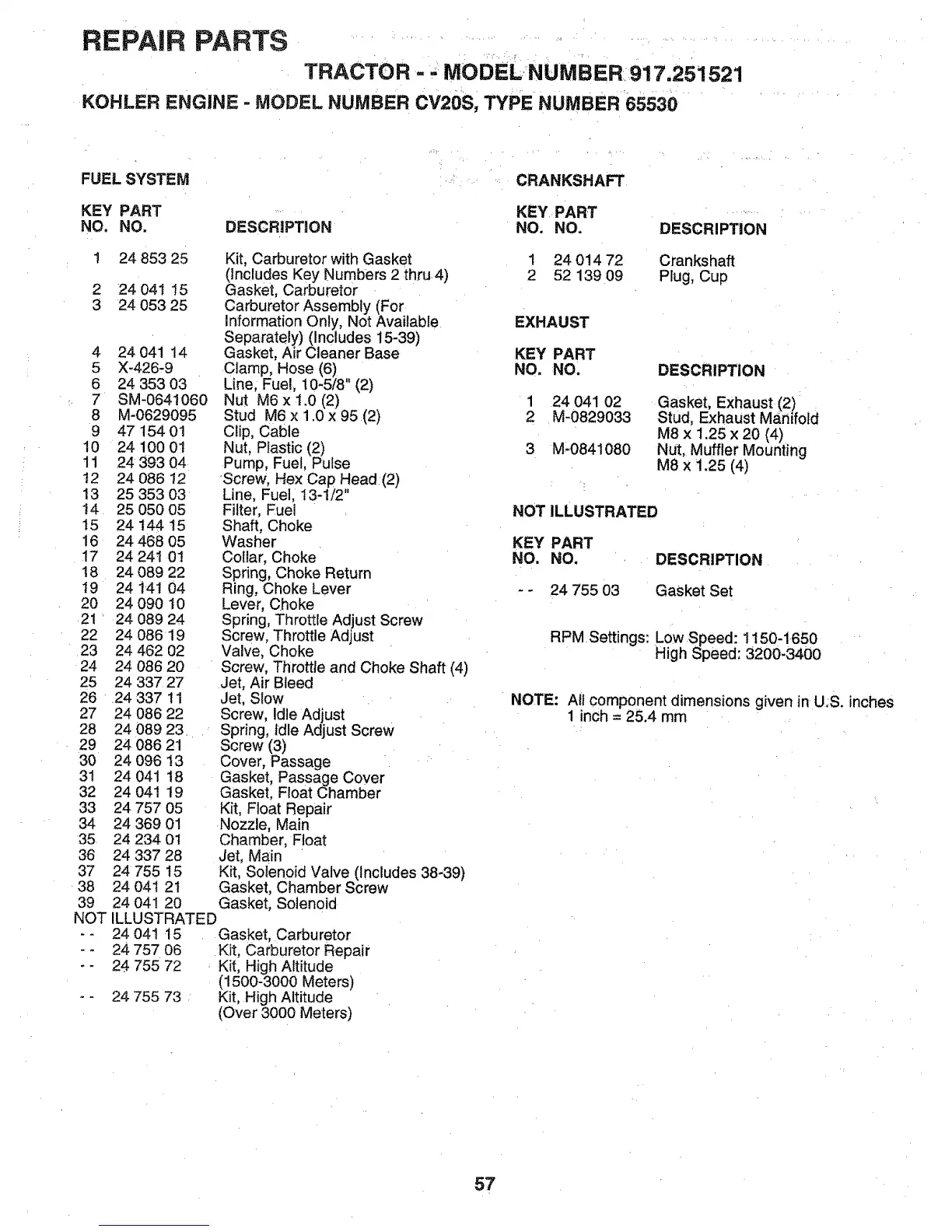

REPAIR PARTS
TRACTOR- - MODEL.NUMBER 917.251521
KOHLER ENGINE - MODEL NUMBER CV20S, TYPE NUMBER 65530
FUEL SYSTEM
CRANKSHAFT
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 24 853 25 Kit, Carburetor with Gasket
(includes Key Numbers 2 thru 4)
2 24 041 15 Gasket, Carburetor
3 24 053 25 Carburetor Assembly (For
Information Only, Not Available
Separately) (Includes 15-39)
4 24 041 14 Gasket, Air Cleaner Base
5 X_426-9 Clamp, Hose (6)
6 24 353 03 Line, Fue!, 10-5/8" (2)
7 8M-0641060 Nut M6x1.0(2)
8 M-0629095 Stud M6 x 1.0 x 95 (2)
9 47 154 01 Clip, Cable
10 24 100 01 Nut, Plastic (2)
11 24 393 04 Pump, Fuel, Pulse
12 24 086 12 "Screw, Hex Cap Head (2)
13 25 353 03 Line, Fuel, 13-1/2"
t4 25 050 05 Filter, Fuel
t5 24 t44 15 Shaft, Choke
16 24 468 05 Washer
17 24 241 01 Co[lar, Choke
18 24 089 22 Spring, Choke Return
19 24 141 04 Ring, Choke Lever
20 24 090 10 Lever, Choke
21 24 089 24 Spring, Throttle Adjust Screw
22 24 086 19 Screw, Throttle Adjust
23 24 462 02 Valve, Choke
24 24 086 20 Screw, Throttle and Choke Shaft (4)
25 24 337 27 Jet, Air Bleed
26 24 337 11 Jet, Stow
27 24 086 22 Screw, Idle Adjust
28 24 089 23 Spring, Idle Adjust Screw
29 24 086 21 Screw (3)
30 24 096 13 Cover, Passage
31 24 041 18 Gasket, Passage Cover
32 24 041 19 Gasket, Float Chamber
33 24 757 05 Kit, Float Repair
34 24 369 01 Nozzle, Main
35 24 234 01 Chamber, Float
36 24 337 28 Jet, Main
37 24 755 15 Kit, Solenoid Valve (Includes 38-39)
38 24 041 2t Gasket, Chamber Screw
39 24 041 20 Gasket, Solenoid
NOT ILLUSTRATED
-- 24 041 15 Gasket, Carburetor
- - 24 757 06 Kit, Carburetor Repair
- - 24 755 72 Kit, High Altitude
(1500-3000 Meters)
- - 24 755 73 Kit, High Altitude
(Over 3000 Meters)
DESCRIPTION
1 24 014 72 Crankshaft
2 52 139 09 Plug, Cup
EXHAUST
KEY PART
NO. NO. DESCRIPTION
1 24 041 02 Gasket, Exhaust (2)
2 M-0829033 Stud, Exhaust Manifold
M8 x 1,25 x 20 (4)
3 M-0841080 Nut, Muffler Mounting
M8 x 1.25 (4)
NOT ILLUSTRATED
KEY PART
NO. NO. DESCRIPTION
- - 24 755 03 Gasket Set
RPM Settings: Low Speed: 1150-1650
High Speed: 3200-3400
NOTE: Allcomponent dimensions given in U.S. inches
1 inch = 25.4 rnm
57
