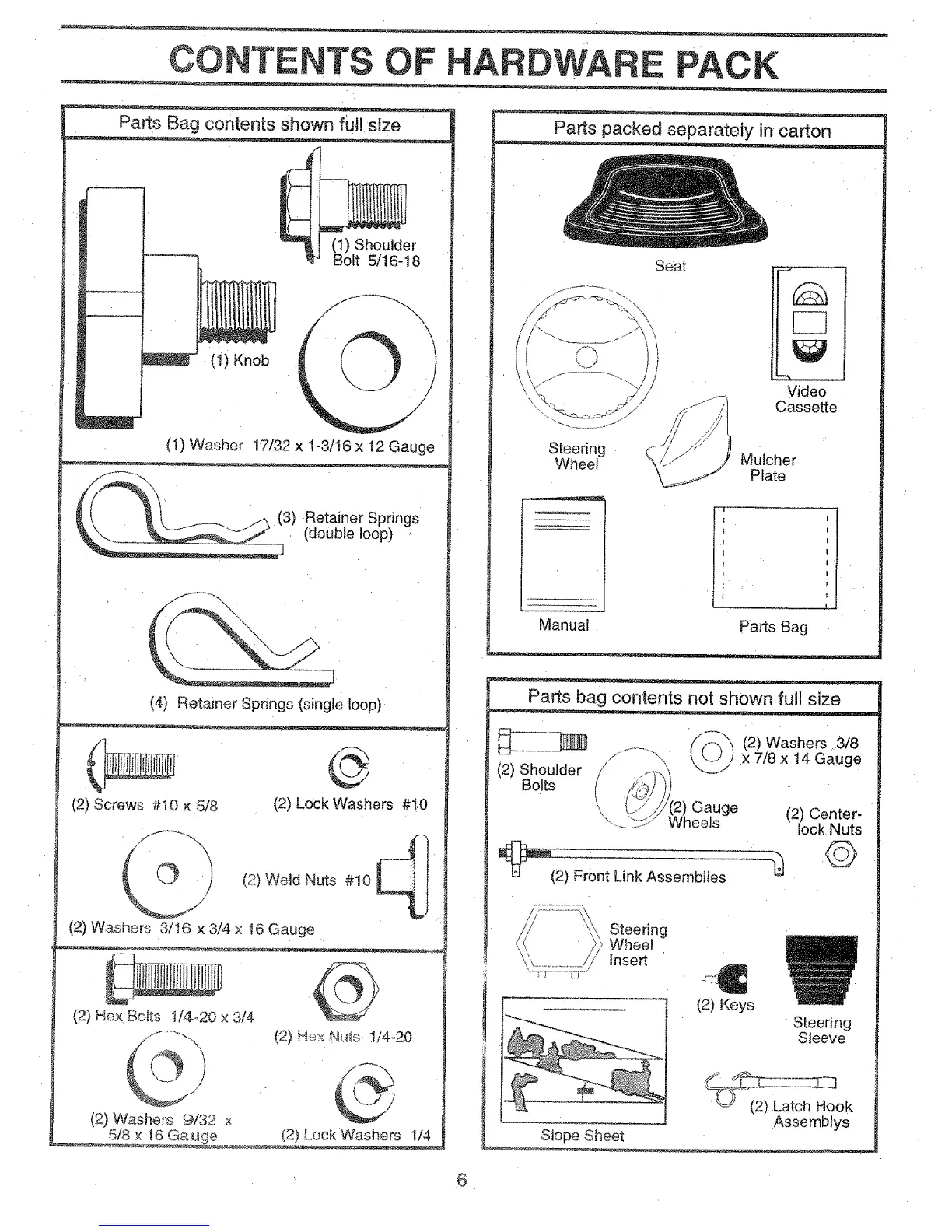

CONTENTSOF HARDWAREPACK
Parts, Bag contents shown futl size
(1) Shoulder
Bolt 5/16-18
(i) Knob
(1) Washer 17/32 x 1-3/t6 x 12 Gauge
3) Retainer Springs(double loop) ,
(4) Retainer Springs (single loop)
(2) Screws #10 × 5/8
(2) Lock Washers #I,0
(2) Weld Nuts #10
(2) Washers 3/t6 x 3/4 x 16 Gauge
(2)Hex Botts t/4,o20 × 3/4
(2) Washers 9/32 ×
5/8 × t6 Gau{
(2) Hex Nuts 1/4-20
(2) Lock Washers 1/4
Parts packed separately in carton
Steering
Wheel
Seat
Video
Cassette
Mulcher
Plate
Manual
I
Parts Bag
I
Parts bag contents not shown full size
(2) Shoulder
Bolts
(2) Washers 3/8x 7/8 x 14 Gauge
Gauge
Front Link Assemblies
(2) Center-
lock Nuts
©
///_:":=:==<_,_Steering
\!_:,==:::i!:i:// insert
Steering
Steeve
(2) Keys
Stope Sheet
_" (2)Latch Hook
Assemblys
6
