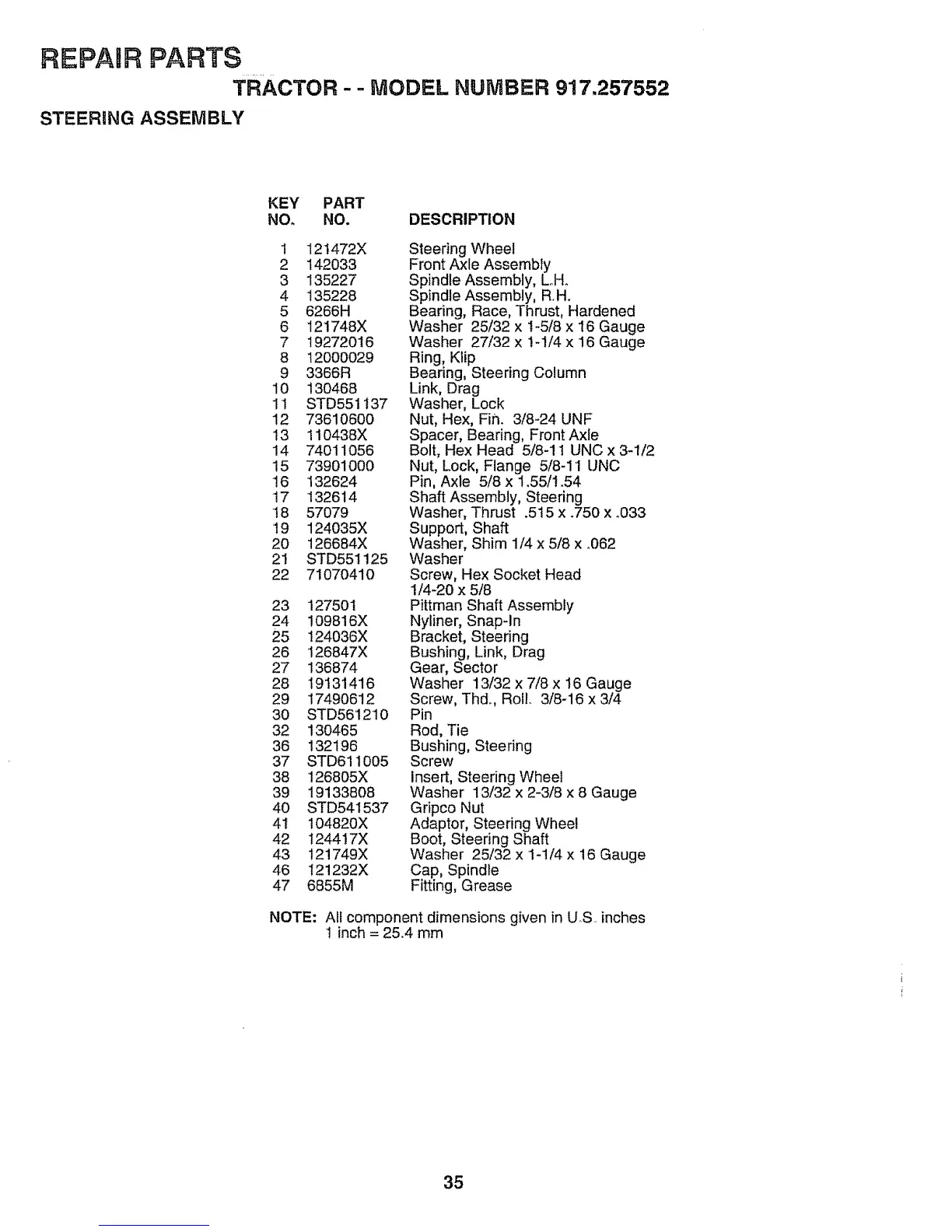

REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.257552
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 121472X Steering Wheel
2 142033 Front Axle Assembly
3 135227 Spindle Assembly, L,.H.
4 135228 Spindle Assembly, RH.
5 6266H Bearing, Race, Thrust, Hardened
6 121748X Washer 25/32 x I-5/8 x 16 Gauge
7 19272016 Washer 27/32 x 1-1/4 x 16 Gauge
8 12000029 Ring, Klip
9 3366R Bearing, Steering Column
10 130468 Link, Drag
11 STD55t137 Washer, Lock
12 73610600 Nut, Hex, Fin. 3/8-24 UNF
13 110438X Spacer, Bearing, Front Axle
14 74011056 Bolt, Hex Head 5/8-!t UNC x 3-1/2
15 73901000 Nut, Lock, Flange 5/8-11 UNC
16 132624 Pin, Axle 5/8 x 1.55/1.54
17 132614 Shaft Assembly, Steering
t8 57079 Washer, Thrust .515 x .750 x _033
t9 124035X Support, Shaft
20 126684X Washer, Shim 1/4 x 5/8 x .062
21 STD551125 Washer
22 71070410 Screw, Hex Socket Head
1/4-20 x 5/8
23 127501 Pittman Shaft Assembly
24 109816X Nyliner, Snap-In
25 124036X Bracket, Steering
26 126847X Bushing, Link, Drag
27 136874 Gear, Sector
28 19131416 Washer 13/32 x 7/8 x 16 Gauge
29 17490612 Screw, Thdo, Roll. 3/8-16 x 3/4
30 STD561210 Pin
32 130465 Rod, Tie
36 132196 Bushing, Steering
37 STD611005 Screw
38 126805X Insert, Steering Wheel
39 19133808 Washer 13/32 x 2-3/8 x 8 Gauge
40 STD541537 Gripco Nut
41 104820X Adaptor, Steering Wheel
42 t24417X Boot, Steering Shaft
43 121749X Washer 25/32 x 1-1/4 x 16 Gauge
46 121232X Cap, Spindle
47 6855M Fitting, Grease
NOTE: All component dimensions given in US inches
I inch = 25.4 mm
35
