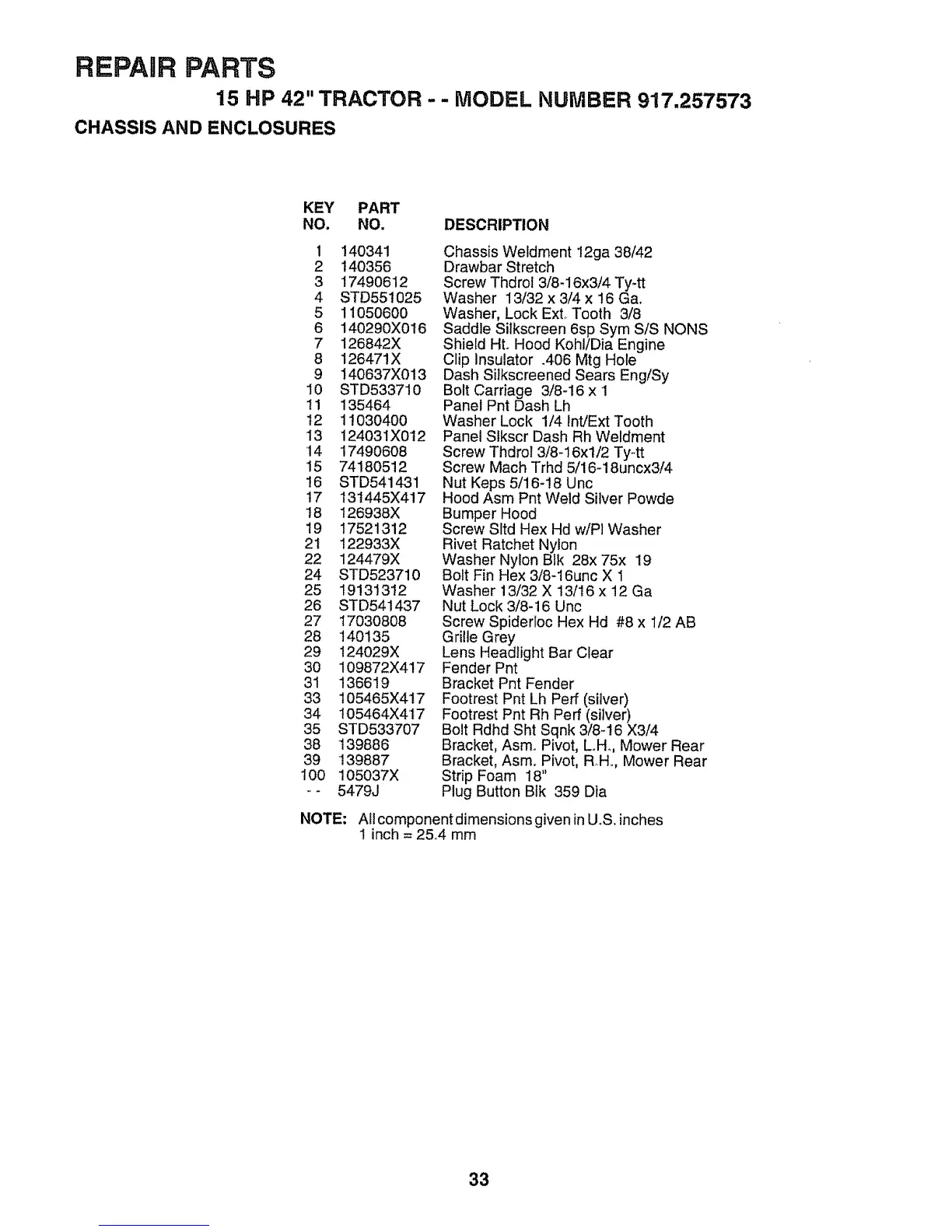

Craftsman 917.257573 - Page 33

REPAIR PARTS
15 HP 42" TRACTOR - - MODEL NUMBER 917,257573
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 140341
2 140356
3 17490612
4 STD551025
5 11050600
6 140290X0t6
7 126842X
8 126471X
9 140637X013
10 STD533710
11 135464
12 11030400
13 12403IX012
14 1749O6O8
15 74180512
16 STD541431
17 131445X417
18 126938X
19 17521312
21 122933X
22 124479X
24 STD523710
25 19131312
26 STD541437
27 17030808
28 140135
29 !24029X
30 109872X417
31 136619
33 105465X417
34 105464X417
35 STD533707
38 139886
39 139887
100 105037X
-- 5479J
Chassis Weldment 12ga 38/42
Drawbar Stretch
Screw Thdrol 3/8-16x3/4 Ty-tt
Washer 13/32 x 3/4 x 16 Gao
Washer, Lock Ext..Tooth 3/8
Saddle Sitkscreen 6sp Sym S/S NONS
Shield HL Hood Kohl/Dia Engine
Clip Insulator n406 Mtg Hole
Dash Siikscreened Sears Eng/Sy
Bolt Carriage 3/8-16 x 1
Panel Pnt Dash Lh
Washer Lock 1/4 IntiExt Tooth
Panel Slkscr Dash Rh Weldment
Screw Thdrol 3/8-16xl/2 Ty-tt
Screw Mach Trhd 5/16-18uncx3/4
Nut Keps 5/16-18 Unc
Hood Asm Pnt Weld Sliver Powde
Bumper Hood
Screw Sltd Hex Hd wiPt Washer
Rivet Ratchet Nylon
Washer Nylon BIk 28x 75x 19
Bolt Fin Hex 3/8-I6unc X 1
Washer 13/32 X 13/16 x 12 Ga
Nut Lock 3/8-16 Unc
Screw Spiderloc Hex Hd #8 x 1/2 AB
Grille Grey
Lens Headlight Bar Clear
Fender Pnt
Bracket Pnt Fender
Footrest Pnt Lh Peff (silver)
Footrest Pnt Rh Perf (silver)
Bolt Rdhd Sht Sqnk 3/8-16 X3/4
Bracket, Asm. Pivot, L.H., Mower Rear
Bracket, Asm. Pivot, RHo, Mower Rear
Strip Foam 18"
Plug Button Blk 359 Dia
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
