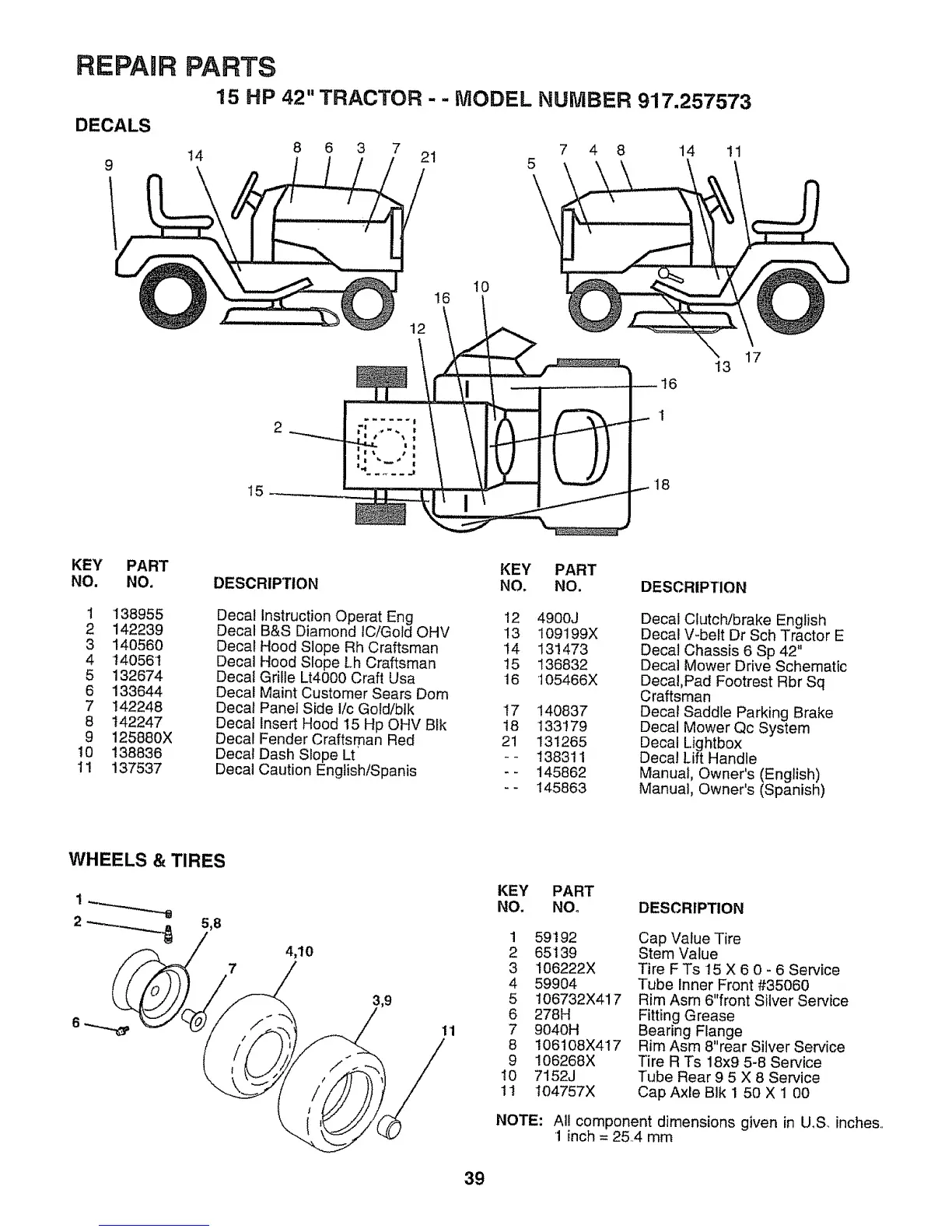

Craftsman 917.257573 - REPAIR PARTS - DECALS; REPAIR PARTS - WHEELS & TIRES

REPAIR
DECALS
9
PARTS
15 HP 42" TRACTOR - - MODEL NUMBER 917,257573
8 6 3 7 7 4 8 14 11
14 21 5
10
16
t5
18
13
17
KEY PART
NO. NO.
1 138955
2 142239
3 14O560
4 14056I
5 132674
6 133644
7 142248
8 142247
9 125880X
t0 138836
1! 137537
KEY PART
DESCRIPTION NO, NO.
Decal instruction Operat Eng
Decal B&S Diamond IC!Gold OHV
Decal Hood Slope Rh Craftsman
Decal Hood Slope Lh Craftsman
Decal Grille Lt4000 Craft Usa
Decal Maint Customer Sears Dom
Decal Panel Side I/c Gotd/b]k
Decal Insert Hood 15 Hp OHV Blk
Decal Fender Craftsman Red
Decal Dash Slope Lt
Decal Caution EngtishiSpanis
12 4900J
13 109199X
14 131473
15 136832
16 t05466X
17 140837
18 133179
21 131265
-- 138311
-- 145862
-- 145863
DESCRIPTION
Decal Clutch/brake English
Decal V-belt Dr Sch Tractor E
Decal Chassis 6 Sp 42"
Decal Mower Drive Schematic
Decal,Pad Footrest Rbr Sq
Craftsman
Decal Saddle Parking Brake
Decal Mower Qc System
Decal Lightbox
Decal Lift Handle
Manual, Owner's (English)
Manual, Owner's (Spanish)
4,10
11
KEY PART
NO. NO. DESCRIPTION
1 59192
2 65139
3 106222X
4 59904
5 106732X417
6 278H
7 9040H
8 106108X4t7
9 106268X
10 7152J
11 104757X
NOTE:
Cap Value Tire
Stem Value
Tire F Ts 15 X 6 0 - 6 Service
Tube Inner Front #35060
Rim Asm 6"front Silver Service
Fitting Grease
Bearing Flange
Rim Asm 8"rear Silver Service
Tire R Ts 18x9 5-8 Service
Tube Rear 9 5 X 8 Service
Cap Axle Blk 1 50 X 1 00
All component dimensions given in U.S. inches..
1 inch = 25.4 mm
39
