Craftsman 917.257573 - HARDWARE PACK CONTENTS

"::::': :: :'!!I!'I'!!'I' !I! I ! I 'I!'IIL"I II IIL L'!L ILl" , ,!ii !L I I , !

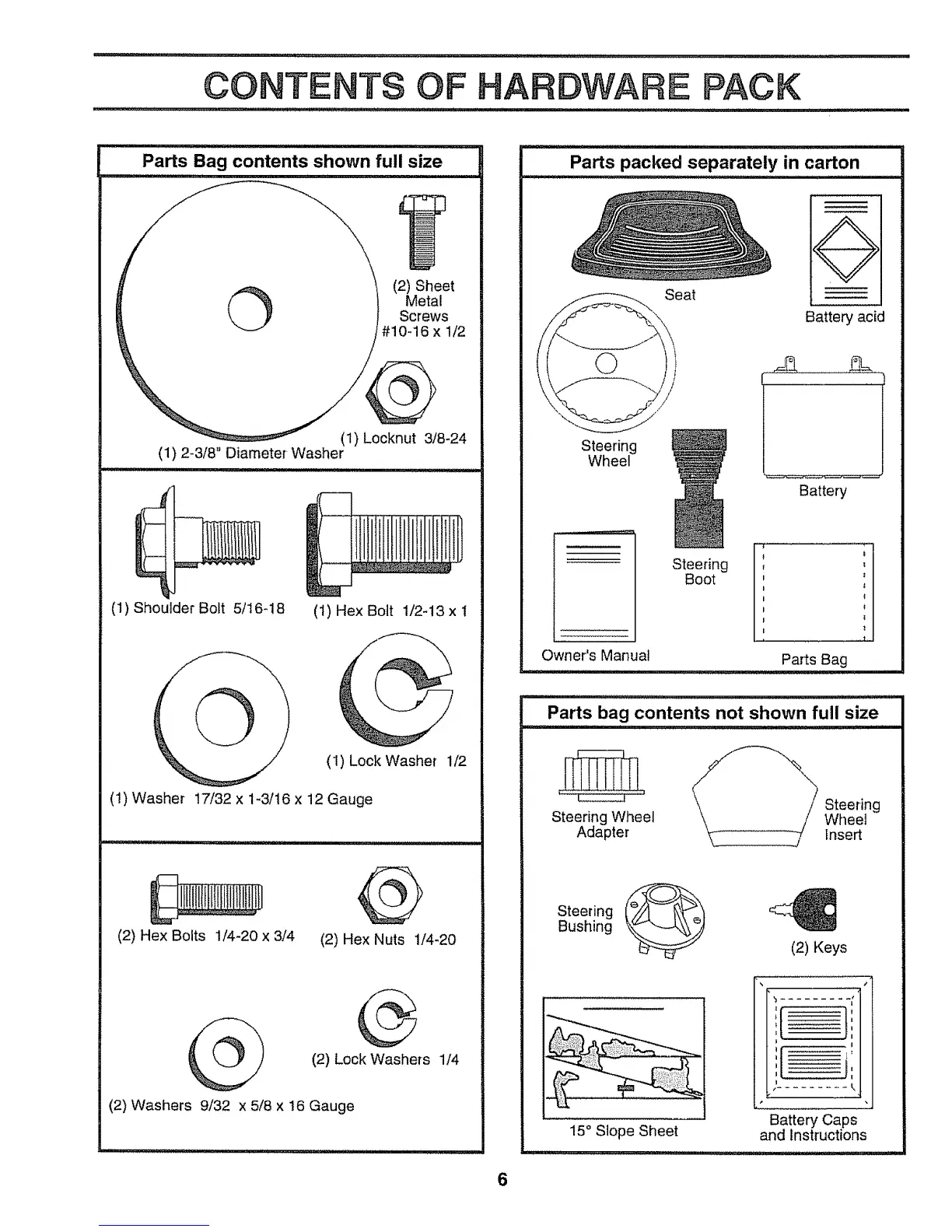

CONTENTS OF HARDWARE PACK
Parts Bag contents shown full size
(2) Sheet
Metal
Screws
#10-16 x 1/2
(1) Locknut 3/8-24
(1) 2-3/8" Diameter Washer
(1) Shoulder Bolt 5/16-18 (t) Hex Bolt 1/2-13 x 1
(1) Lock Washer 1/2
(1) Washer !7/32 x 1-3/16 x 12 Gauge
(2) Hex Bolts 1/4-20 x 3/4
@
(2) Hex Nuts 1/4-20
(2) Lock Washers 1/4
(2) Washers 9/32 x 5/8 x 16 Gauge
Parts packed separately in carton
Seat
Steering
Boot
Battery acid
Steering
Wheel
Owner's Manual
Battery
....j
.... ,
Parts Bag
Parts bag contents not shown full size
Steering Wheel
Adapter
Steering
Wheel
Insert
Steering (@
Bushing
15° Slope Sheet
(2) Keys
m
_ f
i
,'......... k
J •
Battery Caps
and instructions
6
