OPERATION
u, ii,l,llll ,i ii i .................. ................

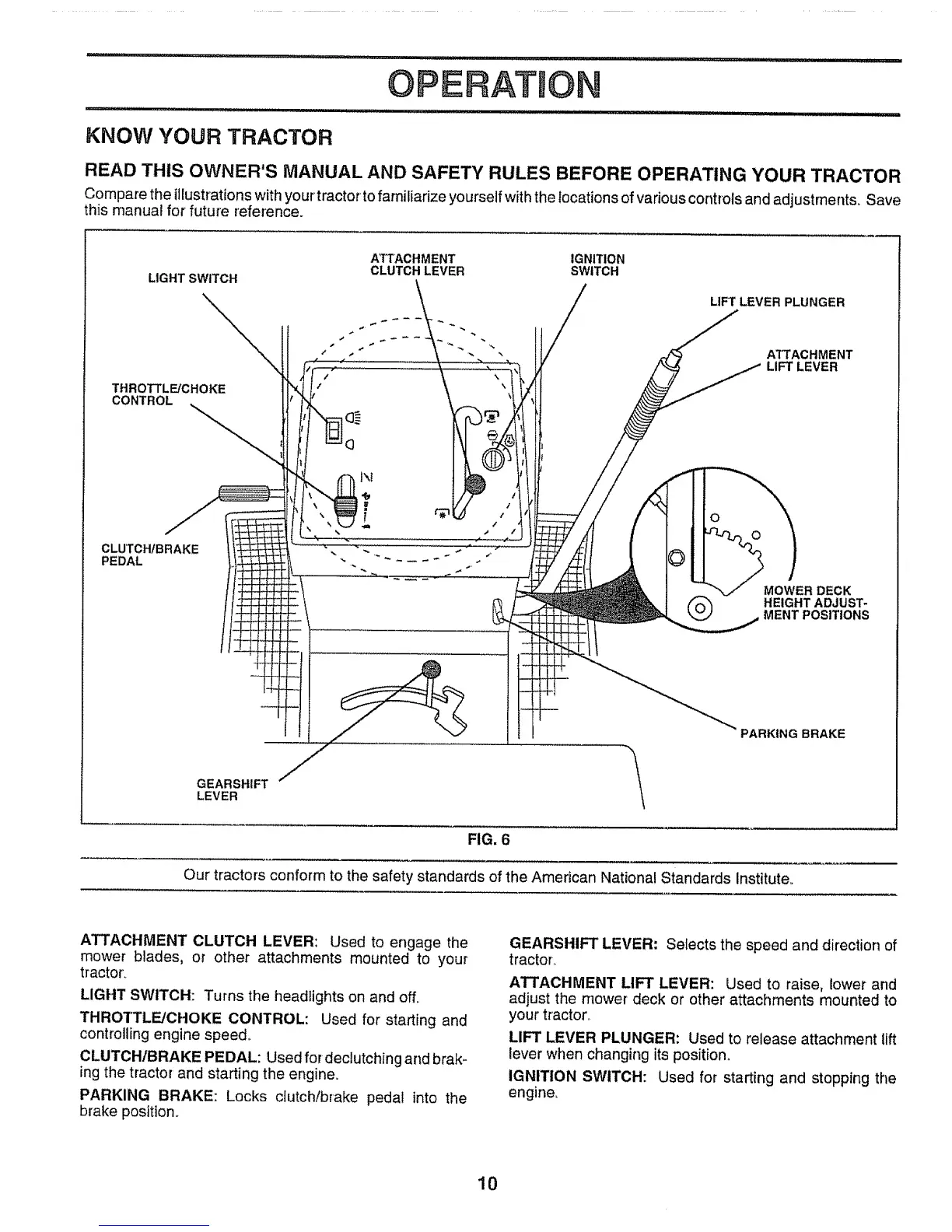

KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrations with your tractor tofamiliarize yourself with the locations of various controls and adjustments° Save
this manual for future reference.
LIGHT SWITCH
THROTTLE/CHOKE
CONTROL
CLUTCHIBRAKE
PEDAL
ATTACHMENT IGNITION
CLUTCH LEVER SWITCH
LIFT LEVER PLUNGER
ATTACHMENT
LIFT LEVER
o
MOWER DECK
HEIGHT ADJUST-
MENT POSITIONS
GEARSHIFT j _1
LEVER
PARKING BRAKE
FIG. 6
Our tractors conform to the safety standards of the American National Standards Institute°
ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades, or other attachments mounted to your
tractor_
LIGHT SWITCH: Turns the headlights on and off_
THROTTLE/CHOKE CONTROL: Used for starting and
controlling engine speed°
CLUTCH/BRAKE PEDAL: Used for declutching and brak-
ing the tractor and starting the engine.
PARKING BRAKE: Locks clutch/brake pedal into the
brake position.
GEARSHIFT LEVER: Selects the speed and direction of
tractor.
ATTACHMENT LIFT LEVER: Used to raise, lower and
adjust the mower deck or other attachments mounted to
your tractor°
LIFT LEVER PLUNGER: Used to release attachment lift
lever' when changing its position,
IGNITION SWITCH: Used for starting and stopping the
engine_
