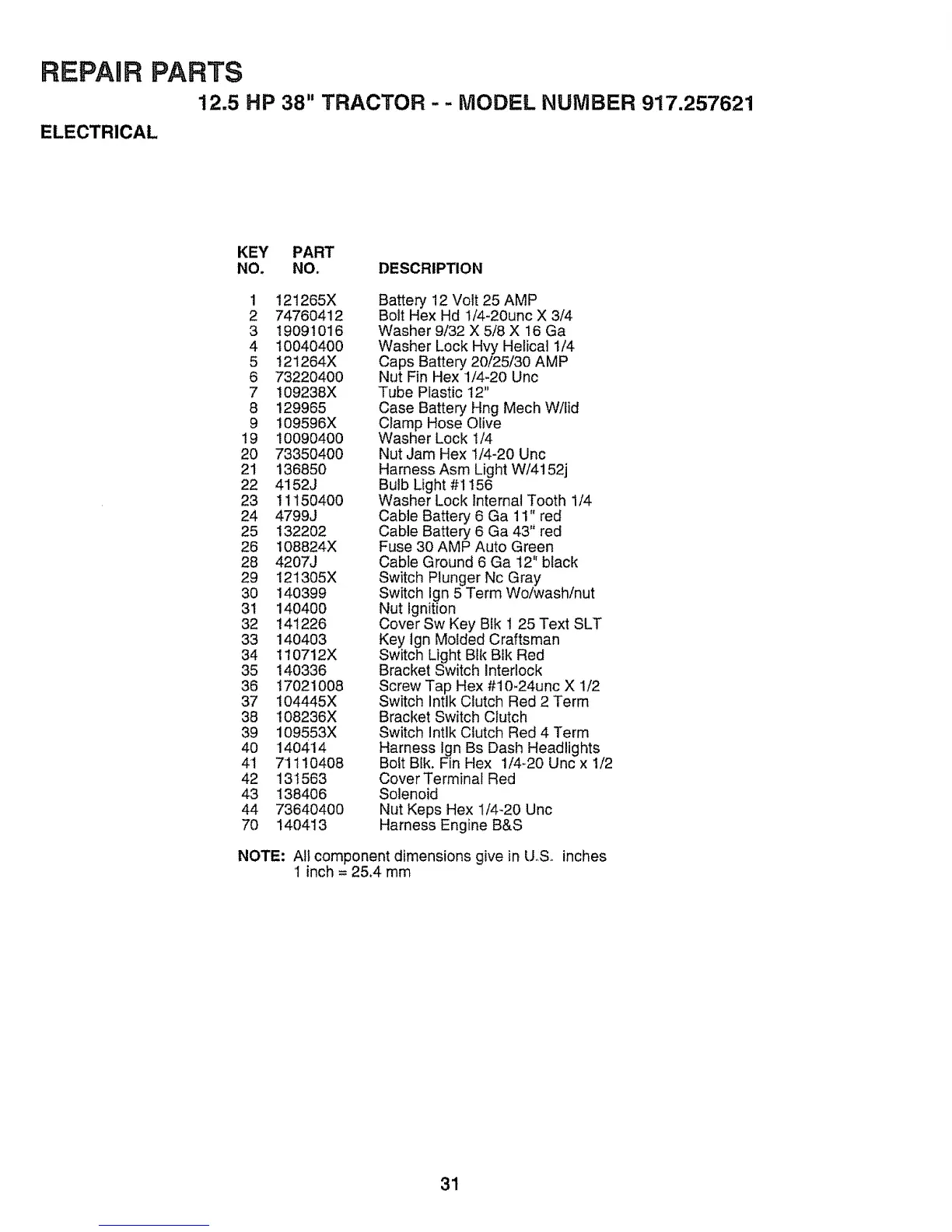

REPAIR PARTS
12.5 HP 38" TRACTOR-- MODEL NUMBER 917.257621
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 121265X
2 74760412
3 19091016
4 10040400
5 t21264X
6 73220400
7 109238X
8 129965
9 109596X
19 10090400
20 73350400
21 136850
22 4152J
23 11150400
24 4799J
25 132202
26 108824X
28 4207J
29 121305X
30 140399
31 140400
32 141226
33 140403
34 110712X
35 140336
36 17021008
37 104445X
38 108236X
39 109553X
40 140414
41 71110408
42 13I563
43 138406
44 73640400
70 140413
Battery 12 Volt 25 AMP
Bolt Hex Hd 1/4-20unc X 3/4
Washer 9/32 X 5/8 X 16 Ga
Washer Lock Hvy Helical 1/4
Caps Battery 20/25/30 AMP
Nut Fin Hex 1/4-20 Unc
Tube Plastic 12"
Case Battery Hng Mech VV/tId
Clamp Hose Olive
Washer Lock 1/4
Nut Jam Hex 1/4-20 Unc
Harness Asm Light W/4152j
Bulb Light #1156
Washer Lock internal Tooth 1/4
Cable Battery 6 Ga 11" red
Cable Batter'_,/6 Ga 43" red
Fuse 30 AMP Auto Green
Cable Ground 6 Ga t2" black
Switch Plunger Nc Gray
Switch Ign 5 Term Wo/wash/nut
Nut Ignition
Cover Sw Key Blk 1 25 Text SLT
Key Ign Molded Craftsman
Switch Light Blk Bik Red
Bracket Switch Interlock
Screw Tap Hex #10-24unc X 1/2
Switch Intlk Clutch Red 2 Term
Bracket Switch Clutch
Switch Intlk Clutch Red 4 Term
Harness Ign Bs Dash Headlights
Bolt Blk. Fin Hex 1/4-20 Unc x 1/2
Cover Terminal Red
Solenoid
Nut Keps Hex I/4-20 Unc
Harness Engine B&S
NOTE: All component dimensions give in U.S. inches
'I inch = 25.4 mm
