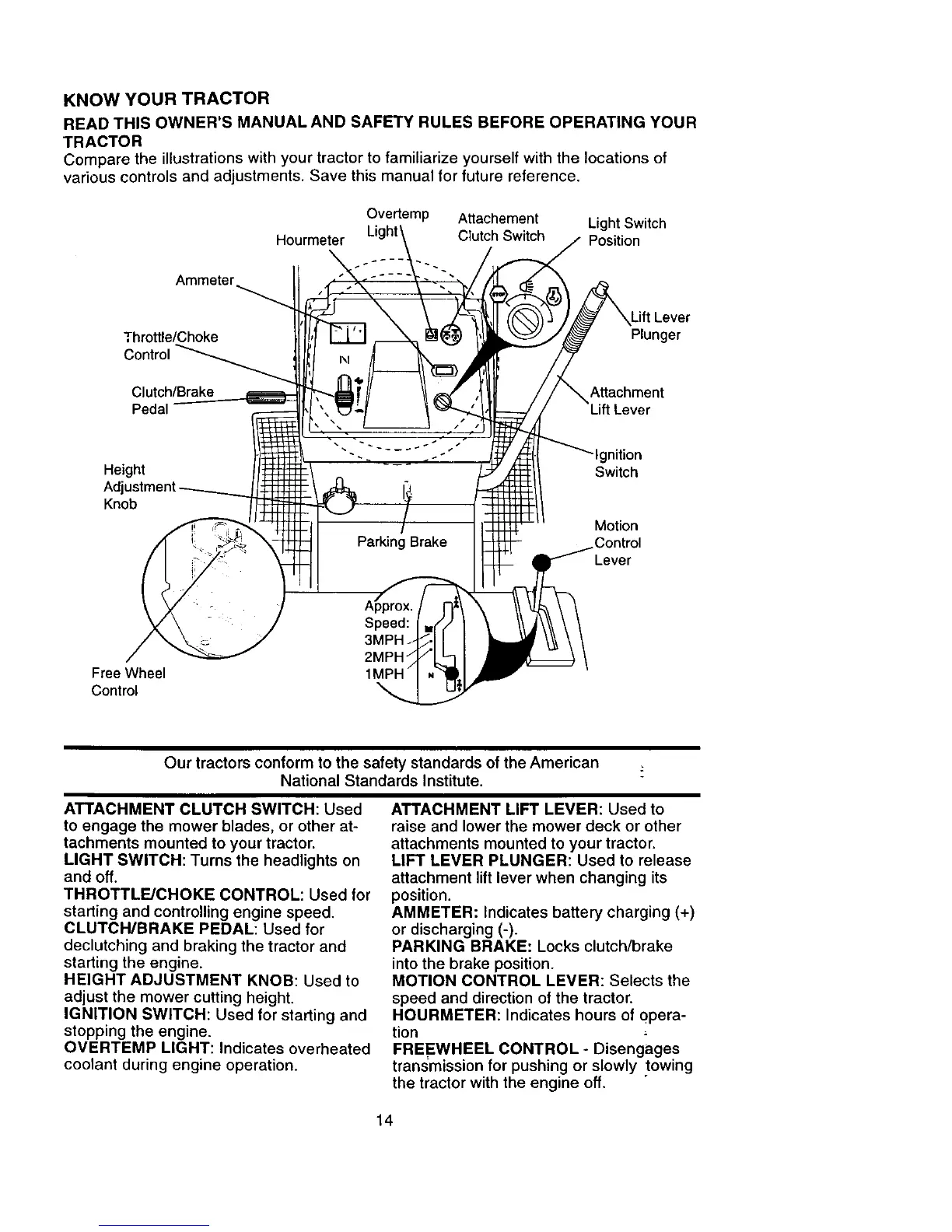

KNOW YOUR TRACTOR
READTHISOWNER'SMANUALAND SAFETYRULESBEFOREOPERATINGYOUR
TRACTOR
Compare the illustrations with your tractor to familiarize yourself with the locations of
various controls and adjustments. Save this manual for future reference.
Ammeter
Overtemp Attachement Light Switch
Hourmeter Clutch Switch Position
Throttle/Choke
Control
.ift Lever
Plunger
Clutch/Brake Attachment
Pedal
Height
Knob
gnition
Switch
Motion
Control
Lever
Free Wheel
Control
Our tractors conform to the safety standards of the American ;
National Standards Institute.
ATTACHMENT CLUTCH SWITCH: Used
to engage the mower blades, or other at-
tachments mounted to your tractor.
LIGHT SWITCH: Turns the headlights on
and off.
THROTTLE/CHOKE CONTROL: Used for
starting and controlling engine speed.
CLUTCH/BRAKE PEDAL: Used for
declutching and braking the tractor and
starting the engine.
HEIGHT ADJUSTMENT KNOB: Used to
adjust the mower cutting height.
IGNITION SWITCH: Used for starting and
stopping the engine.
OVERTEMP LIGHT: Indicates overheated
coolant during engine operation.
ATTACHMENT LIFT LEVER: Used to
raise and lower the mower deck or other
attachments mounted to your tractor.
LIFT LEVER PLUNGER: Used to release
attachment lift lever when changing its
position.
AMMETER: Indicates battery charging (+)
or discharging (-).
PARKING BRAKE: Locks clutch/brake
into the brake position.
MOTION CONTROL LEVER: Selects the
speed and direction of the tractor.
HOURMETER: Indicates hours of opera-
tion
FREEWHEEL CONTROL - Disengages
transmission for pushing or slowly towing
the tractor with the engine off.
