TOADJUSTTHROTTLECONTROL
CABLE
Thethrottlecontrolhasbeenpresetatthe
factory and adjustment should not be nec-
essary. Check adjustment as described
below before loosening cable. If adjust-
ment is necessary, proceed as follows:
• With engine not running, move throttle
control lever from slow to choke posi-
tion. Slowly move lever from choke to
fast position.
• Check to see if hole in speed control
lever and hole in base plate are aligned.
• If holes are not aligned, loosen cable
clamp screw and align the holes by
inserting a 6 mm dia. (15/64 in.) drill bit
through both holes.
• Pull throttle cable to remove slack and
tighten cable clamp screw. Remove drill
bit.
TO ADJUST CARBURETOR
The carburetor has been preset at the fac-
tory and adjustment should not be neces-
sary. A cap or stop plate is installed on the
mixture screws which does not allow
adjustment. If your engine does not run
properly due to suspected carburetor prob-
lems, take your tractor to an authorized
service center for repair or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed, overspeeding the
engine above the factory high speed set-
ting can be dangerous, if you think the
engine-governed high speed needs adjust-
ing, contact your nearest autherized ser-
vice center/department, which has proper
equipment and experience to make any
necessary adjustments.

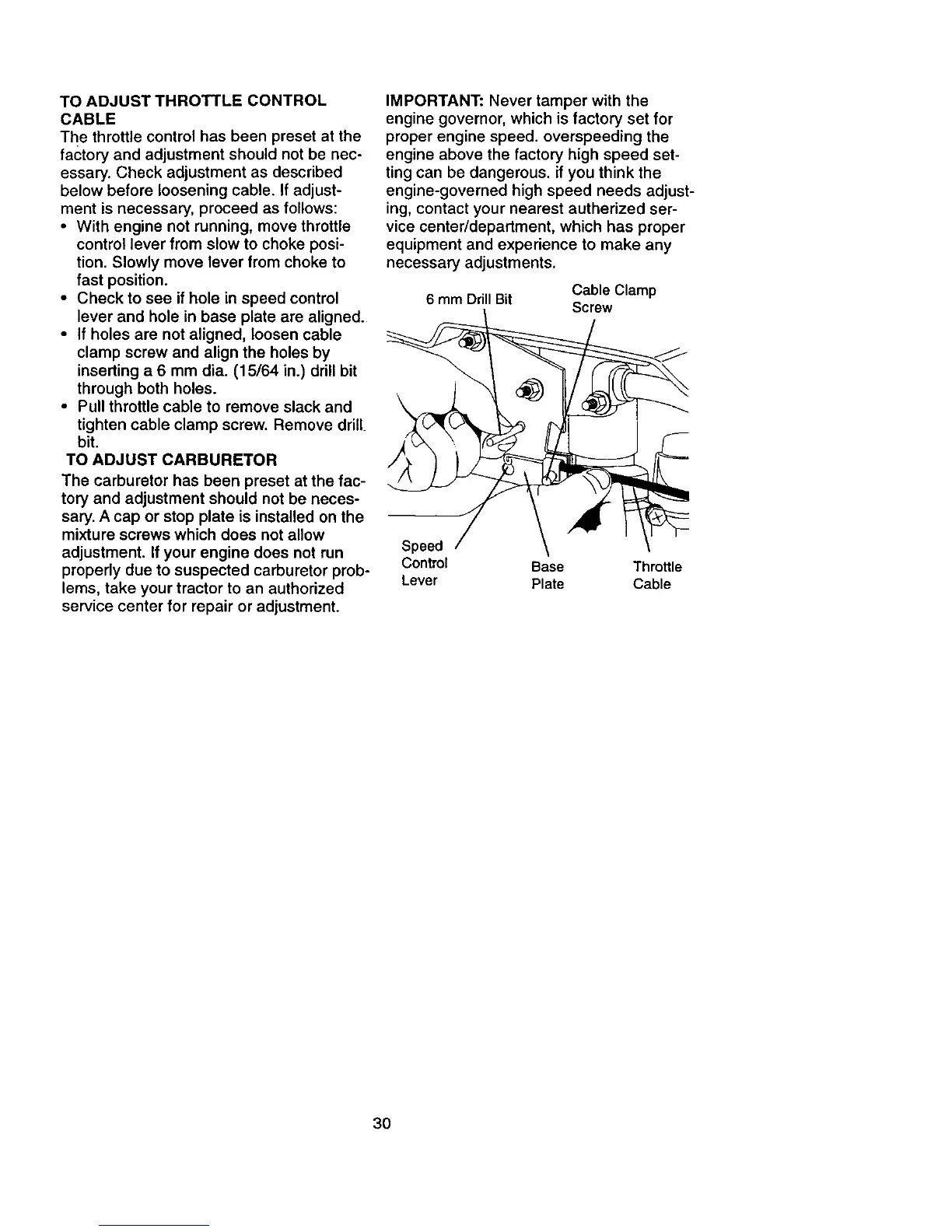

6 mm Drill Bit Cable Clamp
Screw
Speed
Control Base Throttle
Lever Plate Cable
