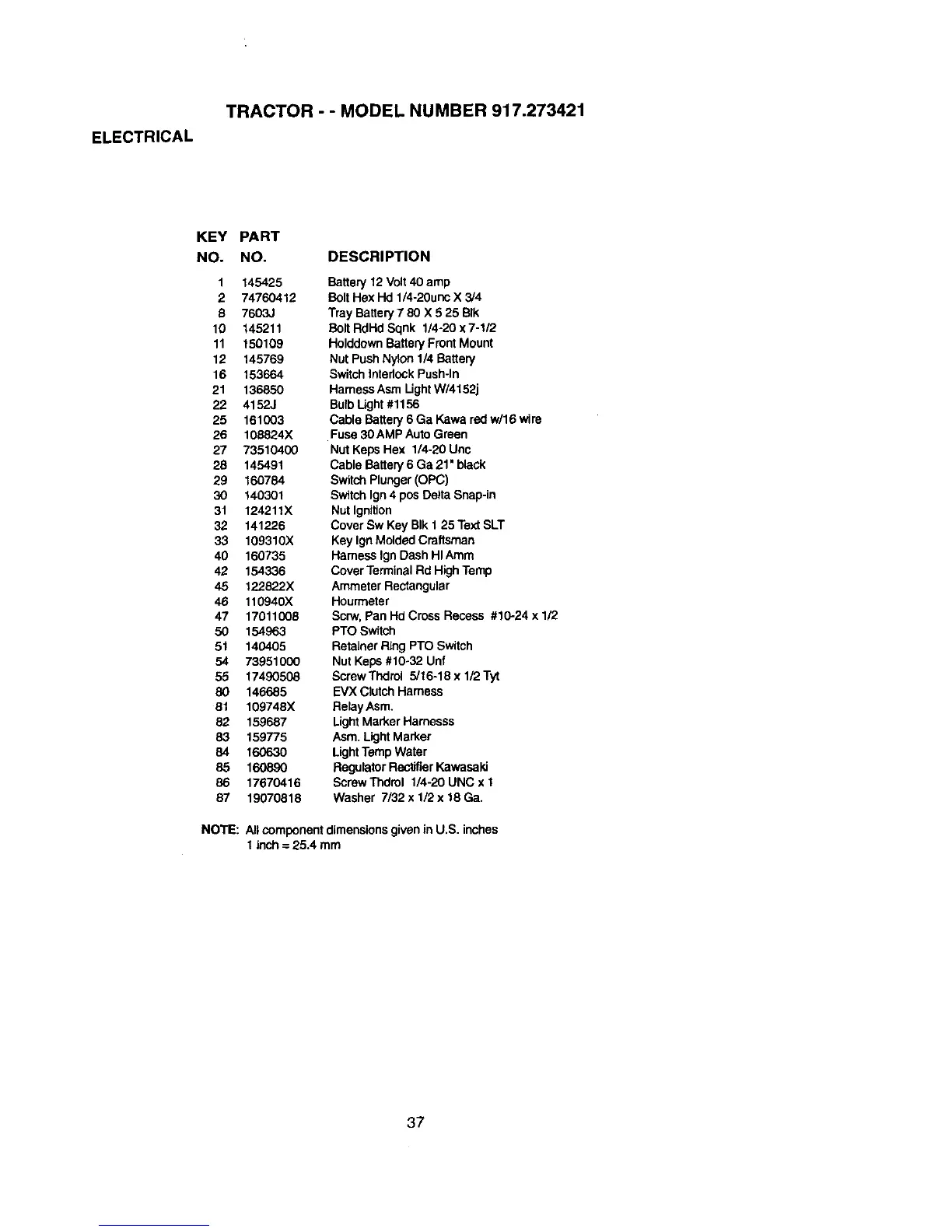

Craftsman 917.273421 - Page 37

ELECTRICAL
TRACTOR - - MODEL NUMBER 917.273421
KEY
NO.
1
2
6
10
11
12
16
21
22
25
26
27
2B
29
3O
31
32
33
40
42
45
46
47
5O
51
54
55
80
81
82
83
84
85
86
87
NOTE:
PART
NO. DESCRIPTION
145425
74760412
7603J
145211
150109
145769
153664
136850
4152J
161003
108824X
73510400
145491
160784
140301
124211X
141226
109310X
160735
154336
122822X
110940X
17011008
154963
140405
73951000
17490508
146685
109748X
159687
159775
160630
160890
17670416
19070818
Battery 12 Volt40 amp
Bolt Hex Hd 1/4-20unc X 3/4
Tray Battery 7 80 X 5 25 BIk
Bait RdHd Sqnk 1/4-20 x 7-1/2
HolddownBatteryFront Mount
Nut Push Nylon 1/4 Battery
SwitchIntadockPush-In
HamessAsm Ught W/4152j
BulbLight#1156
Cable Battery 6 Ga Kawa redw/16 wire
Fuse30 AMP AutoGreen
Nut Kaps Hex 1/4-20 Unc
Cable Battery 6 Ga 21• black
SwitchPlunger(OPC)
Switchign 4 pos Delta Snap-in
Nut Ignition
Cover Sw Key BIk 1 25 Text SLT
Key Ign MoldedCraftsman
Harness IgnDash HIAtom
CoverTerminalRd HighTemp
Ammeter Rectangular
Hourmeter
SCPN,Pan Hd Cross Recess #10-24 x 112
PTO Switch
RetainerRing PTO Switch
Nut Keps #10-32 Unf
ScrewThdrol 5/16-18 x 1/2 Tyt
EVX ClutchHamess
Relay Asm.
Light MarkerHamesss
Asm. Light Marker
LightTemp Water
Regulator RectWJerKawasaki
Screw Thdrol 1/4-20 UNC x I
Washer 7F32x 1/2 x 18 Ga.
All componentdimensionsgivenin U,S. inches
1 inch = 25.4 mm
