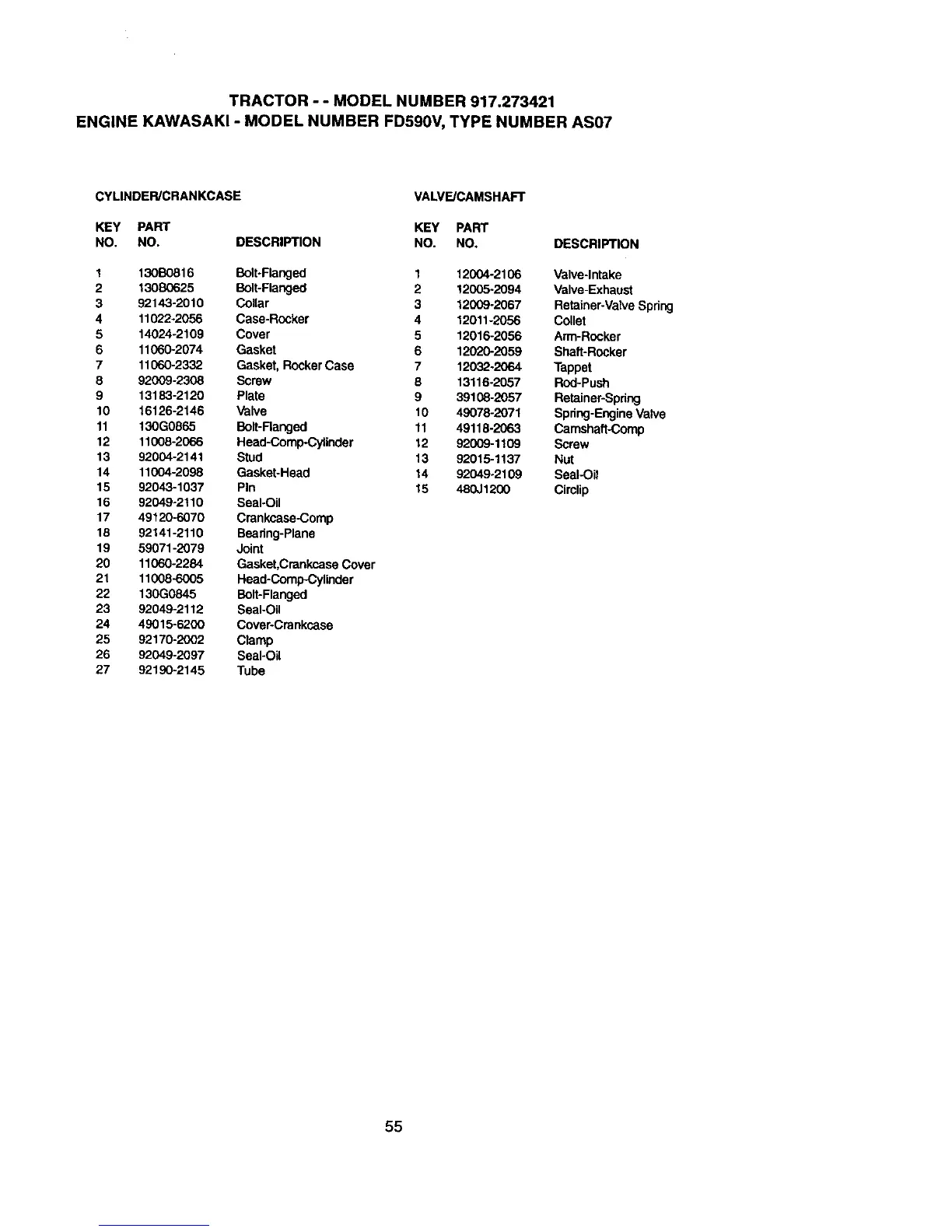

Craftsman 917.273421 - Page 55

TRACTOR- - MODEL NUMBER 917.273421
ENGINE KAWASAKI - MODEL NUMBER FD590V, TYPE NUMBER AS07
CYLINDER/CRANKCASE VALVE/CAMSHAFT
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 130B0816 Bolt.Flanged 1 12004-2106
2 130130625 Bolt-Flanged 2 12005-2094
3 92143-2010 Collar 3 12009-2067
4 11022-2056 Case-Rocker 4 12011-2056
5 14024-2109 Cover 5 12016-2056
6 11060-2074 Gasket 6 12020-2059
7 11060-2332 Gasket, RockerCase 7 12032-2064
8 92009-2308 Screw 8 13116-2057
9 13183-2120 Plate 9 39108-2057
10 16126-2146 Valve 10 49078-2071
11 130G0865 Bolt-Flanged 11 49118-2063
12 11008-2066 Head-Comp.Cylinder 12 92009-1109
13 92004-2141 Stud 13 92015-1137
14 11004-2098 Gasket-Head 14 92049-2109
15 92043-1037 Pin 15 480J1200
16 92049-2110 Seal-Oil
17 49120-6070 Crankcase-Comp
18 92141-2110 Bearing-Plane
19 59071-2079 Joint
20 11060-2284 Gasket,Crankcase Cover
21 11008-6005 Head-comp-Cylinder
22 130G0845 Bolt-Flanged
23 92049-2112 Seal-Oil
24 49015-6200 Cover-Crankcase
25 92170-2002 Clamp
26 92049-2097 Seal-Oil
27 92190-2145 Tube
DESCRIPTION
Valve-Intake
Valve-Exhaust
Retainer-ValveSpring
Collet
Arm-Rocker
Shaft-Rocker
Tappet
Rod-Push
Retainer-Spring
Spring-EngineValve
Camshaft-Comp
Screw
Nut
Seal-Oil
Circlip
55
