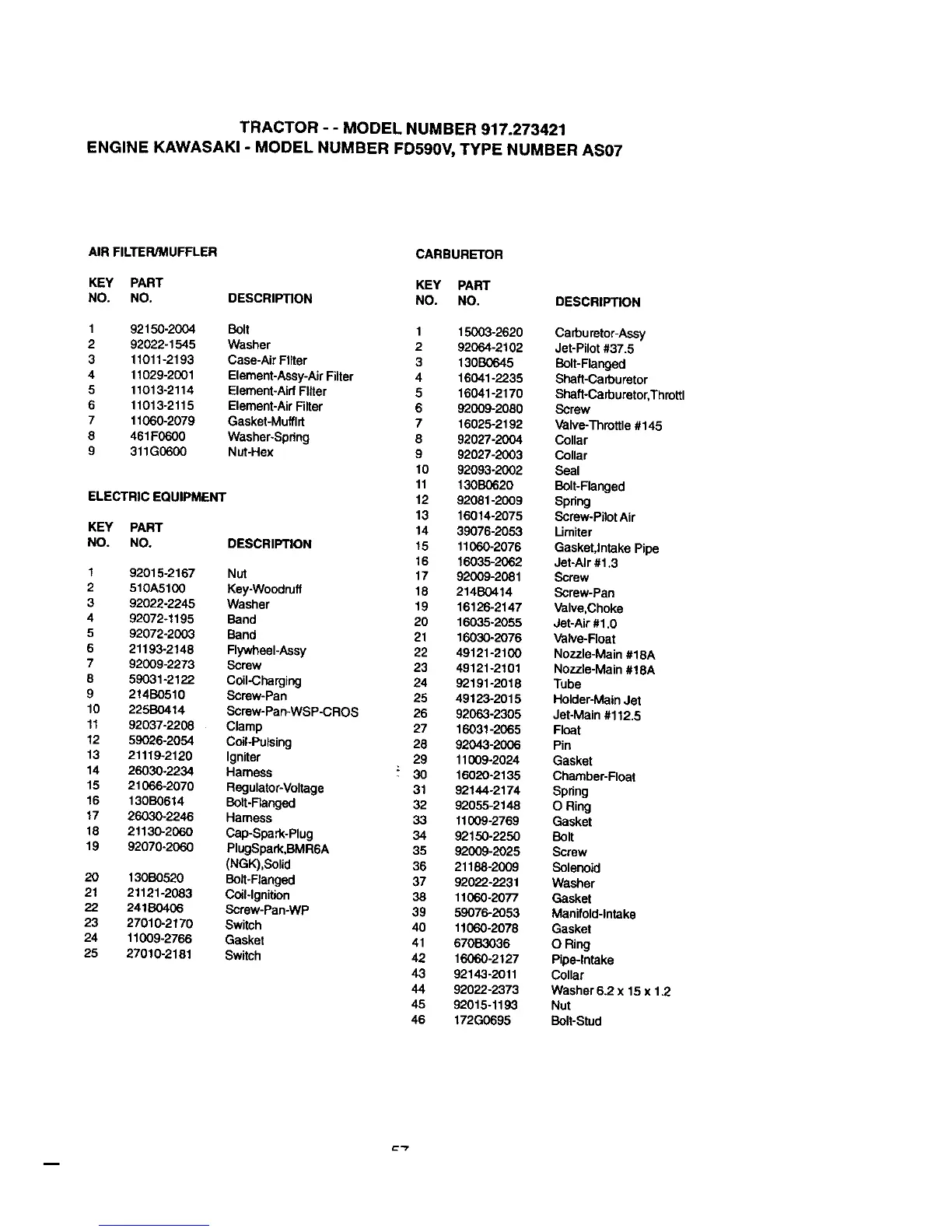

Craftsman 917.273421 - Page 57

TRACTOR- - MODEL NUMBER 917.273421
ENGINE KAWASAKI - MODEL NUMBER FD590V, TYPE NUMBER AS07
AIR FILTER/MUFFLER
CARBURETOR
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 92150-2004 Bolt
2 92022-1545 Washer
3 11011-2193 Case-Air Filter
4 11029-2001 Elament-Assy-AirFilter
5 11013-2114 Element-AirfFilter
6 11013-2115 Element-AirFUter
7 11060-2079 Gasket-Mufflrt
8 461F0600 Washer-Sprfng
9 311G0600 Nut-Hex
ELECTRIC EQUIPMENT
DESCRIPTION
KEY PART
NO. NO.
1 92015-2167 Nut
2 510A5100 Key-Woodruff
3 92022-2245 Washer
4 92072-1195 Band
5 92072-2003 Bond
6 21193-2148 FlywheeI-Assy
7 92009-2273 Screw
6 59031-2122 Coil-Charging
9 214B0510 Screw-Pan
10 225B0414 Screw-Pan-WSP-CROS
11 92037-2208 Clamp
12 59026-2054 Coil-Pulsing
13 21119-2120 Igniter
14 26030-2234 Harness
15 21066-2070 Regulator-Voltage
16 130B0614 Bolt-Ranged
17 26030-2246 Hamess
18 21130-2060 Cap-Spa,k-Plug
19 92070-2060 PlugSpark,BMR6A
(NGK),BOlid
20 130B0520 Bolt-Flanged
21 21121-2083 Coil-Ignition
22 241B0406 Screw-Pan-WP
23 27010-2170 Switch
24 11009-2766 Gasket
25 27010-2181 Switch
1 15003-2620 Carburetor-Assy
2 92064-2102 Jet-Pilot #37.5
3 130B0645 Bolt-Flanged
4 16041-2235 Shaft-Carburetor
5 16041-2170 Shaft-Carburetor, Throttl
6 92009-2080 Screw
7 16025-2192 Valve-Throttle#145
8 92027-2004 Collar
9 92027-2003 Collar
10 92093-2002 Seal
11 130B0620 Bolt-Flaeged
12 92081-2009 Spring
13 16014-2075 Borew-Pilot Air
14 39076-2053 Umitar
15 11060-2076 Gasket,intake Pipe
16 16035-2062 Jet-Air #1.3
17 92009-2081 Screw
18 214130414 Screw-Pan
19 16126-2147 Valve,Choke
20 16035-2055 Jet-Air #1.0
21 16030-2076 Valve-Float
22 49121-2100 Nozzle-Main #18A
23 49121-2101 Nozzle-Main #18A
24 92191-2018 Tube
25 49123-2015 Holder-Main Jet
26 92063-2305 Jet-Main #112.5
27 16031-2065 Float
28 92043-2006 Pin
29 11009-2024 Gasket
: 30 16020-2135 Chamber-Float
31 92144-2174 Spring
32 92055-2148 O Ring
33 11009-2769 Gasket
34 92150-2250 Bolt
35 92009-2025 Screw
36 21186-2009 Solenoid
37 92022-2231 Washer
38 11060-2077 Gasket
39 59076-2053 Manifold-Intake
40 11060-2078 Gasket
41 670B3036 O Ring
42 16060-2127 Pipe-Intake
43 92143-2011 Collar
44 92022-2373 Washer 6.2 x 15 x 1.2
45 92015-1193 Nut
46 172G0695 Bolt-Stud
