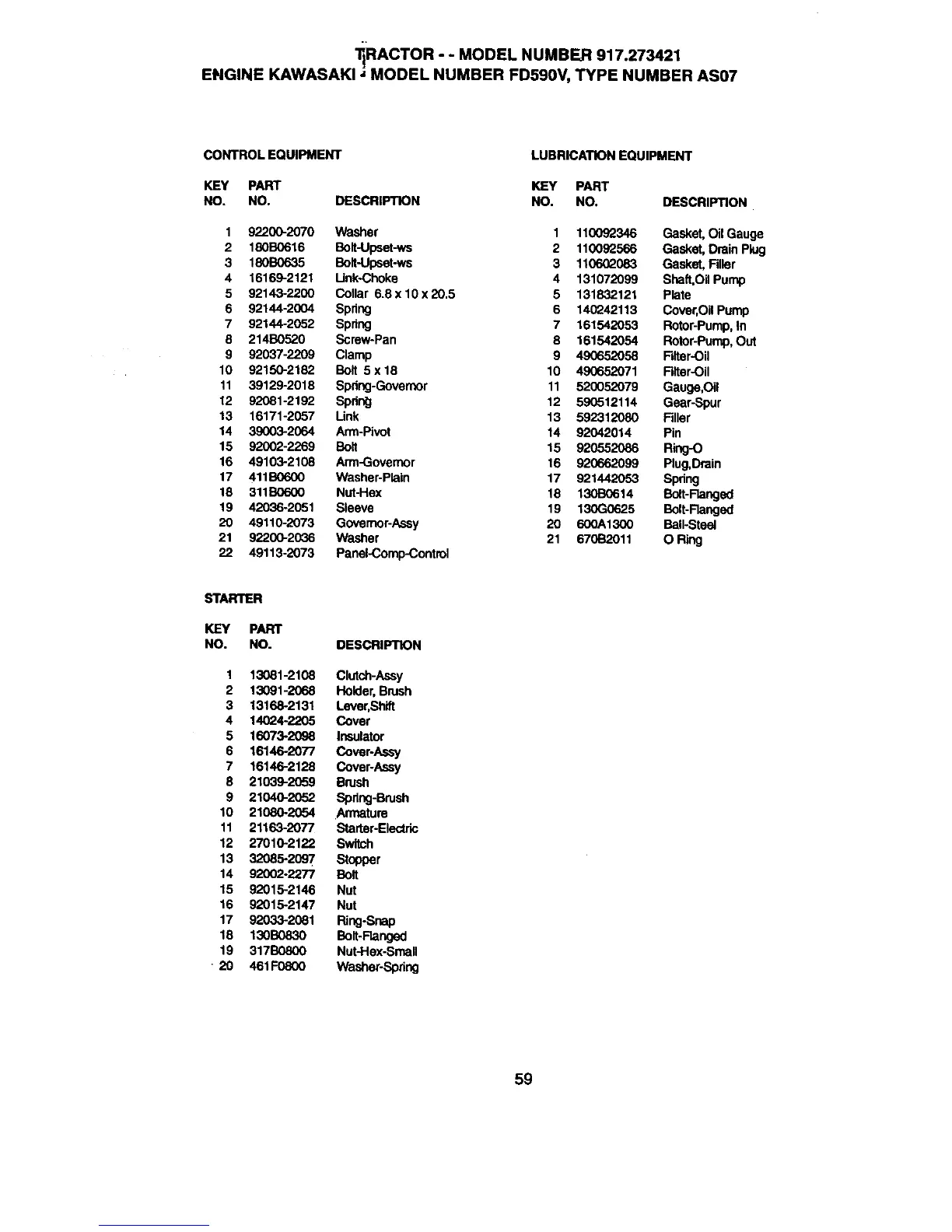

Craftsman 917.273421 - Page 59

;iRACTOR - - NUMBER 917.273421
MODEL
ENGINE KAWASAKI ; MODEL NUMBER FD590V, TYPE NUMBER AS07
CONTROL EQUIPMENT LUBRICATION EQUIPMENT
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 92200-2070 Washer 1 110092346
2 180B0616 Bolt-Upset-ws 2 110092566
3 180B0635 Bolt-Upset-ws 3 1106_2083
4 16169-2121 Unk-Choke 4 131072099
5 92143-2200 Collar 6.8 x 10 x 20.5 5 131832121
6 92144-2004 Spdng 6 140242113
7 92144-2052 Spring 7 161542053
8 214B0520 Screw-Pan 8 161542054
9 92037-2209 Clamp 9 490652058
10 92150-2182 Bolt 5x18 10 490652071
11 39129-2018 Spring-Governor 11 520052079
12 92081-2192 Spdn_ 12 590512114
13 16171-2057 Unk 13 592312080
14 39003-2064 Arm-Pivot 14 92042014
15 92002-2269 Bolt 15 920552086
16 49103-2108 Arm-Governor 16 920662099
17 411B0600 Washer-Plain 17 921442053
18 311B0600 Nut-Hex 18 130B0614
19 4L:_)36-2051 Sleeve 19 130G0625
20 49110-2073 Governor-Assy 20 600A1300
21 92200-2036 Washer 21 670B2011
22 49113-2073 PaneI-Comp-Control
DESCRIPTION
Gasket, Oil Gauge
Gasket, Drain Ping
Gasket, Filler
Shaft.Oil Pump
Plate
Cover,Oil Pump
Rotor-Pump,In
Rotor-Pump,Out
Filter-Oil
Filter-Oil
Gauge,Oil
Gear-Spur
Filler
Pin
Ring-O
Plug,Drein
Spdng
Bolt-Flanged
Bolt-Ranged
BalI-Steet
O Ring
STARTER
KEY PART
NO. NO.
DESCRIPTION
1 13081-2108 Clutch-Assy
2 13091-2068 Holder, Brash
3 13168-2131 Lever,Shift
4 14024-2205 Cover
5 16073-2098 Insulator
6 16146-2077 Cover-Assy
7 16146-2128 Cover-Assy
8 21039-2059 Brush
9 21040-2052 Spring-Brush
10 21080-2054 Armature
11 21163-2077 Starter-Electric
12 27010-2122 Switch
13 32085-2097 Stopper
14 92002-2277 Bolt
15 92015-2146 NUt
16 92015-2147 Nut
17 92033-2081 Ring-Snap
18 130B0830 Bolt-Flanged
19 317B0800 Nut-Hex-Small
• 20 461F0800 Washer-Spring
59
