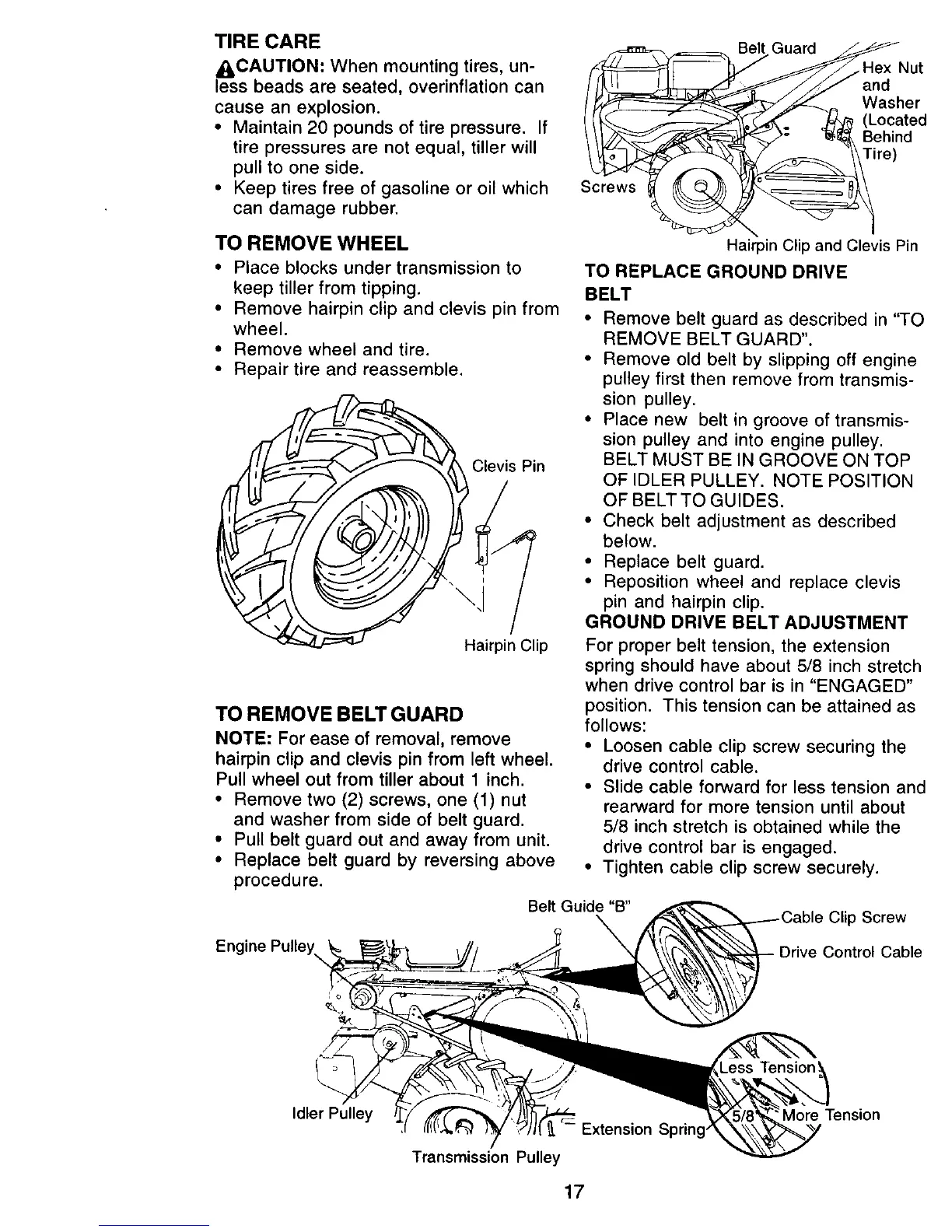

TIRE CARE
_CAUTION: When mounting tires, un-
less beads are seated, overinflation can
cause an explosion.
• Maintain 20 pounds of tire pressure. If
tire pressures are not equal, tiller will
pull to one side.
• Keep tires free of gasoline or oil which
can damage rubber.
Screws
Belt Guard
Nut
and
Washer
(Located
Behind
Tire)
TO REMOVE WHEEL
• Place blocks under transmission to
keep tiller from tipping.
• Remove hairpin clip and clevis pin from
wheel.
• Remove wheel and tire.
• Repair tire and reassemble.
Clevis Pin
Hairpin Clip
TO REMOVE BELT GUARD
NOTE: For ease of removal, remove
hairpin clip and clevis pin from left wheel.
Pull wheel out from tiller about 1 inch.
• Remove two (2) screws, one (1) nut
and washer from side of belt guard.
• Pull belt guard out and away from unit.
• Replace belt guard by reversing above
procedure.
Hairpin Clip and Clevis Pin
TO REPLACE GROUND DRIVE
BELT
• Remove belt guard as described in "TO
REMOVE BELT GUARD".
• Remove old belt by slipping off engine
pulley first then remove from transmis-
sion pulley.
• Place new belt in groove of transmis-
sion pulley and into engine pulley.
BELT MUST BE IN GROOVE ON TOP
OF IDLER PULLEY. NOTE POSITION
OF BELT TO GUIDES.
• Check belt adjustment as described
below.
• Replace belt guard.
• Reposition wheel and replace clevis
pin and hairpin clip.
GROUND DRIVE BELT ADJUSTMENT
For proper belt tension, the extension
spring should have about 5/8 inch stretch
when drive control bar is in "ENGAGED"
position. This tension can be attained as
follows:
• Loosen cable clip screw securing the
drive control cable.
• Slide cable forward for less tension and
rearward for more tension until about
5/8 inch stretch is obtained while the
drive control bar is engaged.
• Tighten cable clip screw securely.
Belt Guide "B"
ip Screw
Engine Pulley., Control Cable
Idler Pulley
_- Extension Spring"
Transmission Pulley
Tension
17
