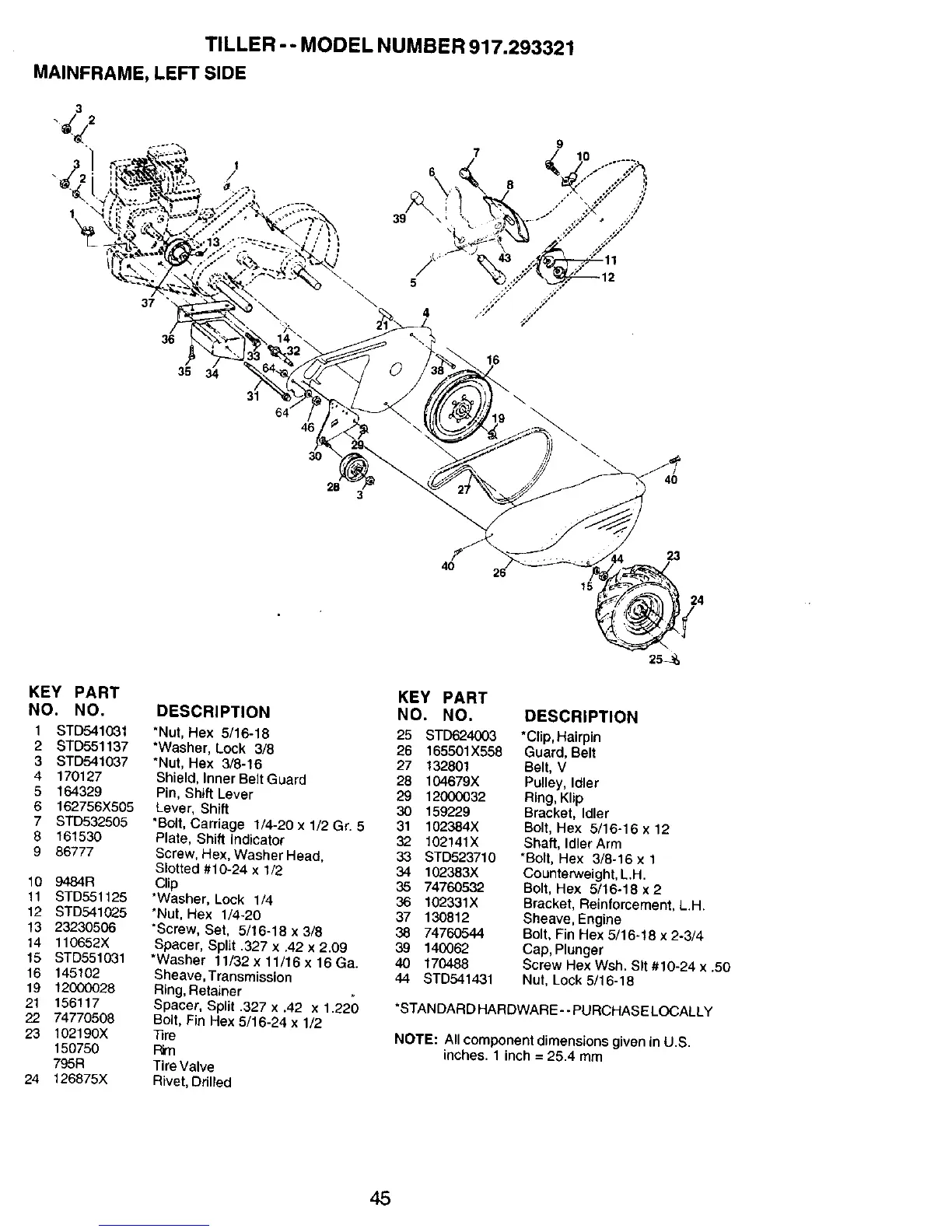

TILLER -- MODEL NUMBER 917.293321
MAINFRAME, LEFT SIDE
3
1\
37
36
35
31
46
3O
28
16
19
4O
23
24
25_
KEY PART
NO. NO.
1 STD541031
2 STD551137
3 STD541037
4 170127
5 164329
6 162756X505
7 STD532505
8 161530
9 86777
10 9484R
11 STD551125
12 STD541025
13 23230506
14 110652X
15 STD551031
16 145102
19 12000028
21 156117
22 74770508
23 102190X
150750
795R
24 126875X
DESCRIPTION
*Nut, Hex 5/16-18
*Washer, Lock 3/8
"Nut, Hex 3/8-16
Shield, Inner Belt Guard
Pin, Shift Lever
Lever, Shift
*Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift indicator
Screw, Hex, Washer Head,
Slotted #10-24 x 1/2
Clip
*Washer, Lock 1/4
*Nut, Hex 1/4-20
*Screw, Set, 5/16-18 x 3/8
Spacer, Split .327 x .42 x 2.09
*Washer 11/32 x 11/16 x 16 Ga.
Sheave, Transmission
Ring, Retainer
Spacer, Sp_it .327 x .42 x 1.22()
Bolt, Fin Hex 5/16-24 x 1/2
_m
F_rn
Tire Valve
Rivet, Ddlled
KEY PART
NO. NO. DESCRIPTION
25 STD624003 *Clip, Hairpin
26 165501X558 Guard, Belt
27 132801 Belt, V
28 104679X Pulley, Idler
29 12000032 Ring, Klip
30 159229 Bracket, Idler
31 102384X Bolt, Hex 5/16-16 x 12
32 102141X Shaft, IdlerArm
33 STD623710 *Bolt, Hex 3/8-16 x 1
34 102383X Counterweight, L.H.
35 74760532 Bolt, Hex 5/16-18x2
36 102331X Bracket, Reinforcement, L.H.
37 130812 Sheave, Engine
38 74760544 Bolt, Fin Hex 5/1648 x 2-3/4
39 140062 Cap, Plunger
40 170488 Screw Hex Wsh. S)t #10-24 x .50
44 STD541431 Nut, Lock 5/16-18
*STANDARDHARDWARE--PURCHASELOCALLY
NOTE: All componentdimensions given in U.S.
inches. 1 inch= 25.4 mm
45
