Craftsman 917.293321 - Page 27

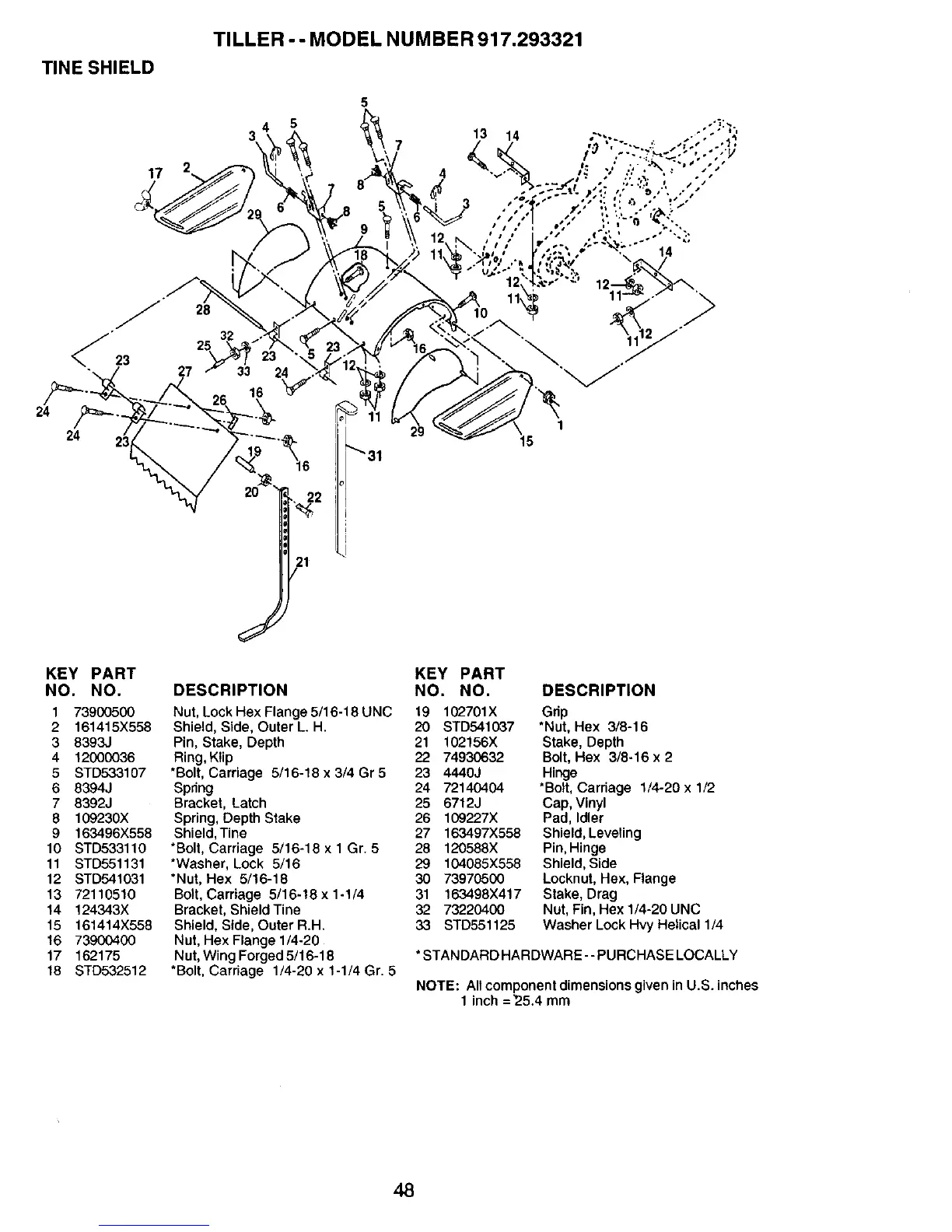

TINE SHIELD
17
TILLER - - MODEL NUMBER 917.293321
7
5
7
13 14
3
24
24
.42
21
_31
1
18
KEY PART
NO. NO.
1 73900500
2 161415X558
3 8393J
4 12000036
5 STD533107
6 8394J
7 8392J
8 109230X
9 163496X558
10 STD533110
11 STD551131
12 STD541031
13 72110510
14 124343X
15 161414X558
16 73900400
17 162175
1B STD532512
J
DESCRIPTION
KEY PART
NO. NO.
Nut, Look Hex Flange 5/16-18 UNC 19 102701X
Shield, Side, Outer L.H. 20 STD541037
Pin, Stake, Depth 21 102156X
Ring, Klip 22 74930632
*Bolt, Carriage 5/16-18 x 3/4 Gr 5 23 4440J
Spring 24 72140404
Bracket, Latch 25 6712J
Spring, Depth Stake 26 109227X
Shield, Tine 27 163497X558
*Bolt, Carriage 5/16-18 x 1 Gr. 5 28 120588X
*Washer, Lock 5/16 29 104085X558
*Nut, Hex 5/16-18 30 73970500
Bolt, Carriage 5/16-18 x 1-1/4 31 163498X417
Bracket, Shield Tine 32 73220400
Shield, Side, Outer R.H. 33 STD551125
Nut, Hex Flange 1/4-20
Nut, Wing Forged 5/16-18
*Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
DESCRIPTION
Gdp
*Nut, Hex 3/8-16
Stake, Depth
Bolt, Hex 3/8-16 x 2
Hinge
*Bolt, Cardage 1/4-20 x 1/2
Cap, Vinyl
Pad, Idler
Shield, Leveling
Pin, Hinge
Shield, Side
Locknut, Hex, Flange
Stake, Drag
Nut, Fin, Hex 1/4-20 UNC
Washer Lock Hvy Helical 1/4
*STANDARDHARDWARE--PURCHASELOCALLY
NOTE: All component dimensions given in U.S. inches
1 inch ='25.4 mm
