Craftsman 917.370921 - Page 41

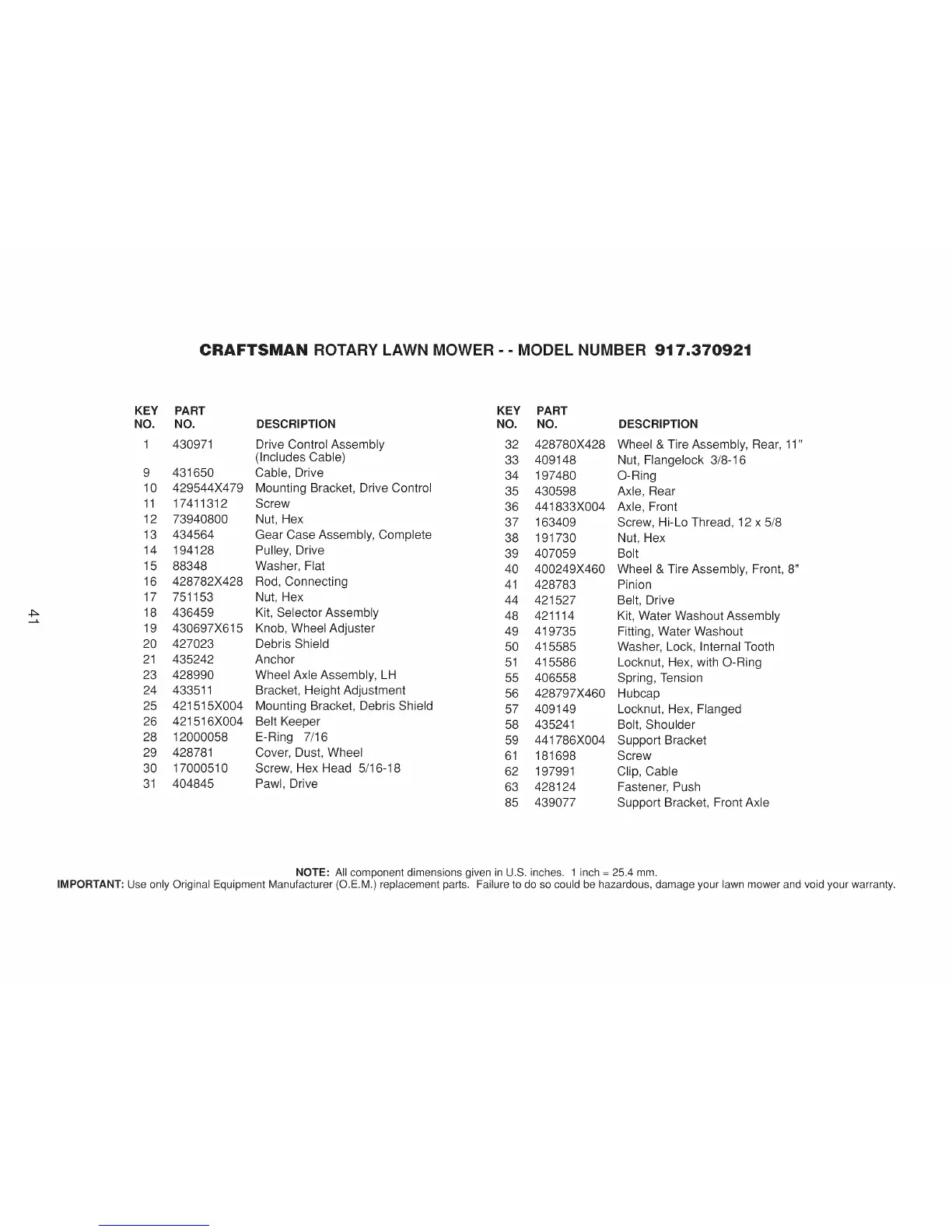

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917,370921
KEY PART KEY PART
NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON
1 430971 Drive Control Assembly 32 428780X428 Wheel & Tire Assembly, Rear, 11"
(Includes Cable) 33 409148 Nut, Flangelock 3/8-16
9 431650 Cable, Drive 34 197480 O-Ring
10 429544X479 Mounting Bracket, Drive Control 35 430598 Axle, Rear
11 17411312 Screw 36 441833X004 Axle, Front
12 73940800 Nut, Hex 37 163409 Screw, Hi-Lo Thread, 12 x 5/8
13 434564 Gear Case Assembly, Complete 38 191730 Nut, Hex
14 194128 Pulley, Drive 39 407059 Bolt
15 88348 Washer, Flat 40 400249X460 Wheel & Tire Assembly, Front, 8"
16 428782X428 Rod, Connecting 41 428783 Pinion
17 751153 Nut, Hex 44 421527 Belt, Drive
18 436459 Kit, Selector Assembly 48 421114 Kit, Water Washout Assembly
19 430697X615 Knob, WheelAdjuster 49 419735 Fitting, Water Washout
20 427023 Debris Shield 50 415585 Washer, Lock, Internal Tooth
21 435242 Anchor 51 415586 Locknut, Hex, with O-Ring
23 428990 Wheel Axle Assembly, LH 55 406558 Spring, Tension
24 433511 Bracket, Height Adjustment 56 428797X460 Hubcap
25 421515X004 Mounting Bracket, Debris Shield 57 409149 Locknut, Hex, Flanged
26 421516X004 Belt Keeper 58 435241 Bolt, Shoulder
28 12000058 E-Ring 7/16 59 441786X004 Support Bracket
29 428781 Cover, Dust, Wheel 61 181698 Screw
30 17000510 Screw, Hex Head 5/16-18 62 197991 Clip, Cable
31 404845 Pawl, Drive 63 428124 Fastener, Push
85 439077 Support Bracket, Front Axle
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
UVIPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
