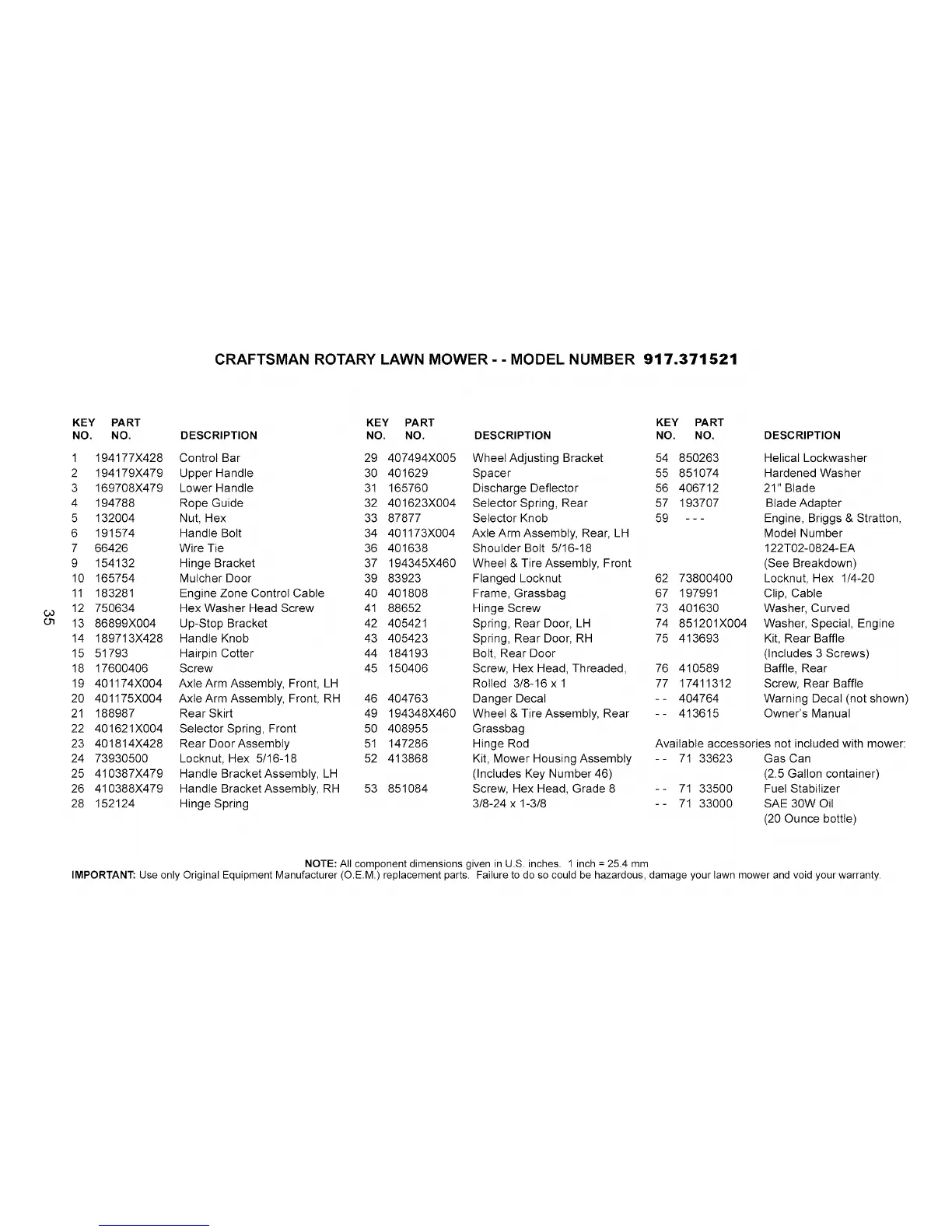

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.371521
LO
0"I
KEY PART
NO. NO.
1 194177X428
2 194179X479
3 169708X479
4 194788
5 132004
6 191574
7 66426
9 154132
10 165754
11 183281
12 750634
13 86899X004
14 189713X428
15 51793
18 17600406
19 401174X004
20 401175X004
21 188987
22 401621X004
23 401814X428
24 73930500
25 410387X479
26 410388X479
28 152124
KEY PART KEY PART
DESCRIPTION NO, NO. DESCRIPTION NO. NO.
Control Bar 29 407494X005 WheetAdjusting Bracket 54 850263
Upper Handle 30 401629 Spacer 55 851074
Lower Handle 31 165760 Discharge Deflector 56 406712
Rope Guide 32 401623X004 Selector Spring, Rear 57 193707
Nut, Hex 33 87877 Selector Knob 59 - - -
Handle Bolt 34 401173X004 Axle Arm Assembly, Rear, LH
Wire Tie 36 401638 Shoulder Bolt 5/16-18
Hinge Bracket 37 194345X460 Wheel & Tire Assembly, Front
MulcherDoor 39 83923 Flanged Locknut 62 73800400
Engine Zone Control Cable 40 401808 Frame, Grassbag 67 197991
Hex Washer Head Screw 41 88652 Hinge Screw 73 401630
Up-Stop Bracket 42 405421 Spring, Rear Door, LH 74 851201X004
Handle Knob 43 405423 Spring, Rear Door, RH 75 413693
Hairpin Cotter 44 184193 Bolt, Rear Door
Screw 45 150406 Screw, Hex Head, Threaded, 76 410589
Axle Arm Assembly, Front, LH Rolled 3/8-16 x 1 77 17411312
Axle Arm Assembly, Front, RH 46 404763 Danger Decal -- 404764
Rear Skirt 49 194348X460 Wheel & Tire Assembly, Rear -- 413615
Selector Spring, Front 50 408955 Grassbag
Rear Door Assembly 51 147286 Hinge Rod
Locknut, Hex 5/16-18 52 413868 Kit, Mower Housing Assembly
Handle Bracket Assembly, LH (Includes Key Number 46)
Handle Bracket Assembly, RH 53 851084 Screw, Hex Head, Grade 8
Hinge Spring 3/8-24 x 1-3/8
DESCRIPTION
Helical Lockwasher
Hardened Washer
21" Blade
Blade Adapter
Engine, Briggs & Stratton,
Model Number
122T02-0824-EA
(See Breakdown)
Locknut, Hex 1/4-20
Clip, Cable
Washer, Curved
Washer, Special, Engine
Kit, Rear Baffle
(Includes 3 Screws)
Baffle, Rear
Screw, Rear Baffle
Warning Decal (not shown)
Owner's Manual
Available accessories not included with mower:
-- 71 33623 Gas Can
(2.5 Gallon container)
-- 71 33500 Fuel Stabilizer
-- 71 33000 SAE 30W Oil
(20 Ounce bottle)
NOTE: All component dimensions given in U.S. inches. 1 inch = 25_4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.EM.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
