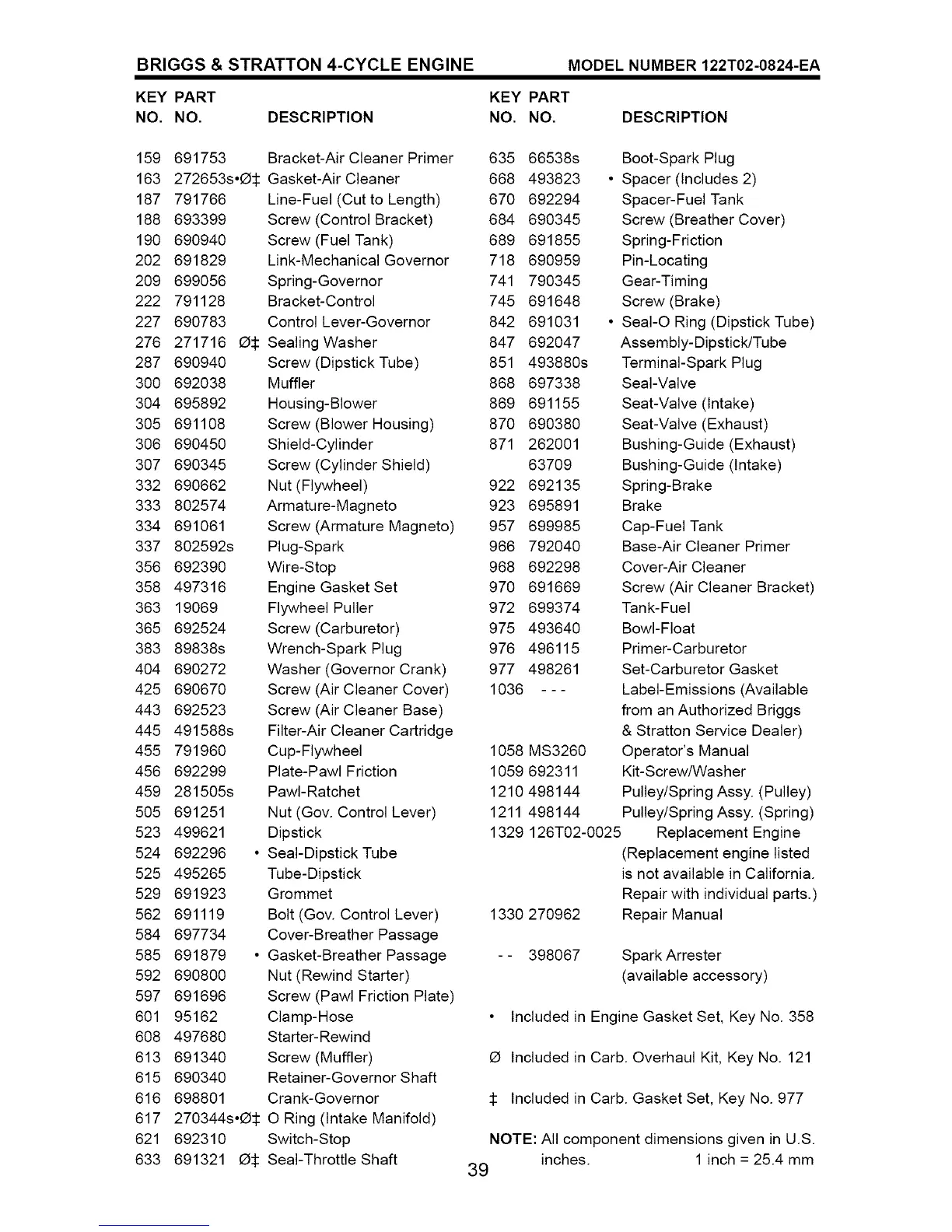

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 122T02-0824-EA
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
159 691753 Bracket-Air Cleaner Primer 635 66538s
163 272653soO$ Gasket-Air Cleaner 668 493823 •
187 791766 Line-Fuel (Cut to Length) 670 692294
188 693399 Screw (Control Bracket) 684 690345
190 690940 Screw (Fuel Tank) 689 691855
202 691829 Link-MechanicaIGovernor 718 690959
209 699056 Spring-Governor 741 790345
222 791128 Bracket-Control 745 691648
227 690783 Control Lever-Governor 842 691031 •
276 271716 O$ Sealing Washer 847 692047
287 690940 Screw (Dipstick Tube) 851 493880s
300 692038 Muffler 868 697338
304 695892 Housing-Blower 869 691155
305 691108 Screw (Blower Housing) 870 690380
306 690450 Shield-Cylinder 871 262001
307 690345 Screw (Cylinder Shield) 63709
332 690662 Nut(Flywheel) 922 692135
333 802574 Armature-Magneto 923 695891
334 691061 Screw (Armature Magneto) 957 699985
337 802592s Plug-Spark 966 792040
356 692390 Wire-Stop 968 692298
358 497316 Engine Gasket Set 970 691669
363 19069 Flywheel Puller 972 699374
365 692524 Screw(Carburetor) 975 493640
383 89838s Wrench-SparkPlug 976 496115
404 690272 Washer (Governor Crank) 977 498261
425 690670 Screw (Air Cleaner Cover) 1036 - - -
443 692523 Screw (Air Cleaner Base)
445 491588s Filter-Air Cleaner Cartridge
455 791960 Cup-Flywheel 1058 MS3260
456 692299 Plate-Pawl Friction 1059 692311
459 281505s PawI-Ratchet 1210 498144
505 691251 Nut (Gov. Control Lever) 1211 498144
523 499621 Dipstick
524 692296 • Seal-Dipstick Tube
525 495265 Tube-Dipstick
529 691923 Grommet
562 691119 Bolt (Gov. Control Lever)
584 697734 Cover-Breather Passage
585 691879 • Gasket-Breather Passage -- 398067
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
601 95162 Clamp-Hose
608 497680 Starter-Rewind
613 691340 Screw (Muffler)
615 690340 Retainer-Governor Shaft
616 698801 Crank-Governor
617 270344soO_ O Ring (Intake Manifold)
621 692310 Switch-Stop
633 691321 O$ Seal-Throttle Shaft
Boot-Spark Plug
Spacer (Includes 2)
Spacer-Fuel Tank
Screw (Breather Cover)
Spring-Friction
Pin-Locating
Gear-Timing
Screw (Brake)
SeaI-O Ring (Dipstick Tube)
Assembly-Dipstick/Tube
Terminal-Spark Plug
Seal-Valve
Seat-Valve (Intake)
Seat-Valve (Exhaust)
Bushing-Guide (Exhaust)
Bushing-Guide (Intake)
Spring-Brake
Brake
Cap-Fuel Tank
Base-Air Cleaner Primer
Cover-Air Cleaner
Screw (Air Cleaner Bracket)
Tank-Fuel
Bowl-Float
Primer-Carburetor
Set-Carburetor Gasket
Label-Emissions (Available
from an Authorized Briggs
& Stratton Service Dealer)
Operator's Manual
Kit-Screw/Washer
Pulley/Spring Assy. (Pulley)
Pulley/Spring Assy. (Spring)
1329 126T02-0025 Replacement Engine
(Replacement engine listed
is not available in California.
Repair with individual parts.)
1330 270962 Repair Manual
Spark Arrester
(available accessory)
• Included in Engine Gasket Set, Key No. 358
O Included in Carb. Overhaul Kit, Key No. 121
Included in Carb. Gasket Set, Key No. 977
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
