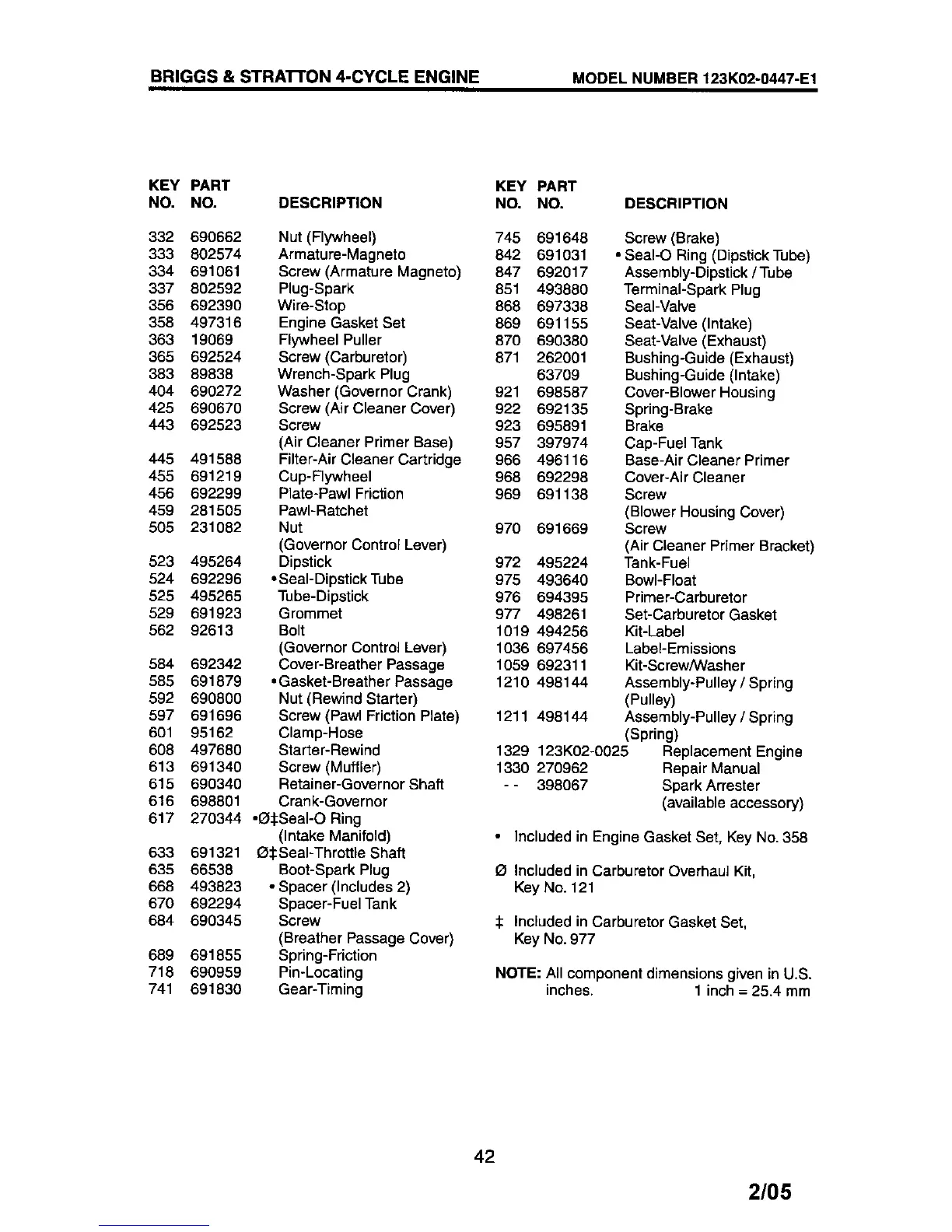

BRIGGS & STRA'n'ON 4-CYCLE ENGINE MODEL NUMBER 123K02-0447-E1
KEY PART
NO. NO.
DESCRIPTION
332 690662 Nut (Flywheel)
333 802574 Armature-Magneto
334 691061 Screw (Armature Magneto)
337 802592 Plug-Spark
356 692390 Wire-Stop
358 497316 Engine Gasket Set
363 19069 Flywheel Puller
365 692524 Screw (Carburetor)
383 89838 Wrench-Spark Plug
404 690272 Washer (Governor Crank)
425 690670 Screw (Air Cleaner Cover)
443 692523 Screw
(Air Cleaner Primer Base)
445 491588 Filter-Air Cleaner Cartridge
455 691219 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505 PawI-Ratchet
505 231082 Nut
(Governor Control Lever)
523 495264 Dipstick
524 692296 ,Seal-Dipstick Tube
525 495265 Tube-Dipstick
529 691923 Grommet
562 92613 Bolt
(Governor Control Lever)
584 692342 Cover-Breather Passage
585 691879 ,Gasket-Breather Passage
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
601 95162 Clamp-Hose
608 497680 Starter-Rewind
613 691340 Screw (Muffler)
615 690340 Retainer-Governor Shaft
616 698801 Crank-Governor
617 270344 °_:l:SeaI-O Ring
(Intake Manifold)
633 691321 I_:l:SeaI-Throttle Shaft
635 66538 Boot-Spark Plug
668 493823 •Spacer (Includes 2)
670 692294 Spacer-Fuel Tank
684 690345 Screw
(Breather Passage Cover)
689 691855 Spring-Friction
718 690959 Pin-Locating
741 691830 Gear-Timing
KEY PART
NO, NO. DESCRIPTION
745 691648 Screw (Brake)
842 691031 ° SeaI-O Ring (Dipstick Tube)
847 692017 Assembly-Dipstick / Tube
851 493880 Terminal-Spark Plug
868 697338 Seal-Valve
869 691155 Seat-Valve (Intake)
870 690380 Seat-Valve (Exhaust)
871 262001 Bushing-Guide (Exhaust)
63709 Bushing-Guide (Intake)
921 698587 Cover-Blower Housing
922 692135 Spring-Brake
923 695891 Brake
957 397974 Cap-Fuel Tank
966 496116 Base-Air Cleaner Primer
968 692298 Cover-Air Cleaner
969 691138 Screw
(Blower Housing Cover)
970 691669 Screw
(Air Cleaner Primer Bracket)
972 495224 Tank-Fuel
975 493640 Bowl-Float
976 694395 Primer-Carburetor
977 498261 Set-Carburetor Gasket
1019 494256 Kit-Label
1036 697456 Label-Emissions
1059 692311 Kit-Screw/Washer
1210 498144 Assembly-Pulley / Spring
(Pulley)
1211 498144 Assembly-Pulley / Spring
(Spring)
1329 123K02-0025 Replacement Engine
1330 270962 Repair Manual
-- 398067 SparkArrester
(available accessory)
• Included in Engine Gasket Set, Key No. 358
O Included in Carburetor Overhaul Kit,
Key No. 121
:1: Included in Carburetor Gasket Set,
Key No. 977
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
42
2/05
