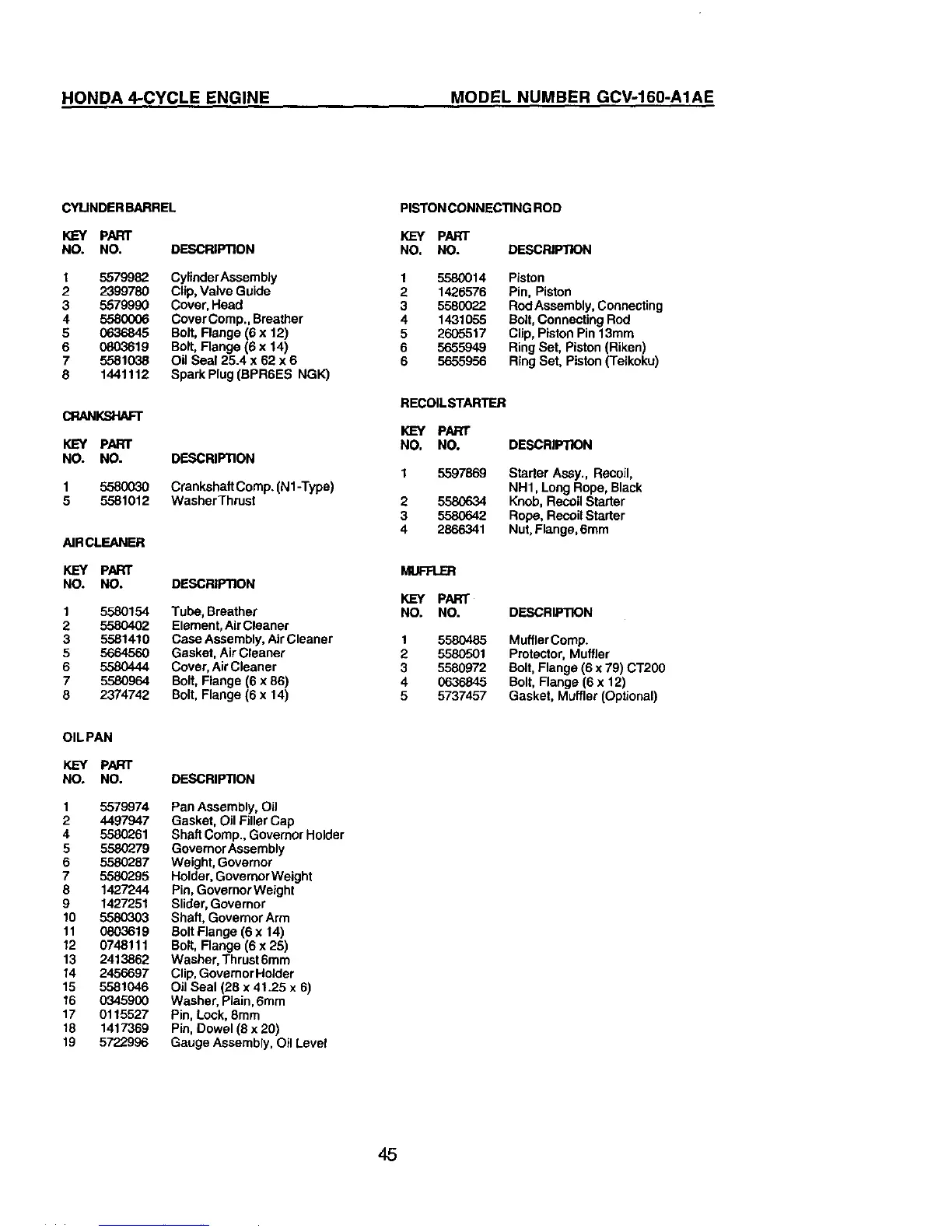

Craftsman 917.378521 - Page 45

HONDA 4-CYCLE ENGINE MODEL NUMBER GCV-160-AIAE
CYUNDERBARREL
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
7
8
5579982 CylinderAssembly
2399780 Clip, Valve Guide
5579990 Cover, Head
5580006 Cover Comp., Breather
0636845 Bolt,Flange (6 x 12)
0803619 Bolt,Flange (6 x 14)
5581038 Oil Seal 25.4 x 62 x 6
1441112 Spark Plug (BPR6ES NGK)
CRANKSHAFT
KEY PAR'r
NO. NO. DESCRIPTION
1 5580030 Crankshaft Comp. (N1-Type)
5 5581012 WasherThrust
_RCLEANER
KEY PART
NO. NO, DESCRIPTION
1 5580154 Tube, Breather
2 5580402 Element,Air Cleaner
3 5581410 Case Assembly, AirCleaner
5 5664560 Gasket, Air Cleaner
6 5580444 Cover,AirCleaner
7 5580964 Bolt, Flange (6 x 86)
8 2374742 Bolt, Flange (6 x 14)
PISTONCONNECTING ROD
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
6
5580014 Piston
1426576 Pin, Piston
5580022 RodAssembly,Connecting
1431055 Bolt,Connecting Rod
2605517 Clip, PistonPin 13mm
5655949 RingSet, Piston(Riken)
5655956 RingSet, Piston (Teikoku)
RECOILSTARTER
I_'Y PART
NO. NO. DESCRIPTION
2
3
4
5597869 Starter Assy., Recoil,
NH1, LongRope, Black
5580634 Knob, Recoil Starter
5580642 Rope, Recoil Starter
2866341 Nut,Flange, 6mm
MUFFLER
KEY PART
NO. NO. DESCRIPTION
1 5580485 MufflerComp.
2 5580501 Protector,Muffler
3 5580972 Bolt,Flange (6 x 79) CT20O
4 0636845 Bolt,Flange (6 x 12)
5 5737457 Gasket, Muffler(Optional)
OILPAN
KEY PAR'r
NO. NO. DESCRIPTION
1 5579974
2 4497947
4 5580261
5 5580279
6 5580287
7 5580295
8 1427244
9 1427251
10 558O3O3
11 0803619
12 0748111
13 2413862
14 2456697
15 5581046
16 0345900
17 0115527
18 1417369
19 5722996
Pan Assembly, Oil
Gasket, Oil Filler Cap
Shaft Comp., Governor Holder
Governor Assembly
Weight, Governor
Holder, Governor Weight
Pin, Governor Weight
Slider,Governor
Shaft, Governor Arm
Bolt Flange (6 x 14)
Bolt, Flange (6 x 25)
Washer, Thrust 6mm
Clip, Governor Holder
Oil Seal (25 x 41.25 x 6)
Washer, Plain, 6mm
Pin, Lock, 8ram
Pin, Dowel (8 x 20)
Gauge Assembly, Oil Level
45
