Craftsman 917.388521 - ENGINE INTERNAL COMPONENTS; Cylinder, Flywheel, and Piston Parts

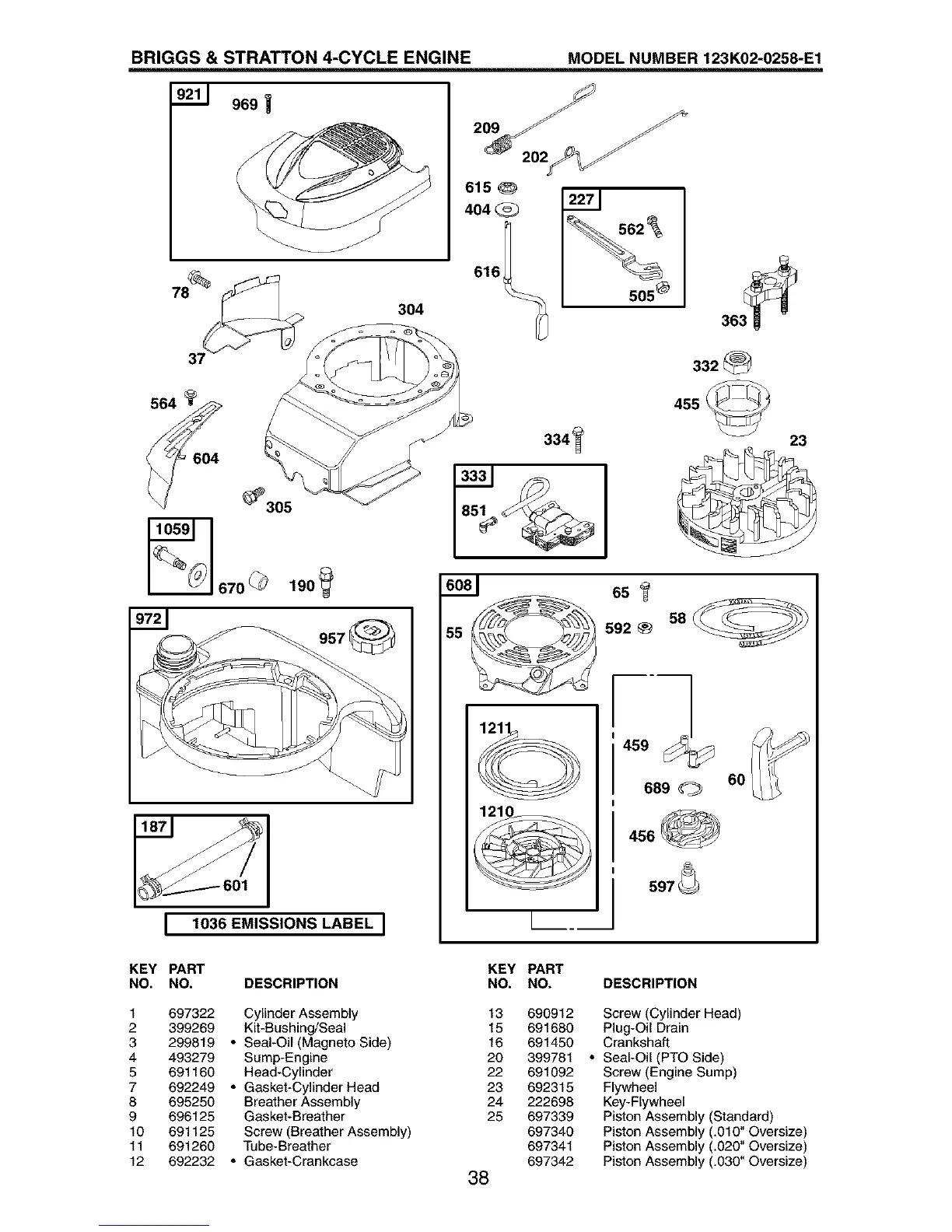

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 123K02-0258-E1
969 I
304
615
404
562_
332
I
I 1036 EMISSIONS LABEL I
455
334_
23
65
58
592_
689
456
6O
KEY PART
NO. NO. DESCRIPTION
1 697322 Cylinder Assembly
2 399269 Kit-Bushing/Seal
3 299819 • Seal-Oil (Magneto Side)
4 493279 Sump-Engine
5 691160 Head-Cylinder
7 692249 • Gasket-Cylinder Head
8 695250 Breather Assembly
9 696125 Gasket-Breather
10 691125 Screw (Breather Assembly)
11 691260 Tube-Breather
12 692232 • Gasket-Crankcase
KEY PART
NO. NO.
13 690912
15 691680
16 691450
20 399781
22 691092
23 692315
24 222698
25 697339
697340
697341
697342
38
DESCRIPTION
Screw (Cylinder Head)
Plug-Oil Drain
Crankshaft
• Seal-Oil (PTO Side)
Screw (Engine Sump)
Flywheel
Key-Flywheel
Piston Assembly (Standard)
Piston Assembly (.010" Oversize)
Piston Assembly (.020" Oversize)
Piston Assembly (.030" Oversize)
