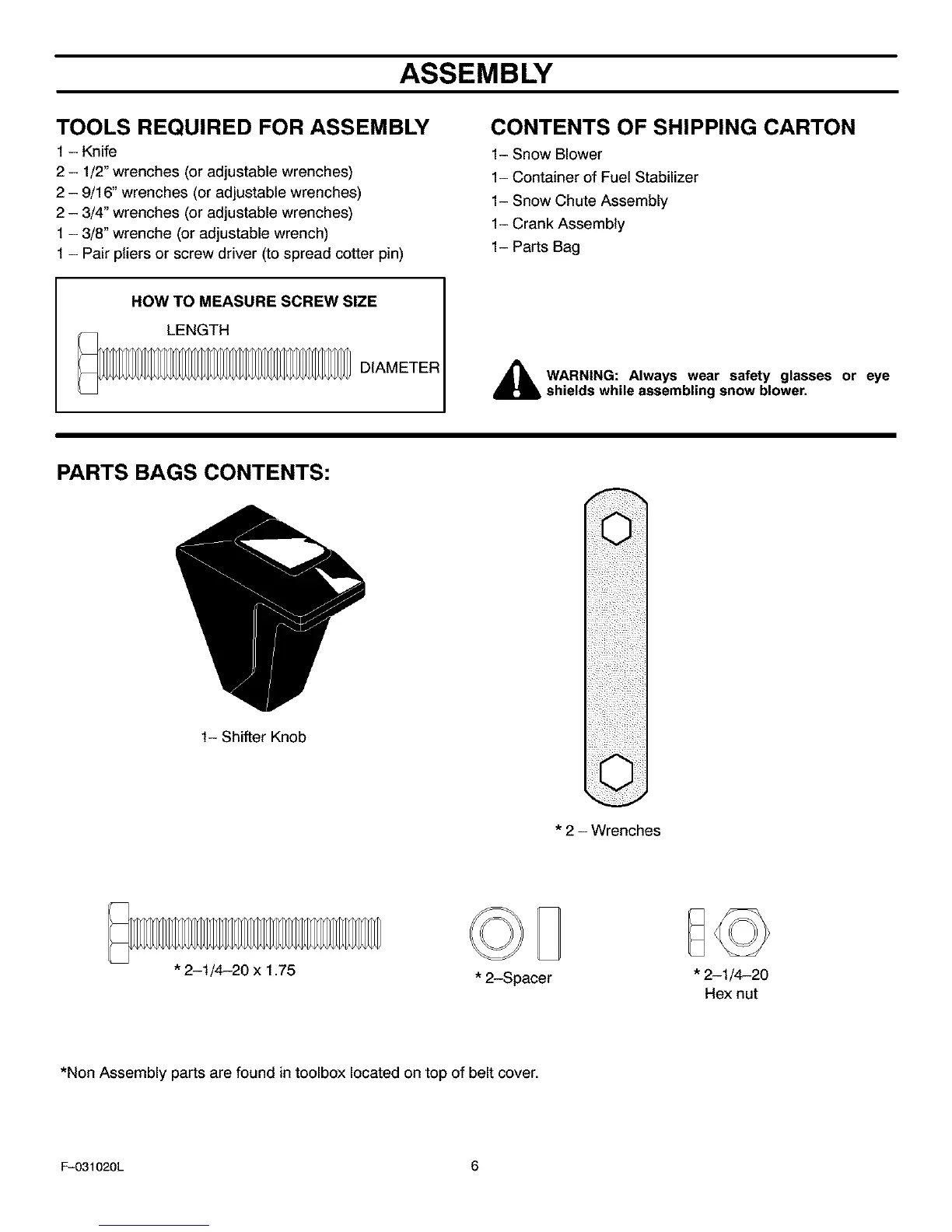

ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
1 - Knife
2 - 1/2" wrenches (or adjustable wrenches)
2 - 9/16" wrenches (or adjustable wrenches)
2 - 3/4" wrenches (or adjustable wrenches)
1 - 3/8" wrenche (or adjustable wrench)
1 - Pair pliers or screw driver (to spread cotter pin)
CONTENTS OF SHIPPING CARTON
1- Snow Blower
1- Container of Fuel Stabilizer
1- Snow Chute Assembly
1- Crank Assembly
1- Parts Bag
HOW TO MEASURE SCREW SIZE
LENGTH
DIAMETER
,_ WARNING: Always wear safety glasses or eye
shields while assembling snow blower.
PARTS BAGS CONTENTS:
1- Shifter Knob
I
* 2 - Wrenches
* 2-1/4-20 x 1.75
* 2-Spacer
* 2-1/4-20
Hex nut
*Non Assembly parts are found in toolbox located on top of belt cover.
F-031 O20L 6
To Next Page
