1757
1740
1760
9

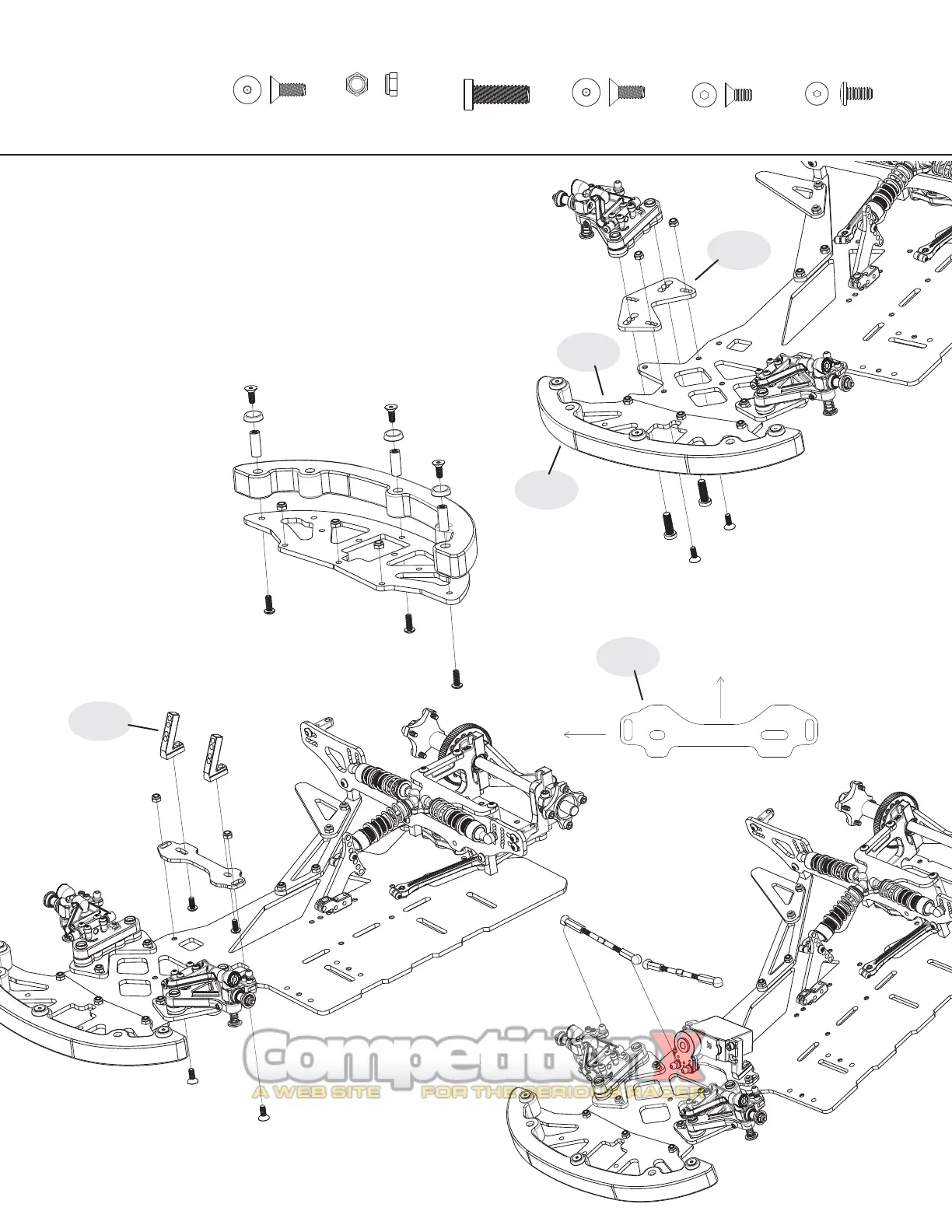

Installing the Lower arm to the Chassis
1 - Insert three 4-40 x 5/16” FH screws through the chassis, then through the Front End
Mounting Plate. Secure this with three red locknuts. We recommend starting in the
middle hole of the plates as shown in the pic. This will give you the option to go either
wider or narrower if need be.
2 - Now, secure the front end assembly to the plate using the 8-32 x 5/8” low head front
end screws. Again, we recommend starting in the middle hole, giving you the option to
go longer or shorter.
3 - Repeat these steps for the other side.
4 - For fine ride height adjustments, you can use CRC’s 4262 plastic shim kit (optional).
CRC Pro-Strut
Front End - cont.
17394 - 8-32 x 5/8”
Low Head Screw
1412 - Red Locknut
1426 - 4-40 x
5/16” FH
1451 - 4-40 x
5/16” FH Red
1434 - 4-40 x 1/4”
Button Head
1424 - 4-40 x 1/4”
Flat Head
1715
Front of Car
Left
1753
1740 - Fr. End Mnt Plates
1757 - Graphite Bumper
1760 - Foam Bumper
1753 - Adj Servo Mnt Plate
1715 - Servo Mounts
To Next Page
