13783 - 4-40 x 1/8”
Set Screw
11
1462 - 4-40 x 3/8”
Red Socket Cap
4745 -
3/16” Shim
3248 - 3/16” x 5/16”
Flanged Bearing

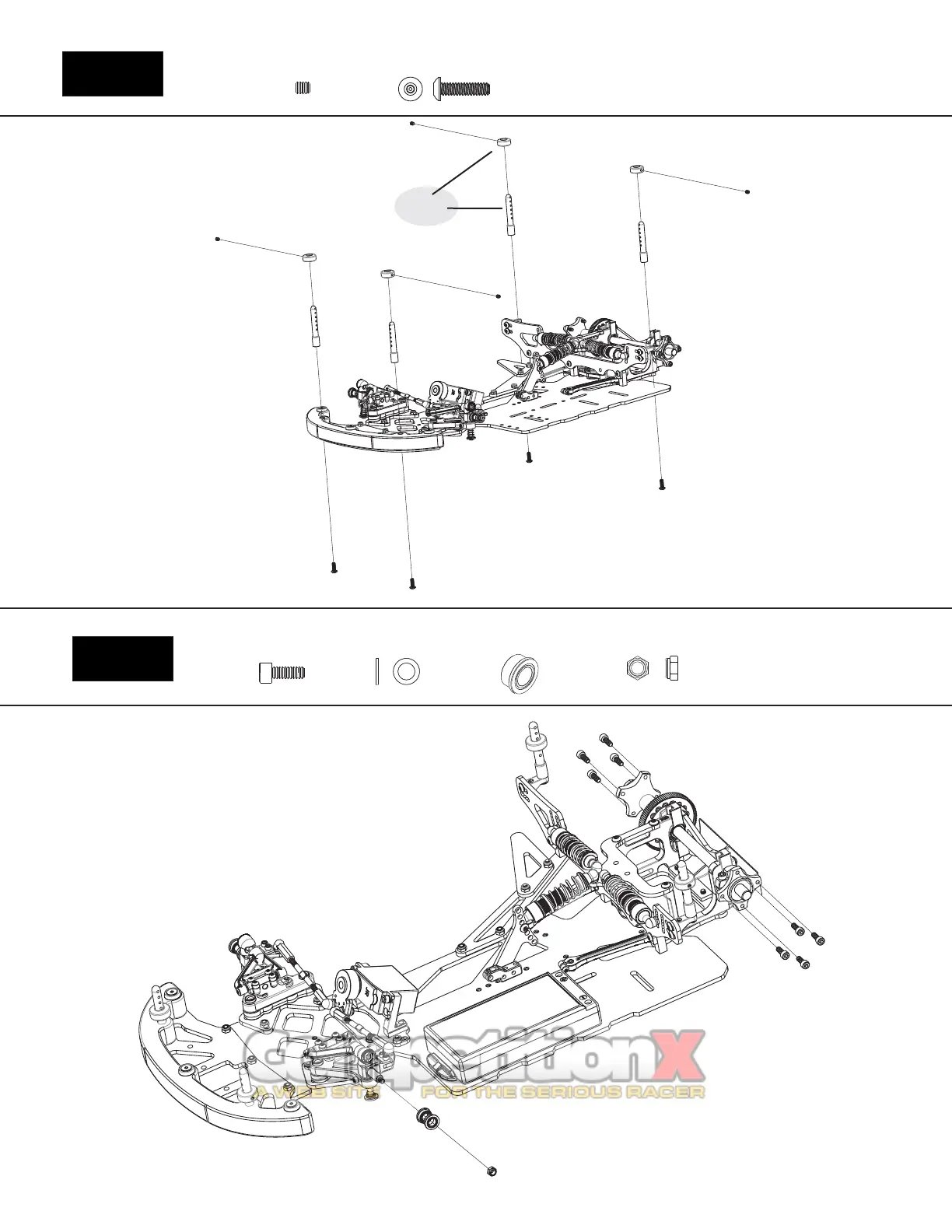

1 - Use the 4-40 x 3/8” red cap head screws to bolt the rear
wheels to the hubs.
2 - Insert the flanged bearings into the front wheels. Place a
3/16” shim over the axle, then the front wheel, & then a red
locknut last. The front wheels should spin very free. Do not
over-tighten the front wheel nuts so that the bearings are
pinched.
(Tires not included)
1436 - 4-40 x 3/8”
Button Head
1264
Bag 10
Bag 11
1412 - Red Locknut
1264 - Long Body Posts
w/ collars (3 in.)
