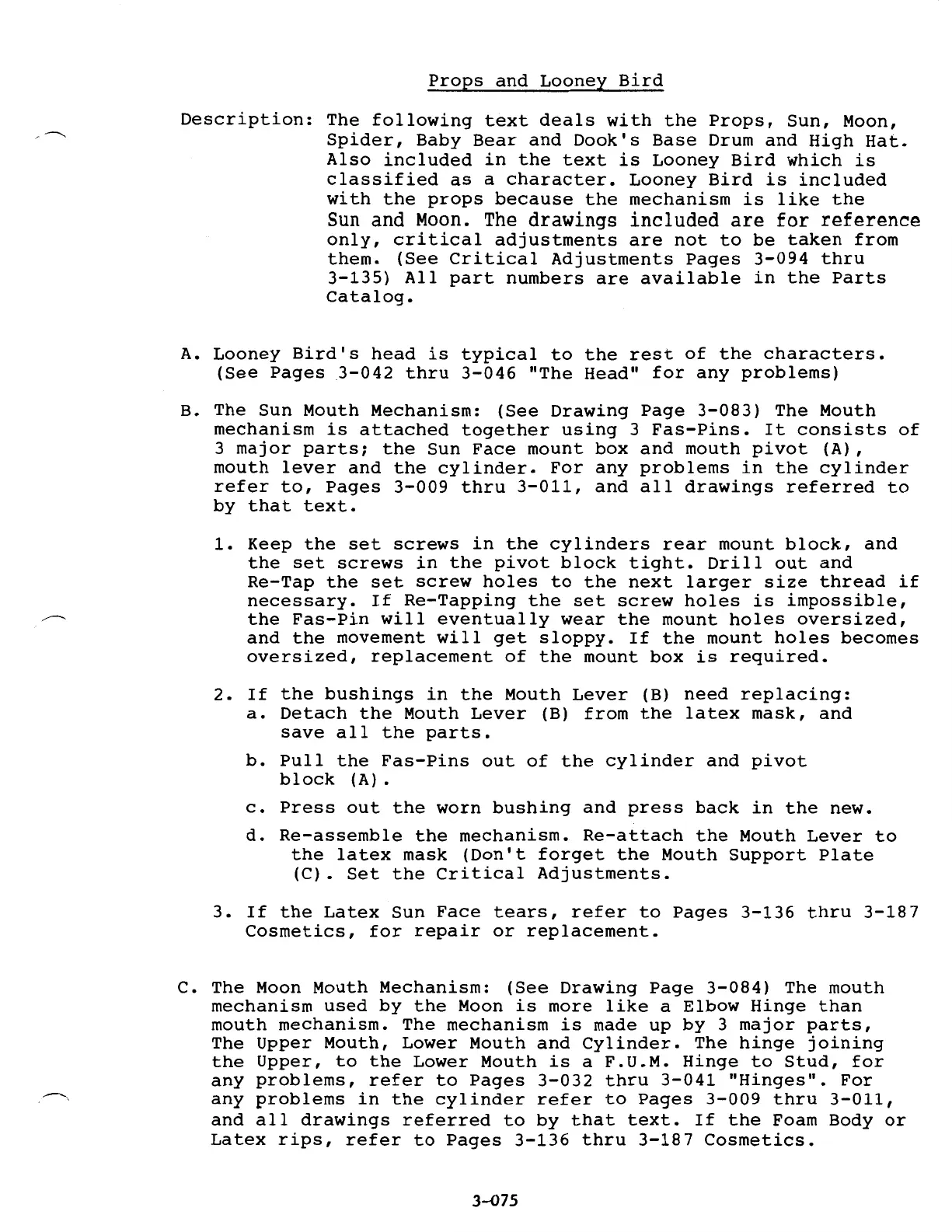

Props

and

Looney

Bird

Description:

The

following

text

deals

with

the

Props,

Sun,

Moon,

Spider,

Baby

Bear

and

Dook's

Base

Drum

and

High

Hat.

Also

included

in

the

text

is

Looney

Bird

which

is

classified

as

a

character.

Looney

Bird

is

included

with

the

props

because

the

mechanism

is

like

the

Sun

and

Moon.

The

drawings

included

are

for

reference

only,

critical

adjustments

are

not

to

be

taken

from

them.

(See

Critical

Adjustments

Pages

3-094

thru

3-135)

All

part

numbers

are

available

in

the

Parts

Catalog.

A.

Looney

Bird's

head

is

typical

to

the

rest

of

the

characters.

(See

Pages

3-042

thru

3-046

"The

Head"

for

any

problems)

B. The

Sun

Mouth

Mechanism:

(See

Drawing

Page

3-083)

The Mouth

mechanism

is

attached

together

using

3

Fas-Pins.

It

consists

of

3

major

parts;

the

Sun

Face

mount

box

and

mouth

pivot

(A),

mouth

lever

and

the

cylinder.

For

any

problems

in

the

cylinder

refer

to,

Pages

3-009

thru

3-011,

and

all

drawings

referred

to

by

that

text.

1.

Keep

the

set

screws

in

the

cylinders

rear

mount

block,

and

the

set

screws

in

the

pivot

block

tight.

Drill

out

and

Re-Tap

the

set

screw

holes

to

the

next

larger

size

thread

if

necessary.

If

Re-Tapping

the

set

screw

holes

is

impossible,

the

Fas-Pin

will

eventually

wear

the

mount

holes

oversized,

and

the

movement

will

get

sloppy.

If

the

mount

holes

becomes

oversized,

replacement

of

the

mount

box

is

required.

2.

If

the

bushings

in

the

Mouth

Lever

(B)

need

replacing:

a.

Detach

the

Mouth

Lever

(B)

from

the

latex

mask,

and

save

all

the

parts.

b.

Pull

the

Fas-Pins

out

of

the

cylinder

and

pivot

block

(A)

.

c.

Press

out

the

worn

bushing

and

press

back

in

the

new.

d.

Re-assemble

the

mechanism.

Re-attach

the

Mouth

Lever

to

the

latex

mask

(Don't

forget

the

Mouth

Support

Plate

(C).

Set

the

Critical

Adjustments.

3.

If

the

Latex

Sun

Face

tears,

refer

to

Pages

3-136

thru

3-187

Cosmetics,

for

repair

or

replacement.

c. The

Moon

Mouth

Mechanism:

(See

Drawing

Page

3-084)

The

mouth

mechanism

used

by

the

Moon

is

more

like

a

Elbow

Hinge

than

mouth

mechanism.

The

mechanism

is

made

up

by

3

major

parts,

The

Upper

Mouth,

Lower Mouth

and

Cylinder.

The

hinge

joining

the

Upper,

to

the

Lower Mouth

is

a

F.U.M.

Hinge

to

Stud,

for

any

problems,

refer

to

Pages

3-032

thru

3-041

"Hinges".

For

any

problems

in

the

cylinder

refer

to

Pages

3-009

thru

3-011,

and

all

drawings

referred

to

by

that

text.

If

the

Foam Body

or

Latex

rips,

refer

to

Pages

3-136

thru

3-187

Cosmetics.

3-Q75
