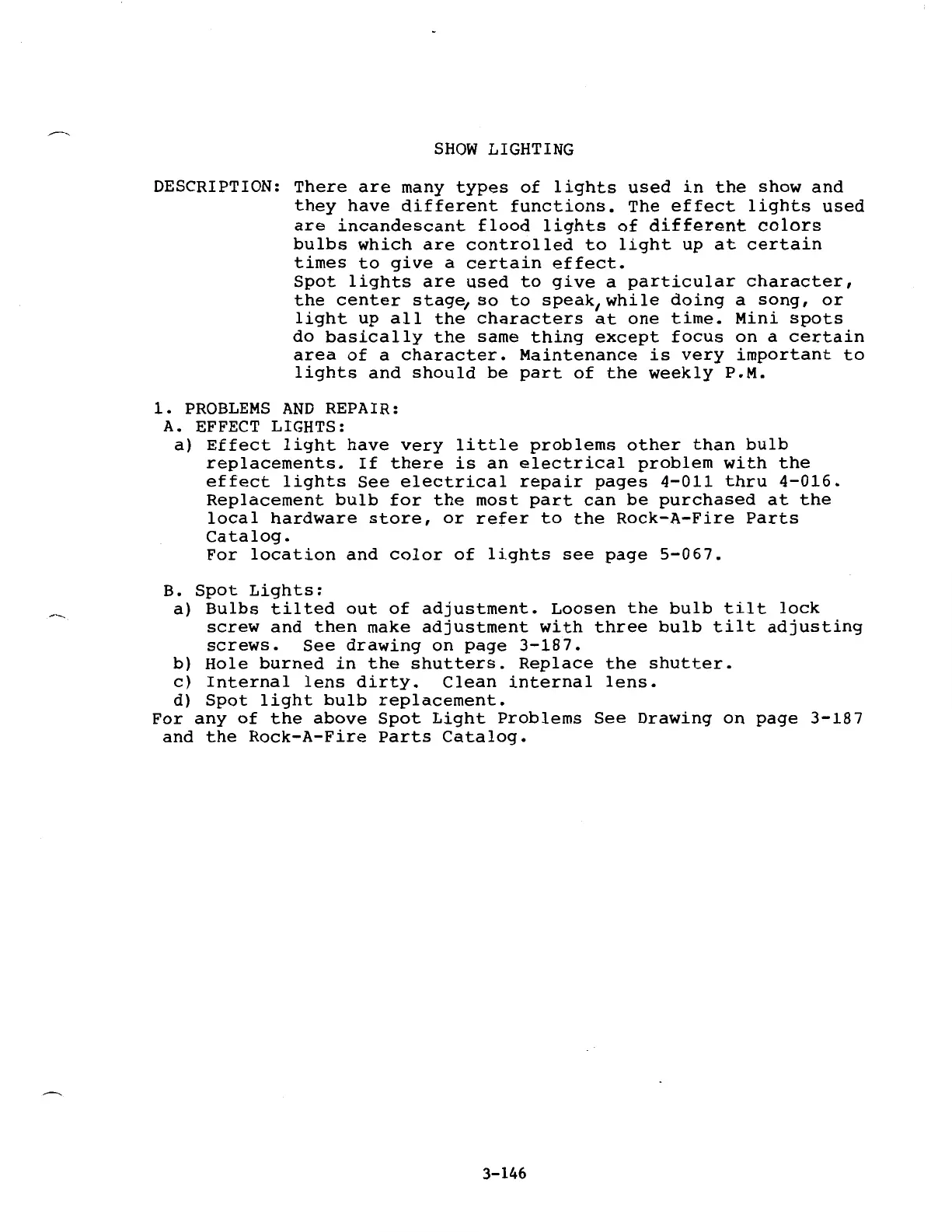

SHOW LIGHTING
DESCRIPTION: There are many types of lights used in the show and
they have different functions. The effect lights used
are incandescant flood lights of different colors
bulbs which are controlled to light up at certain
times to give a certain effect.
Spot lights are used to give a particular character,
the center stag~ so to speak,while doing a song, or
light up all the characters at one time. Mini spots
do basically the same thing except focus on a certain
area of a character. Maintenance is very important to
lights and should be part of the weekly P.M.
1. PROBLEMS AND REPAIR:
A. EFFECT LIGHTS:
a) Effect light have very little problems other than bulb
replacements. If there is an electrical problem with the
effect lights See electrical repair pages 4-011 thru 4-016.
Replacement bulb for the most part can be purchased at the
local hardware store, or refer to the Rock-A-Fire Parts
Catalog.
For location and color of lights see page 5-067.
B. Spot Lights:
a) Bulbs tilted out of adjustment. Loosen the bulb tilt lock
screw and then make adjustment with three bulb tilt adjusting
screws. See drawing on page 3-187.
b) Hole burned in the shutters. Replace the shutter.
c) Internal lens dirty. Clean internal lens.
d) Spot light bulb replacement.
For any of the above Spot Light Problems See Drawing on page 3-187
and the Rock-A-Fire Parts Catalog.
3-146
