Creative Engineering ROCK-A-FIRE EXPLOSION - Page 244

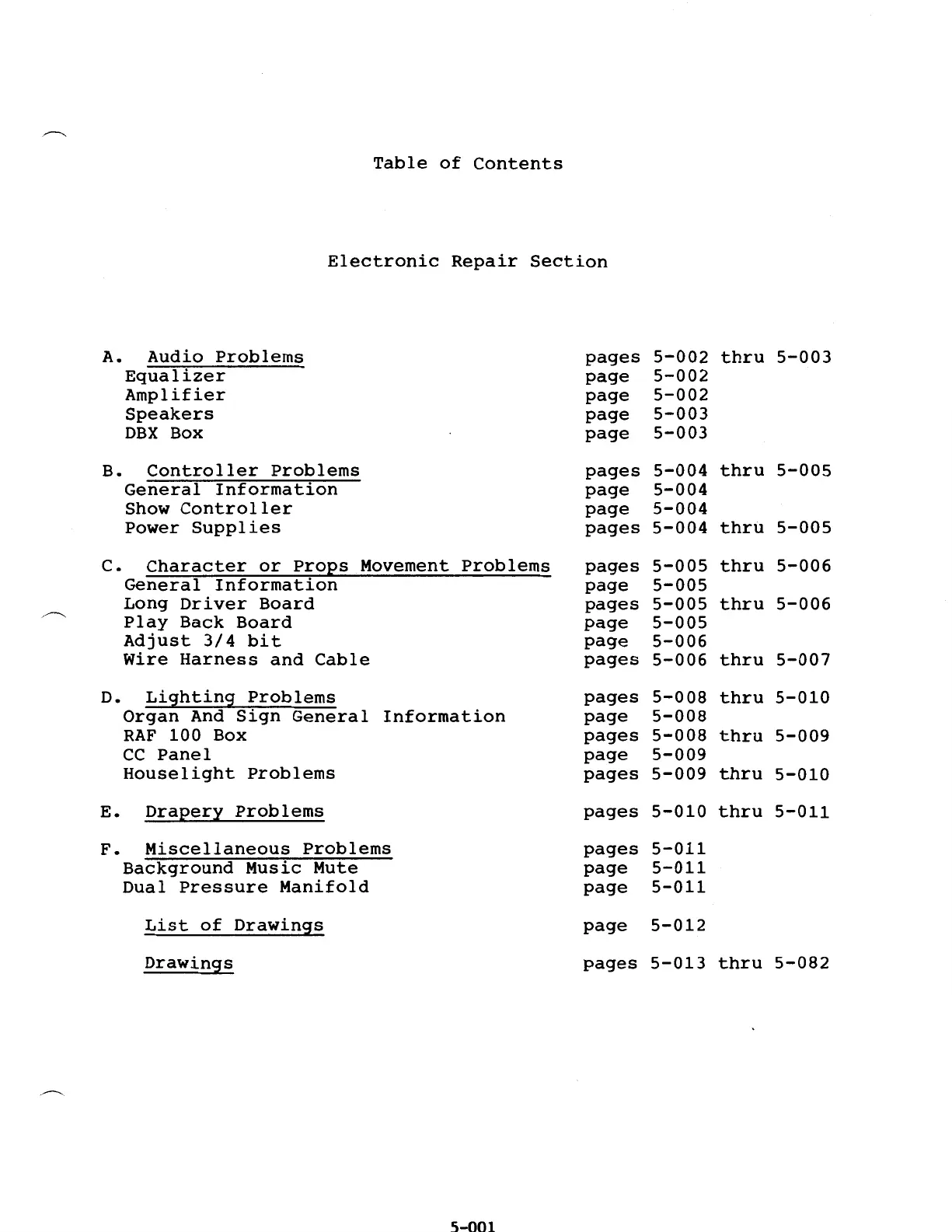

Table of Contents
Electronic Repair Section
A. Audio Problems
pages 5-002
thru 5-003
Equalizer
page 5-002
Amplifier
page 5-002
Speakers
page 5-003
DBX Box
page
5-003
B.
Controller Problems
pages
5-004
thru 5-005
General Information
page
5-004
Show Controller
page 5-004
Power Supplies
pages 5-004 thru
5-005
c.
Character or ProEs Movement Problems pages 5-005 thru
5-006
General Information
page
5-005
Long Driver Board
pages
5-005 thru
5-006
/~
Play Back Board
5-005
page
Adjust 3/4 bit page
5-006
Wire Harness and Cable pages
5-006
thru
5-007
D.
Lishtins Problems
pages
5-008 thru
5-010
Organ And Sign General
Information
page
5-008
RAF 100 Box pages
5-008 thru 5-009
CC Panel page
5-009
Houselight Problems
pages 5-009 thru
5-010
E.
DraEer:t: Problems
pages
5-010 thru
5-011
F.
Miscellaneous Problems pages
5-011
Background Music Mute page
5-011
Dual
Pressure Manifold
page 5-011
List of Drawings
page
5-012
Drawings pages 5-013 thru 5-082
5-001
