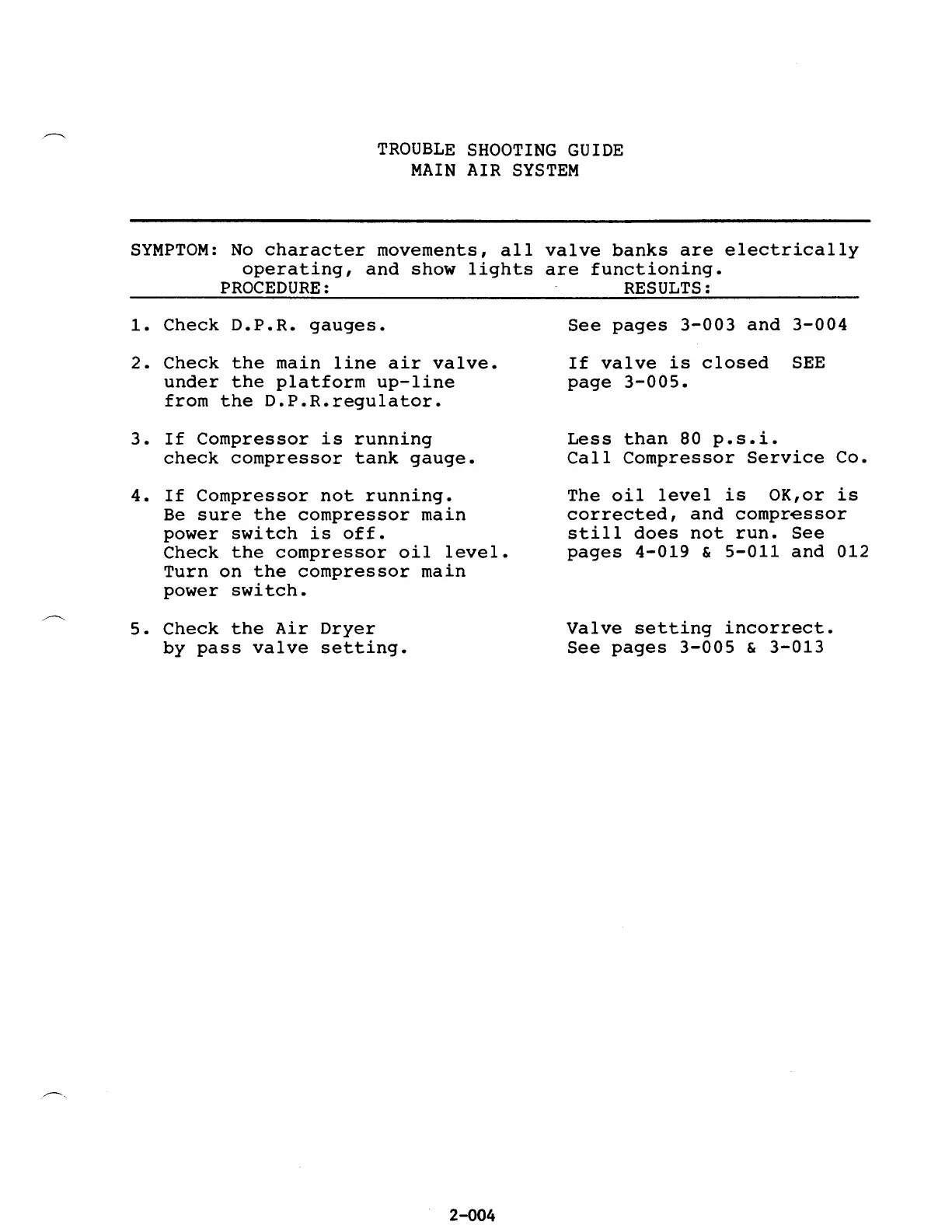

TROUBLE SHOOTING GUIDE
MAIN AIR SYSTEM
SYMPTOM: No character movements, all valve banks are electrically
operating, and show lights are functioning.
PROCEDURE: RESULTS:
1. Check D.P.R. gauges.
2. Check the main line air valve.
under the platform up-line
from the D.P.R.regulator.
3. If Compressor is running
check compressor tank gauge.
4. If Compressor not running.
Be sure the compressor main
power switch is off.
Check the compressor oil level.
Turn on the compressor main
power switch.
5. Check the Air Dryer
by pass valve setting.
2-004
See pages 3-003 and 3-004
If valve is closed SEE
page 3-005.
Less than 80 p.s.i.
Call Compressor Service Co.
The oil level is OK,or is
corrected, and compr€ssor
still does not run. See
pages 4-019 & 5-011 and 012
Valve setting incorrect.
See pages 3-005 & 3-013
