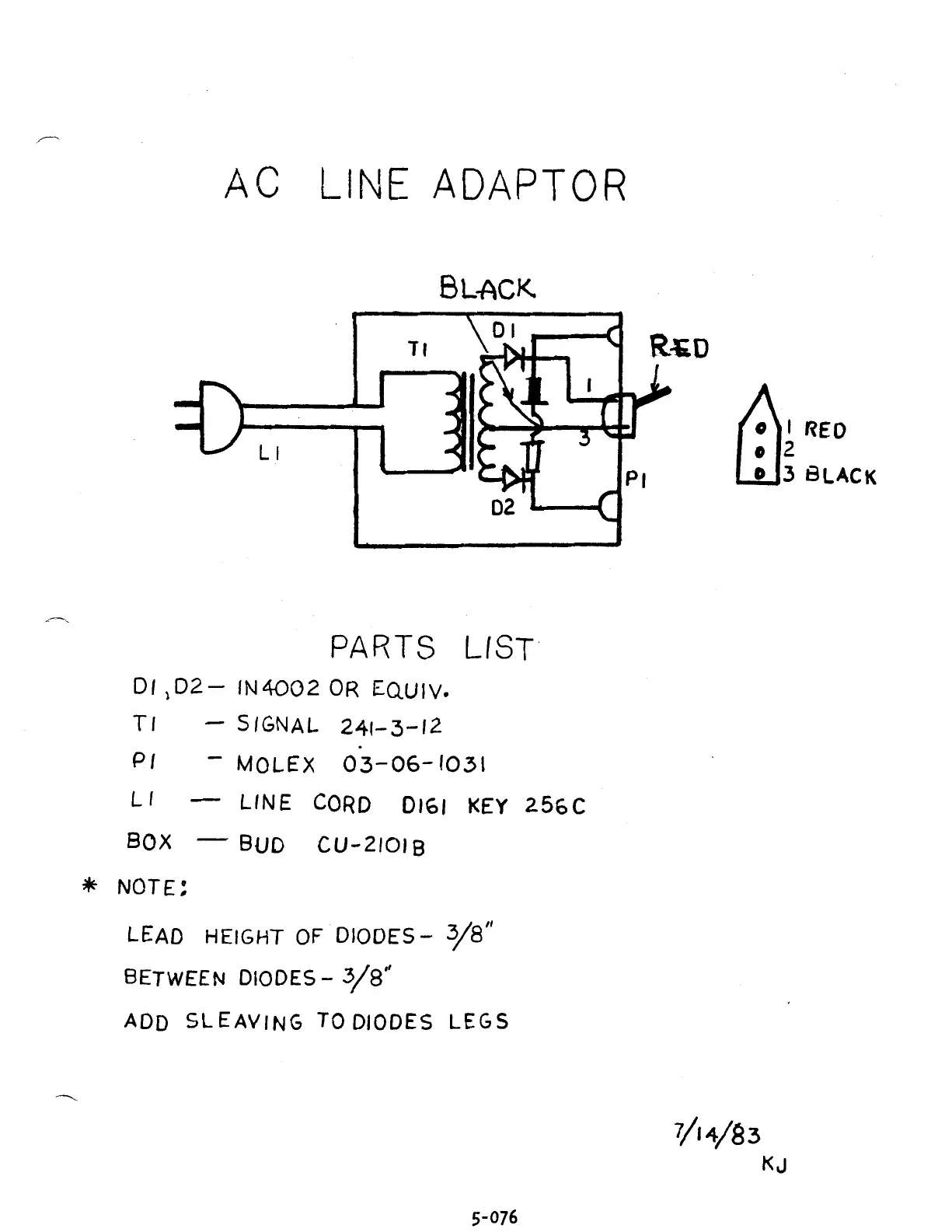

AC LINE ADAPTOR
BL-ACK
Ll
PARTS LIST
D I , 02- IN 4002 OR EQUfV.
Tl - SIGNAL 241-3-12
PI - MOLE X 03-06-1031
L I - LINE CORD 0161 KEY 2.56C
BOX - BUD CU-2/0J 8
* NOTE!
LEAD HEIGHT OF DIODES- 3/8"
BETWEEN DIODES- .3/8''
ADD SLEAVING TO DIODES LEGS
5-076
