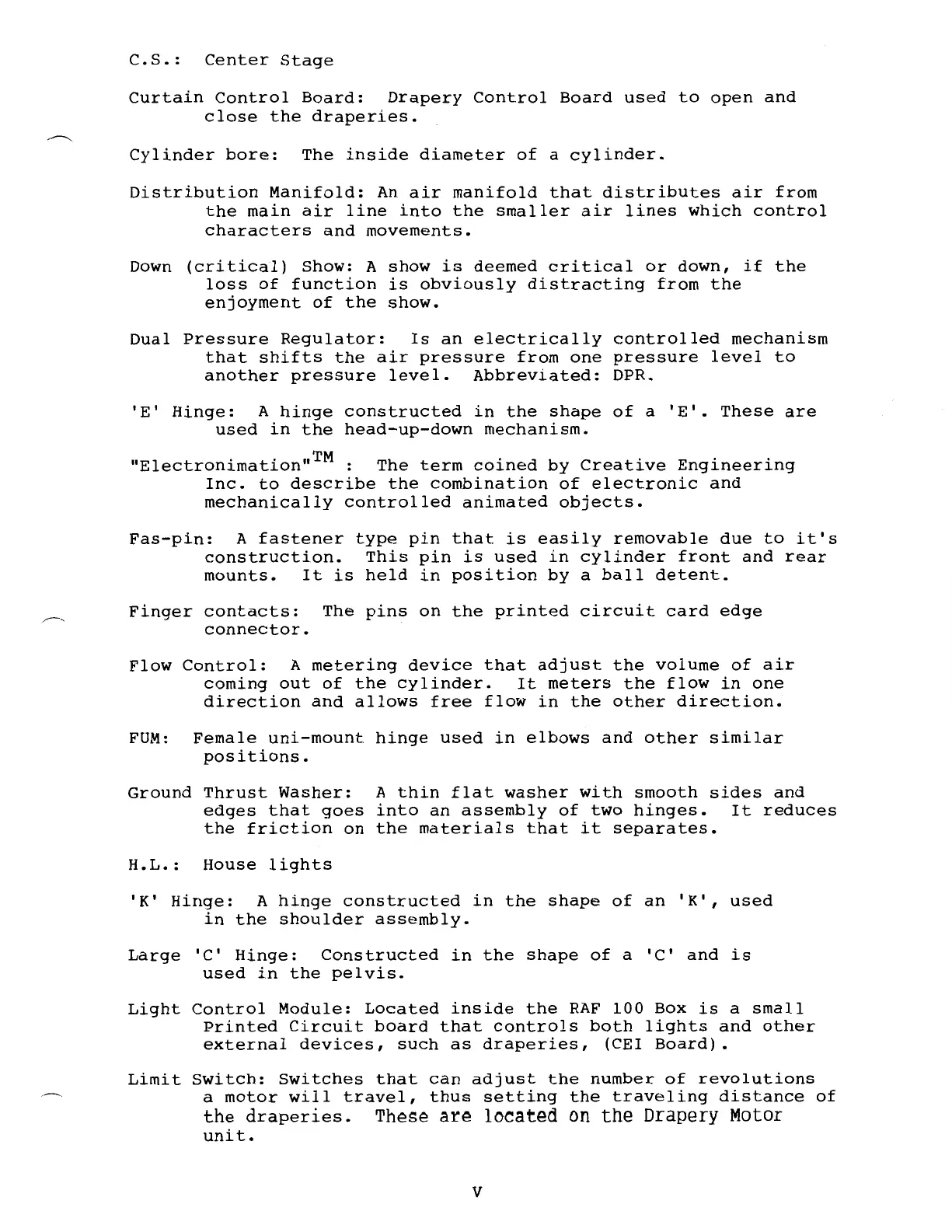

C.S.:

Center

Stage

Curtain

Control

Board:

Drapery

Control

Board

used

to

open

and

close

the

draperies.

Cylinder

bore:

The

inside

diameter

of

a

cylinder.

Distribution

Manifold:

An

air

manifold

that

distributes

air

from

the

main

air

line

into

the

smaller

air

lines

which

control

characters

and

movements.

Down

(critical)

Show:

A

show

is

deemed

critical

or

down,

if

the

loss

of

function

is

obviously

distracting

from

the

enjoyment

of

the

show.

Dual

Pressure

Regulator:

Is

an

electrically

controlled

mechanism

that

shifts

the

air

pressure

from

one

pressure

level

to

another

pressure

level.

Abbreviated:

DPR.

'E'

Hinge:

A

hinge

constructed

in

the

shape

of

a

'E'.

These

are

used

in

the

head-up-down

mechanism.

"Electronimation"™

The

term

coined

by

Creative

Engineering

Inc.

to

describe

the

combination

of

electronic

and

mechanically

controlled

animated

objects.

Fas-pin:

A

fastener

type

pin

that

is

easily

removable

due

to

it's

construction.

This

pin

is

used

in

cylinder

front

and

rear

mounts.

It

is

held

in

position

by

a

ball

detent.

Finger

contacts:

The

pins

on

the

printed

circuit

card

edge

connector.

Flow

Control:

A

metering

device

that

adjust

the

volume

of

air

coming

out

of

the

cylinder.

It

meters

the

flow

in

one

direction

and

allows

free

flow

in

the

other

direction.

FUM:

Female

uni-mount

hinge

used

in

elbows

and

other

similar

positions.

Ground

Thrust

Washer:

A

thin

flat

washer

with

smooth

sides

and

edges

that

goes

into

an

assembly

of

two

hinges.

It

reduces

the

friction

on

the

materials

that

it

separates.

H.L.:

House

lights

'K'

Hinge:

A

hinge

constructed

in

the

shape

of

an

'K',

used

in

the

shoulder

assembly.

Large

'C'

Hinge:

Constructed

in

the

shape

of

a

'C'

and

is

used

in

the

pelvis.

Light

Control

Module:

Located

inside

the

RAF

100

Box

is

a

small

Printed

Circuit

board

that

controls

both

lights

and

other

external

devices,

such

as

draperies,

(CEI

Board).

Limit

Switch:

Switches

that

can

adjust

the

number

of

revolutions

a

motor

will

travel,

thus

setting

the

traveling

distance

of

the

draperies.

These

ar~

located

on

the Drapery

Motor

unit.

v
