INSTRUCTION
MANUAL
13

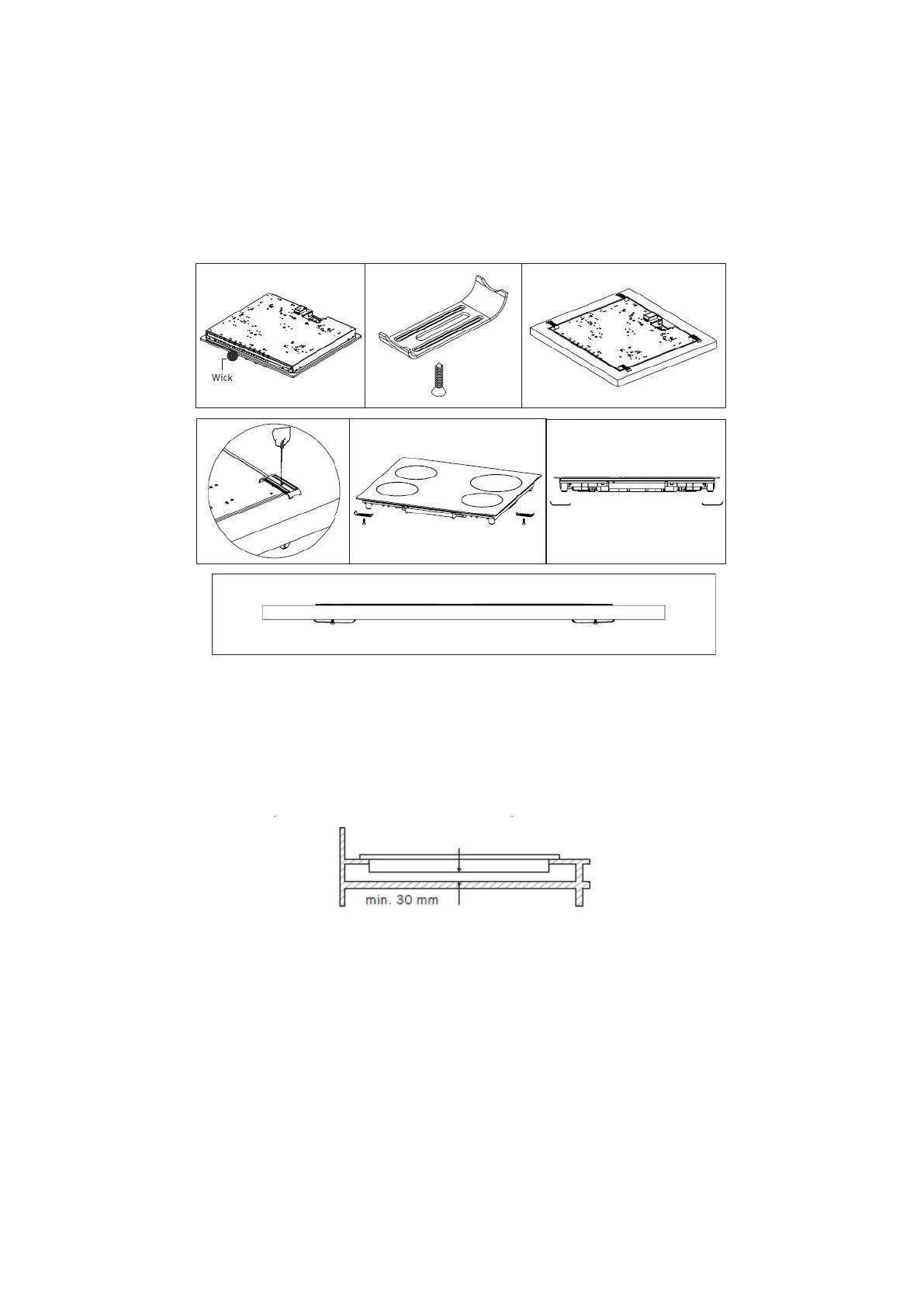

Installation Diagram
1. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be
separated with a wooden shelf.
2. While mounting hob on a closet, as shown in the figure above, in order to separate between closet and hob, a shelf
should be mounted. If it is mounted on a built-in oven, there is no need to do that.
3. If your hob will be mounted next to right or left wall, the minimum distance between wall and hob should be 50 mm.
