9
BICYCLE MANUAL&WARRANTY

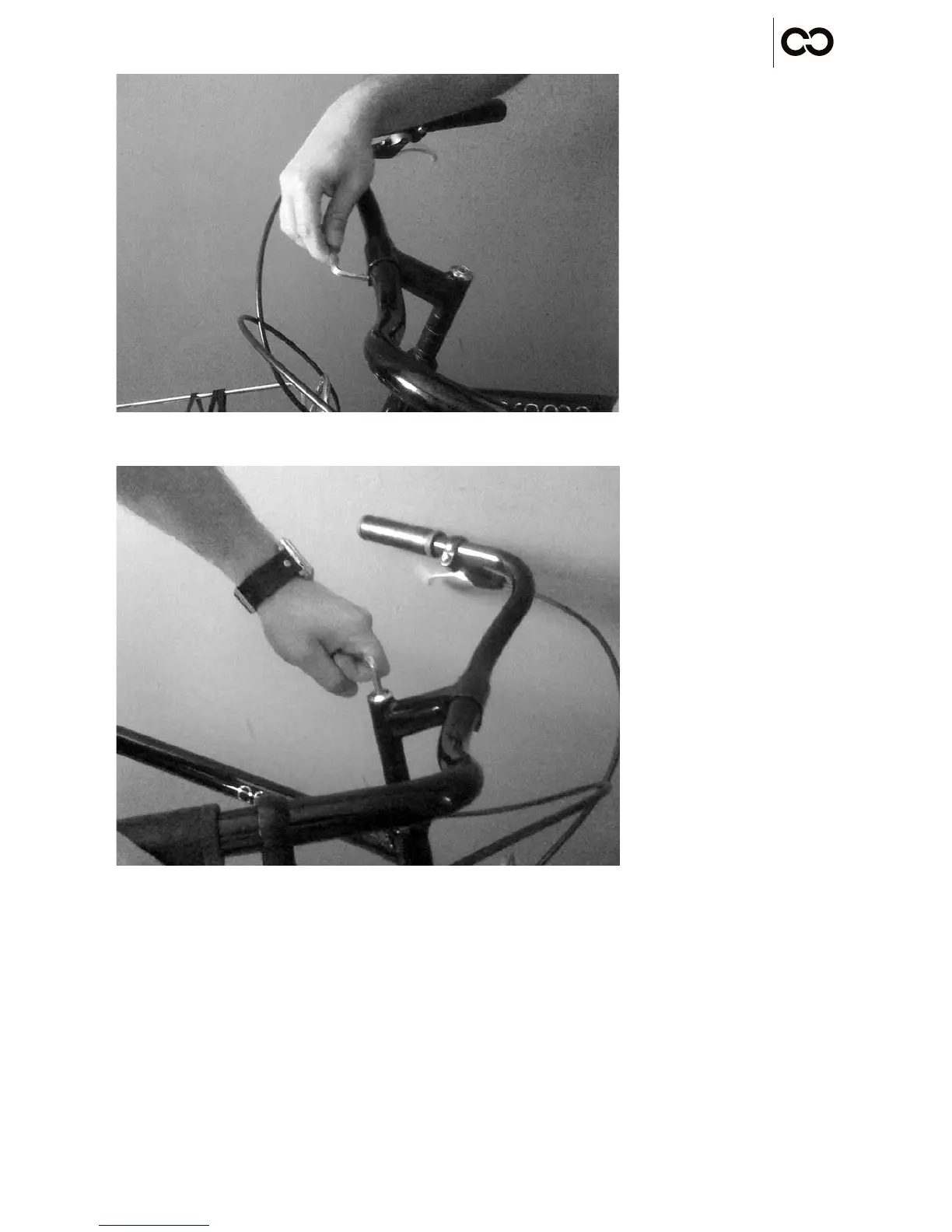

FIG 3: Adjusting handlebar angle
FIG 4: Adjusting stem height
6.4 Tightening torque for various bolts on the bicycle.
Stem steer tube bolt – 16 Nm
Stem handlebar bolts – 14 Nm
Front hub axle bolt– 17 Nm (for 10mm axle hubs)
Rear wheel bolt– 29 Nm
Crank to bottom bracket bolts – 40 Nm
Seat binder: 12 Nm
Bolds in seat post clamp: M5: 15Nm, M6: 20Nm, 13mm or 14mm nut: 25Nm
Pedals: 10Nm
