Regulators repair and maintenance
January 2008 Rev. ELL. OCTO /A Ed. B / 09 27
2nd stage ELLIPSE Black

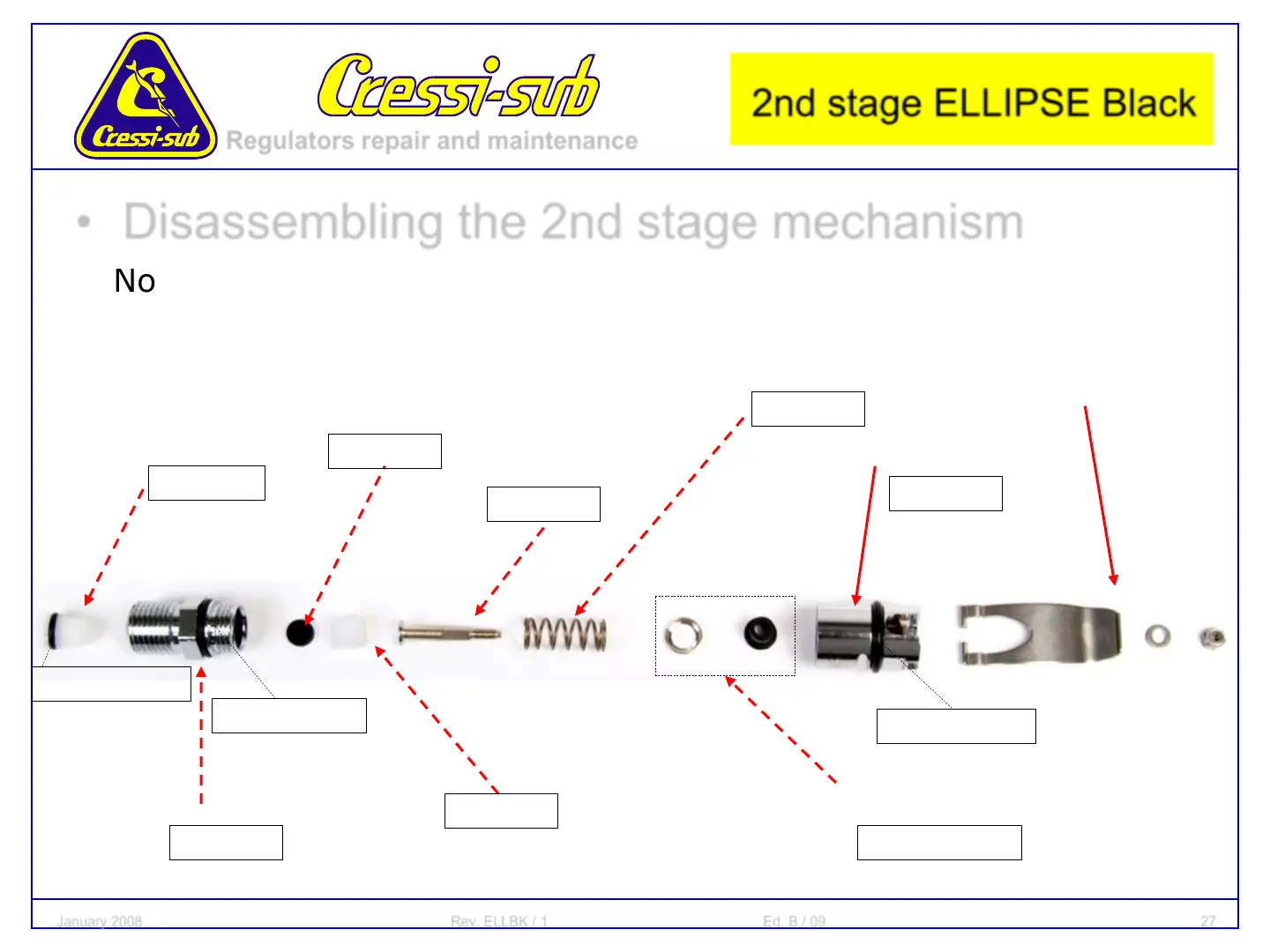

Now, here we have on our bench all elements composing the 2nd
stage Ellipse Black mechanism.
Disassembling the 2nd stage mechanism
HZ 810094
HZ 742013
HZ 810091
HZ 730207
HZ 810087
11K = HZ 810088
HZ 810090
HZ 810093
OR = HZ 810095
OR =HZ 810092
OR = HZ 810086
Mobile nozzle
Mobile nozzle body
2° stage paste
Valve shaft
Valve shaft bush
2nd stage valve spring
Valve body
Lever, washer and nut
Complete spring balancing and
sliding washer
