Cressi-sub MC9 - Page 29

Regulators repair and maintenance
29

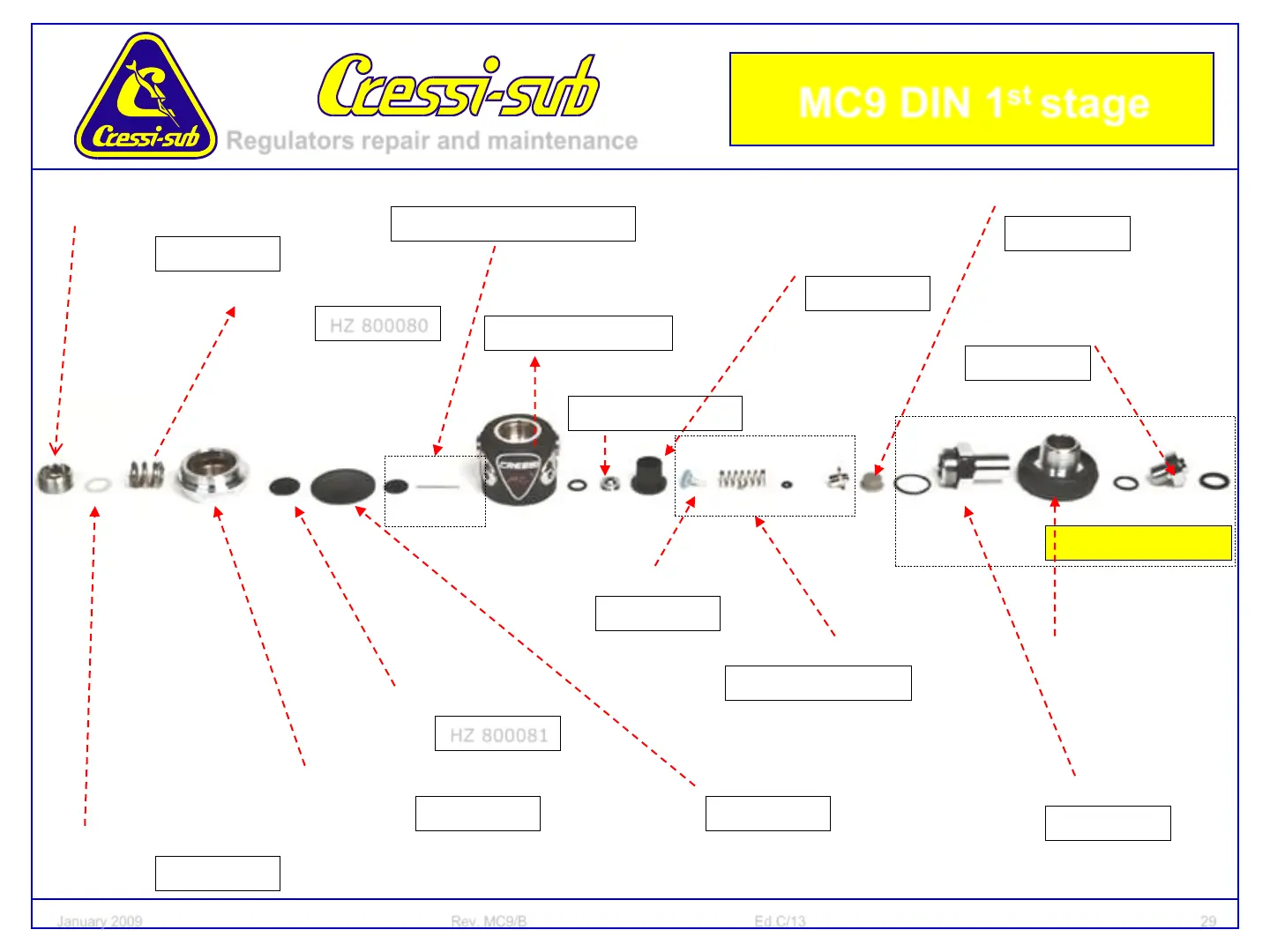

MC9 DIN 1
st
stage
Setting screw
Spring washer
Setting spring
Spring guide plate
HZ 800081
HZ 800080
1
st
stage body
Setting screw
Diaphragm closing disk Diaphragm
Pin pusher + pin
HZ 800065
HZ 800064
HZ 800063 HZ 800082
HZ 800062 / HZ 800061
16K = HZ 800040
HP piston jacket
HZ 800059
Complete HP valve
10K = HZ 800058
HP piston
HZ 800085
Filter
HZ 800056
DIN filter body
26K = HZ 800067
DIN hand-wheel
DIN 300 connector
Nozzle
28 = HZ 800042
HZ 800049
January 2009 Rev. MC9/B Ed.C/13
HZ 800046
