Cressi-sub XS Compact - Disassembly Procedures

Regulators repair and maintenance
January 2014 Rev XSC /C Ed. C /14 9
XS Compact 2nd stage:
steps in disassembly
• Remove and replace all gaskets in the 2nd stage;
• To remove the O-Rings, use a plastic tool, or a metal one, but with a
rounded tip in order to avoid damaging the gasket seat;

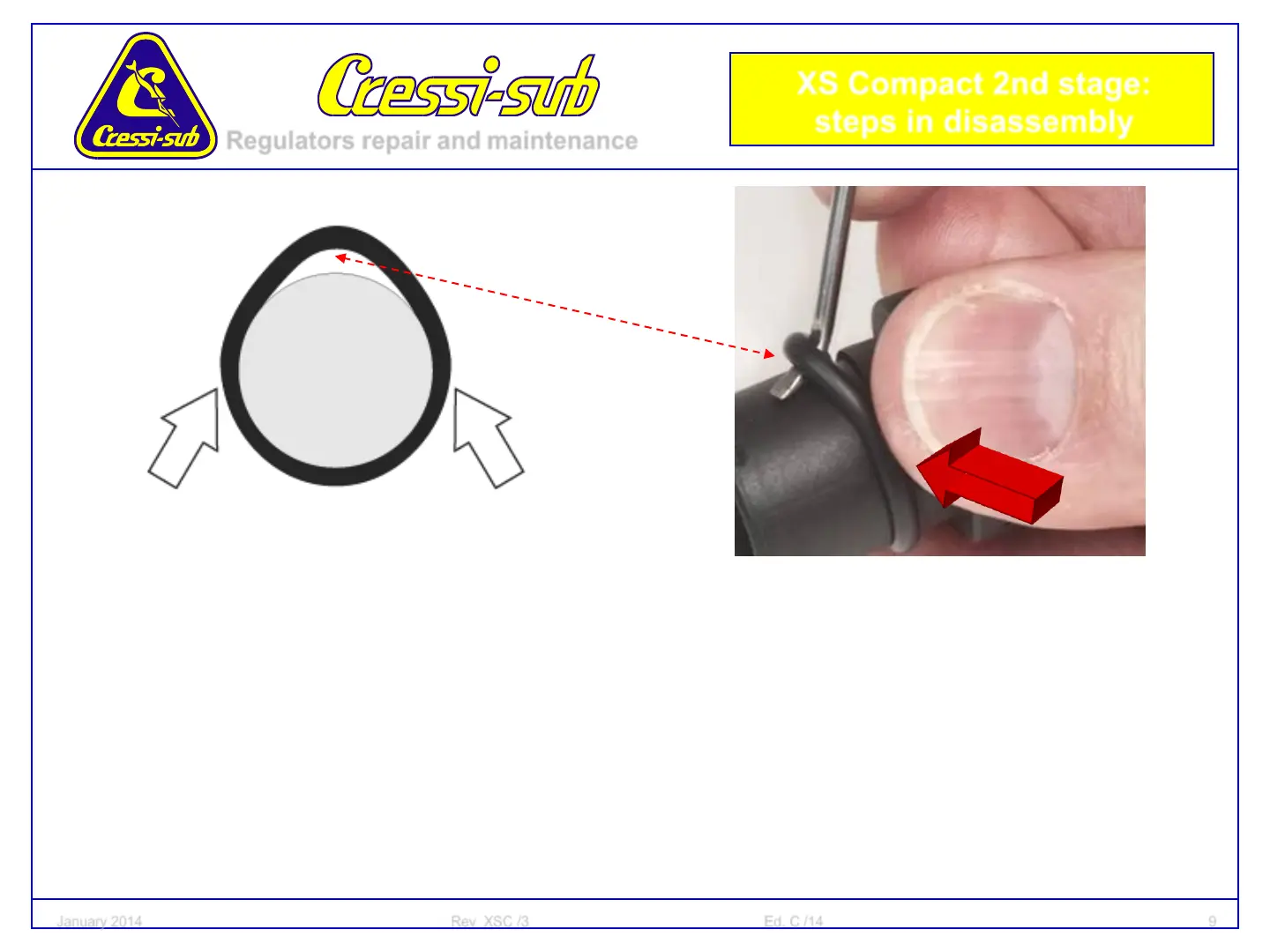

• To replace the gaskets correctly, press on the sides of the O-Rings to create
a protuberance under which you can insert the tool with the rounded tip
used for removing O-Rings, as shown in the figure;
• Important: ONLY USE ORIGINAL CRESSI-SUB GASKETS
