GTX
APPENDIX A
CENTURY SERIES

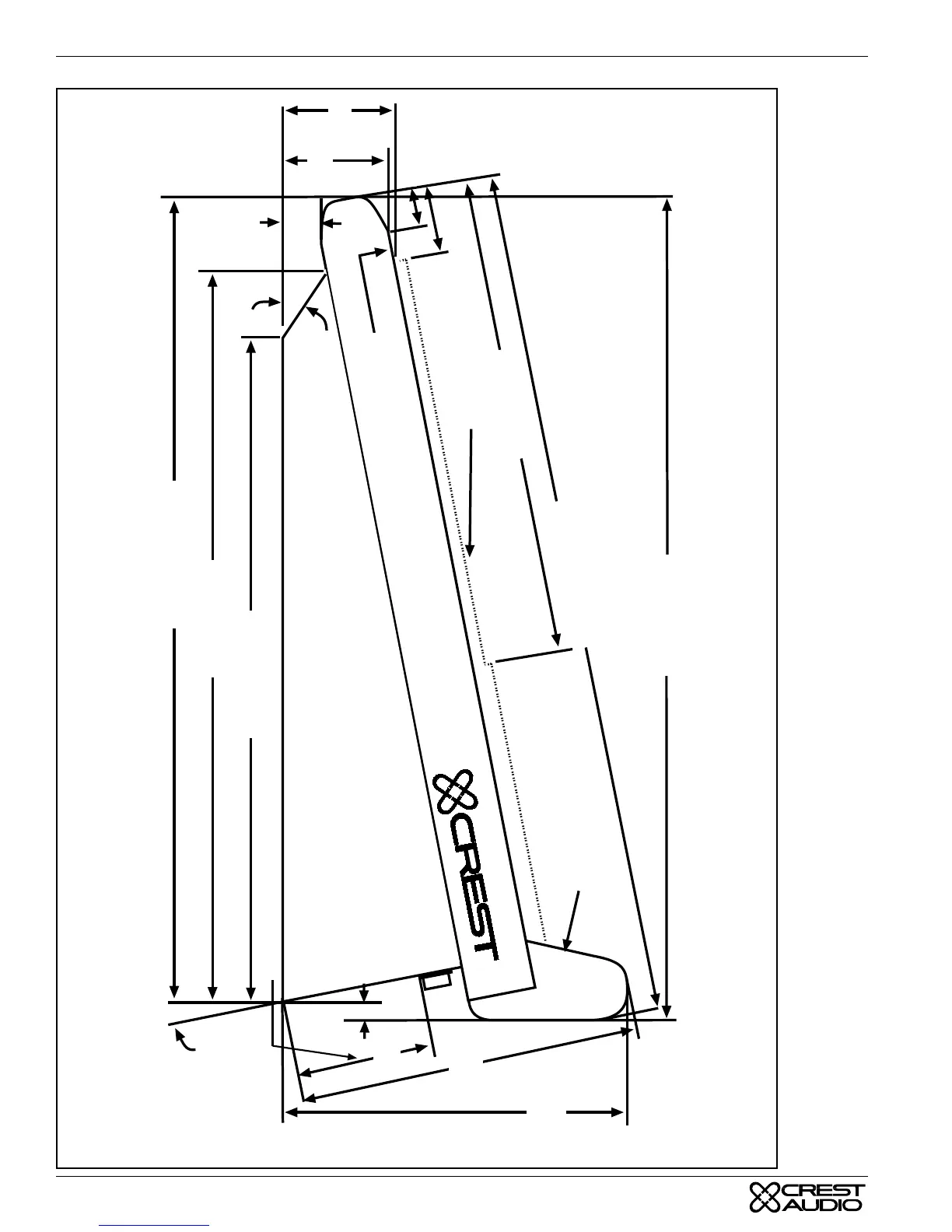

Side Dimensions The following diagram illustrates the depth and height dimen- sions (from the side) for all Century GTx consoles.
2.25"/57mm
24.75" / 629mm
28.0" / 711mm
30.21"/767mm
35°
12.6875"
322mm
12.5625"
319mm
.65"/17mm
31.14" / 791mm
DO NOT APPLY ANY LOADS TO METER BRIDGE ASSEMBLY
5.125"
130mm
10°
SUPPORT ACROSS THIS DIMENSION IS RECOMMENDED
SUPPORT ACROSS
THIS AREA IS
RECOMMENDED
KNOB HEIGHT, .75"/19mm & 1.25"/32mm
19" / 483mm
29.5625" / 751mm
2.375"/ 60mm
1.30"/ 33mm
4.8125"
122mm
4.5625"
116mm
All information per
Crest Consoles Engineering,
May 5, 1997
