Product Manual — Doc. 9045M DM NAX® • 626
l
If an output signal is present but not clipping, Signal will display Present in green and Clipping will
display None in green.
l
If an output signal is present and clipping, Signal will display Present in green and Clipping will
display Present in red.
l
If no output signal is detected, Signal will display Not Present in red and Clipping will display None
in green.
Click Done to return to the Settings tab of the web user interface.

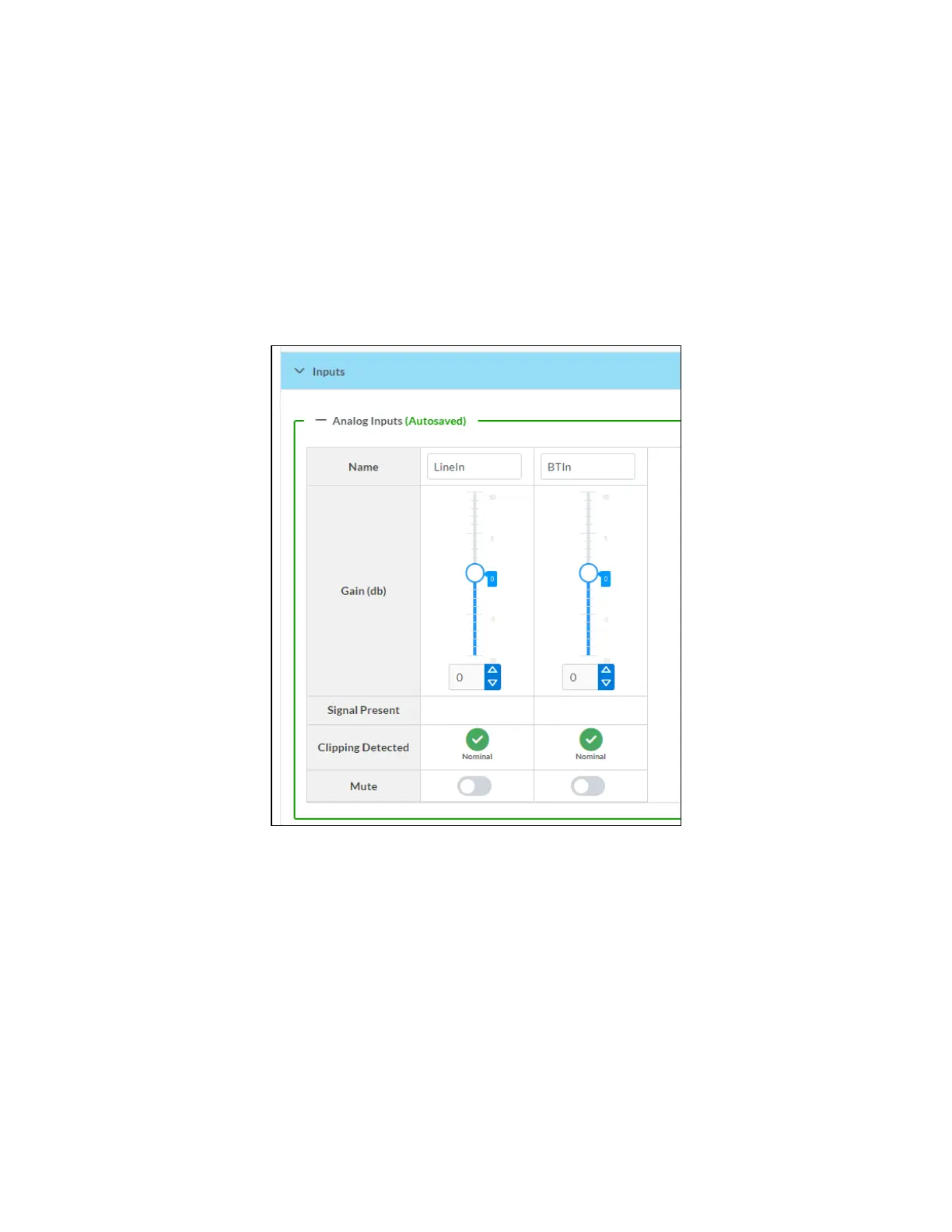

Inputs
The Inputs section is used to configure the Name, Compensation, and Mute attributes of the available
analog, digital, and media streaming inputs on the DM-NAX-BTIO-1G.
Configure Inputs
1. If needed, enter a friendly name for each input in its Name field.
2. To set a level compensation adjustment for a given input, do one of the following:
l
Move the Compensation slider up to increase or down to decrease the level compensation.
Compensation increases or decreases the level of the incoming audio signal on any of the
physical inputs on the device's rear panel.
l
Click the db arrows to increase or decrease the compensation. Values range from -10dB to
10dB, adjustable in increments of 1dB.
l
Manually enter a value in the Compensation field.
