Mount the Subwoofer
1. Remove the tap cap and rotate the dial to the 70V/100V or 8 Ohm
tap selection and then firmly reinstall the tap cap (see Figure A).
NOTE: Make sure the desired tap selection is done on the subwoofer
before lowering it into the ground.
2. Place the subwoofer into the ground.
NOTE: Ensure that the bottom of the dome is about 4 in. (102 mm)
above ground level – it should not be buried or set at ground level.
3. Dig a 5 in. (127 mm) deep trench to run the speaker cable in. Make
sure trenching is done as per local codes.
Connect the Speaker Cable
1. Run the speaker cable (not included) from theaudio source to the
wire nut, observing all appropriate local codes.
2. Run the speaker cable from the speaker location to the wire nut,
observing all appropriate local codes.
NOTES:
l The speaker includes a hardwired direct-burial speaker cable.
l Make sure that the positive cable is attached to the red
connection, and the negative cable is attached to the black
connection.

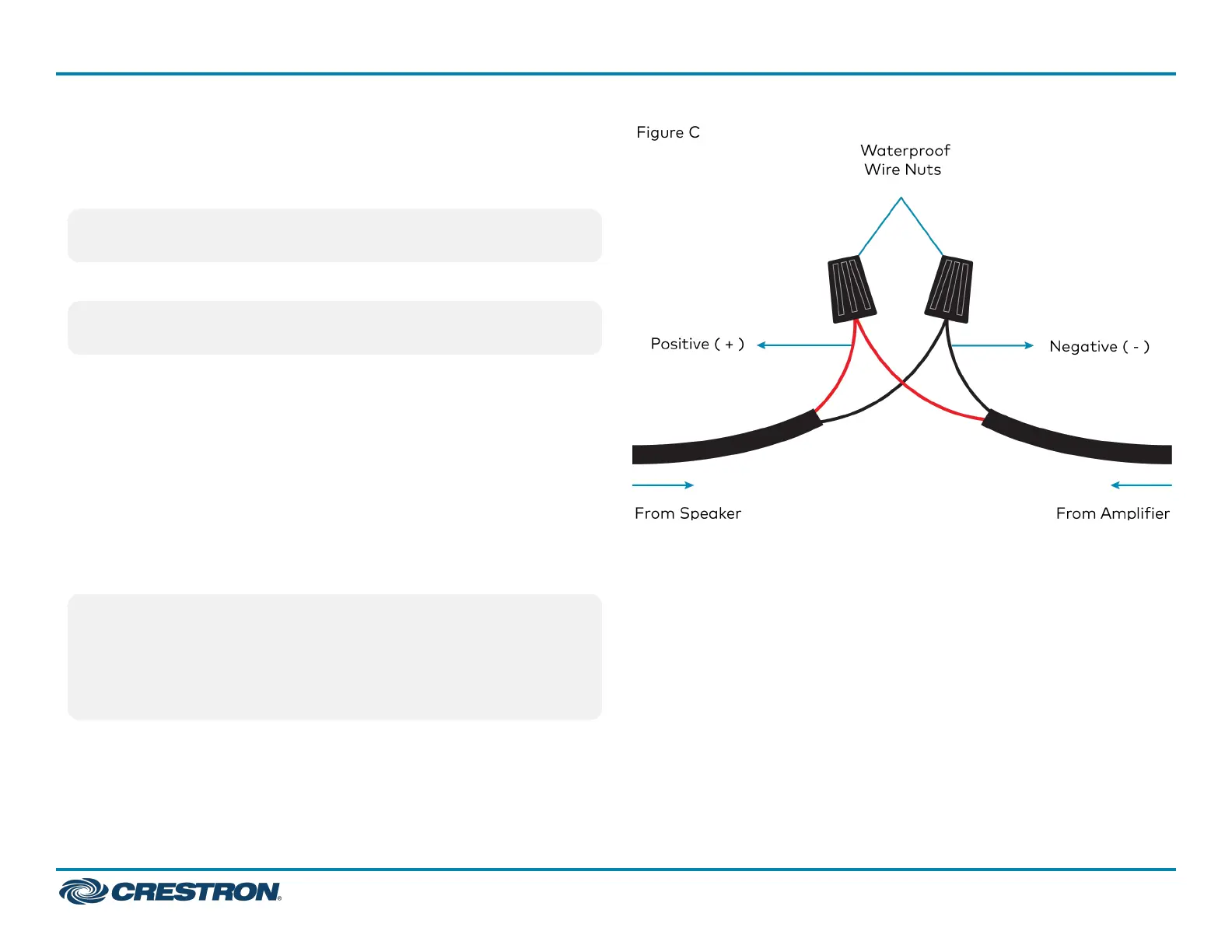

3. Combine and twist the positive (+) cables together in a clockwise
motion. Repeat this step for the negative (-) cables.
4. Secure the two cables together using the wire nuts ensuring that NO
COPPER is exposed.
3
ULTIMATE IGS12T-PRIMED-EACH
QuickStart
Ultimate 12in. In-GroundSubwoofer, PrimedPaintable, Single
