CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD
06
crlaurence.com | usalum.com
NOT TO SCALE

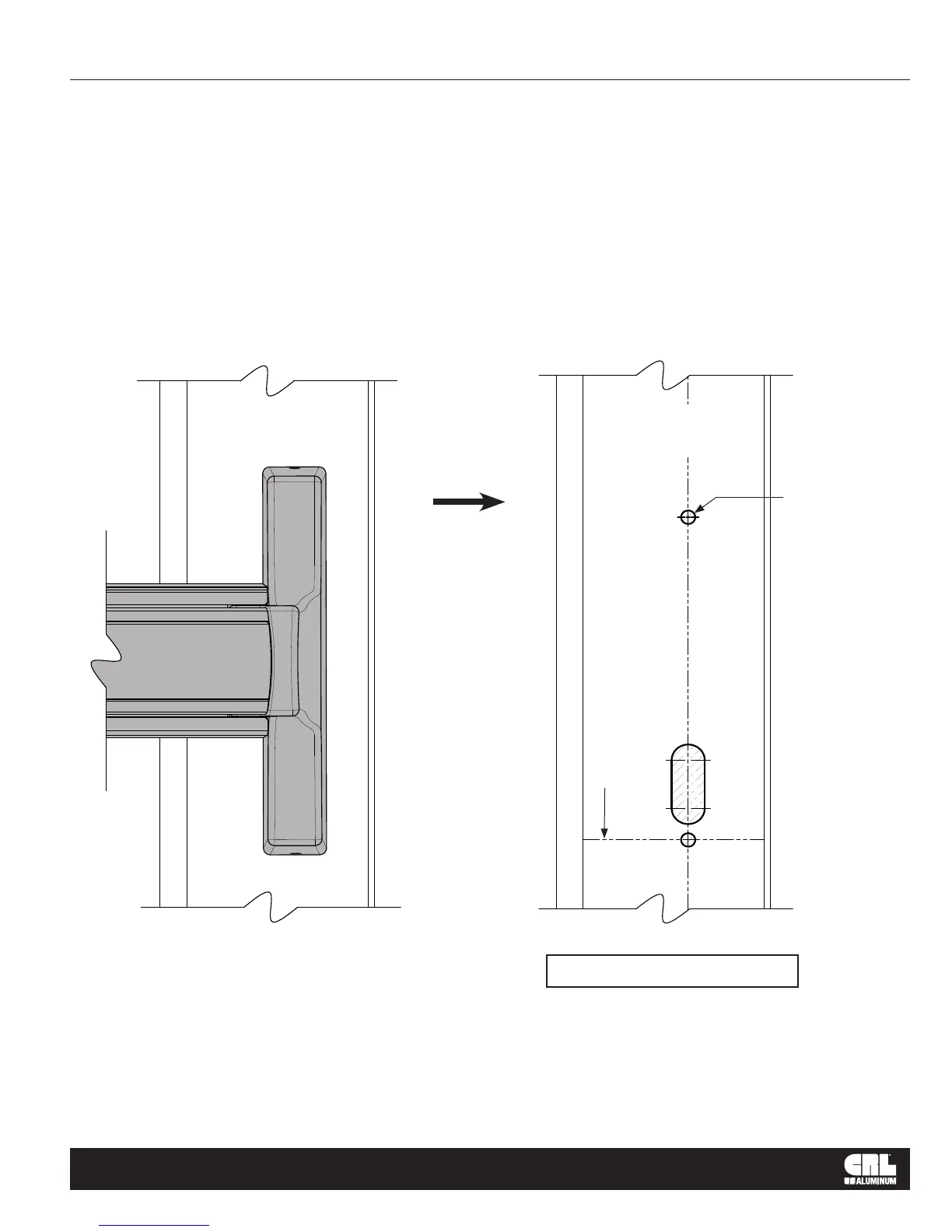

DOOR PREPARATION – LAYOUT SELECTION
2085 EXIT DEVICE INSTALLATION - ACTIVE STILE
Edge of Door
Edge of Door
Use Template from Box
35" (889) to Bottom of Door From This Line
FIG. 3
Drill and Tap
for a 1/4"-20
Machine Screw
(2) Places
Glass Stop
Glass Stop
INTERIOR VIEW
ACTIVE STILE
2085 Active Side
Mounting Inside Face
10-1028-2 Rev� A (View #1)
