CRL JACKSON PANIC EXIT DEVICES - 2085 CONCEALED VERTICAL ROD
08
crlaurence.com | usalum.com
NOT TO SCALE
FIG. 6

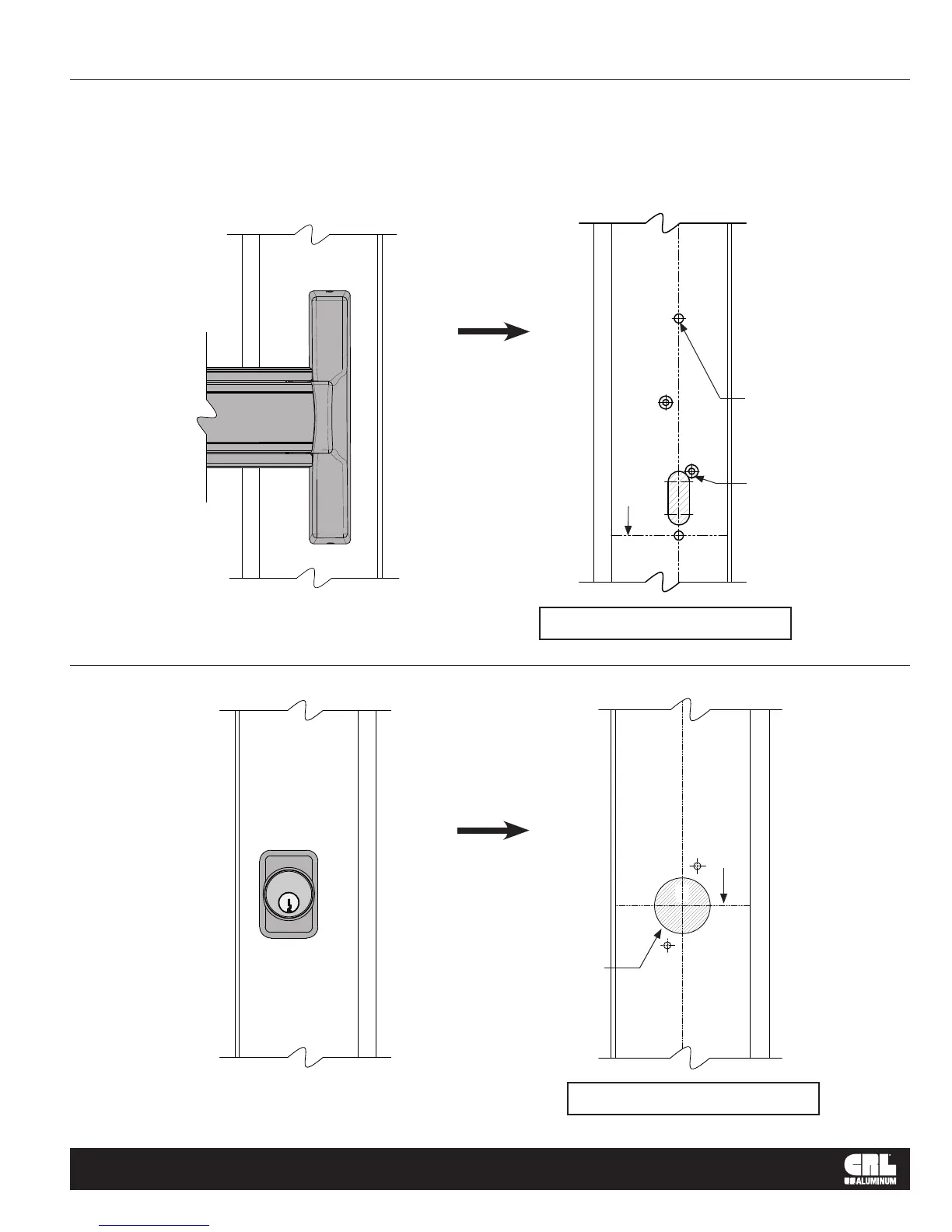

DOOR PREPARATION – LAYOUT SELECTION
Edge of Door
Edge of Door
Drill and Counter
Sink for a 8-32 FHMS
(2) Places
Edge of Door
FIG. 5
2085 EXIT DEVICE INSTALLATION WITH LOCK CYLINDER AND MOUNTING PAD
35" (889) to Bottom of Door From This Line
Drill and Tap for
a 8-32 FHMS
(2) Places
Edge of Door
37-7/8" (962) to Bottom of Door From This Line
Drill and Tap
for a 1/4"-20
Machine Screw
(2) Places
Glass Stop
Glass Stop
Glass Stop
Glass Stop
EXTERIOR VIEW
ACTIVE STILE
Use Template from Box
Use Template from Box
INTERIOR VIEW
ACTIVE STILE
CUT
OUT
