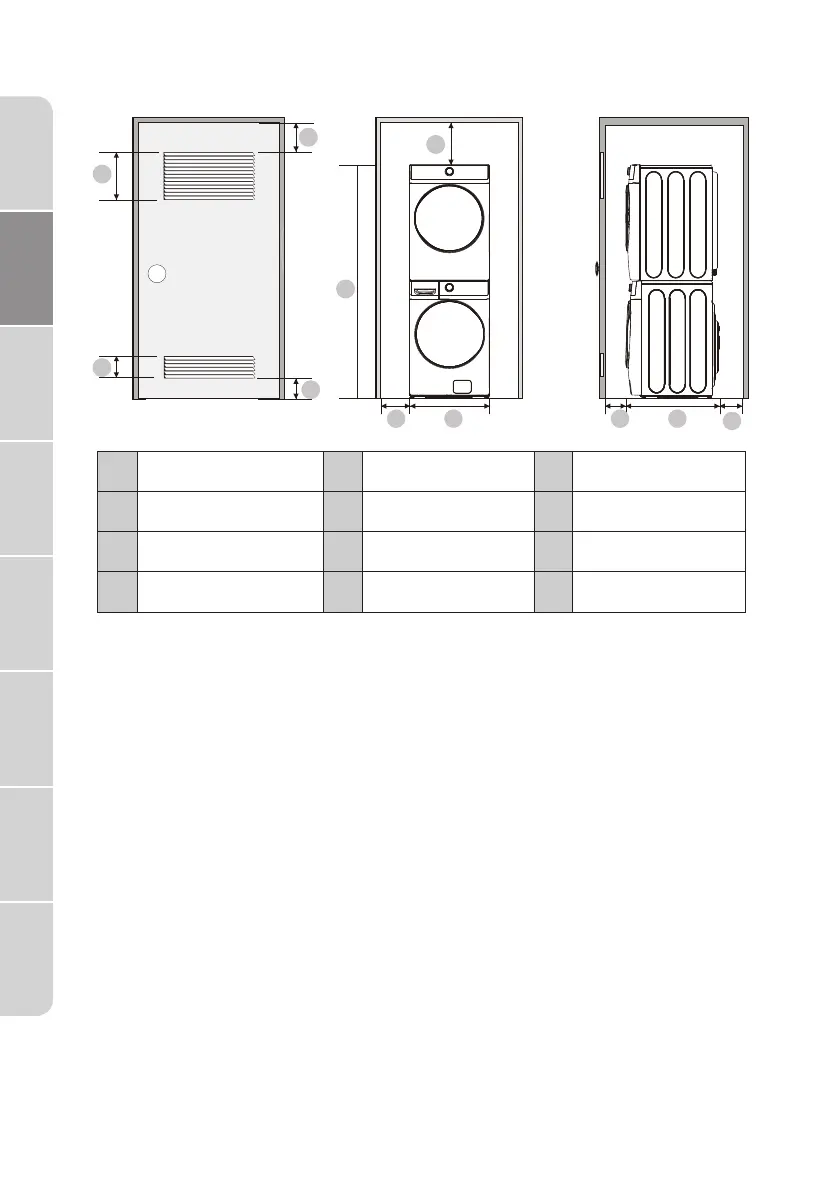

STACKED INSTALLATION
A
B
C
D
E
F
G H I J
K
A 3 in. (76 mm) E 6 in. (152 mm) I 3 in. (76 mm)
2 2
B 48 in. (31000 mm )
2 2
C 24 in. (15500 mm )
D 3 in. (76 mm) H 27 in. (686 mm)
NOTE:
The front of the closet must have two unobstructed air openings for a
combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum
clearance of 3 in. (76 mm) at the top and bottom. A slatted door with
equivalent space clearance is acceptable.
F 79 in. (2007 mm) J 33.7 in. (855 mm)
G 1 in. (25 mm) K 8 in. (203 mm)
