- 10 -

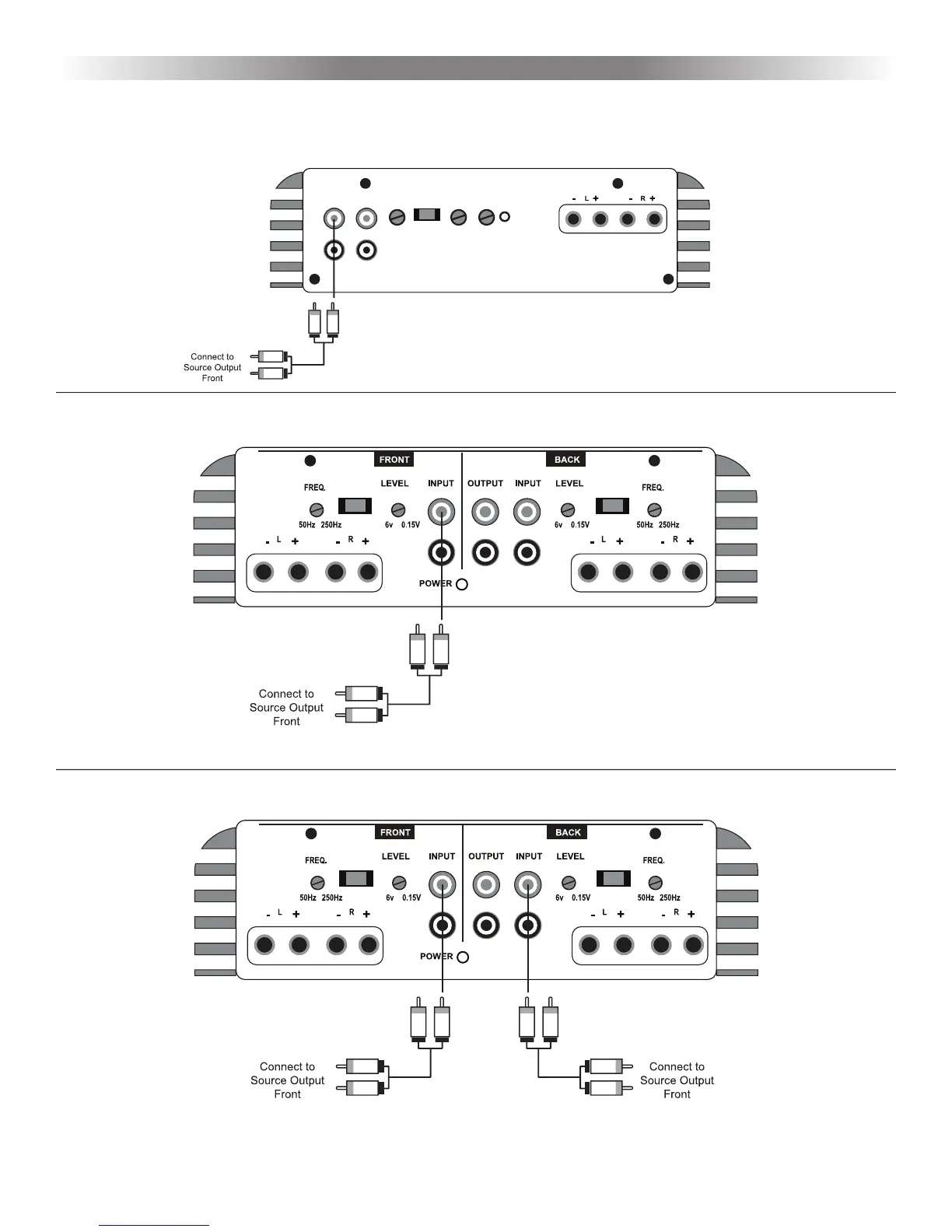

LOW LEVEL INPUT CONFIGURATIONS CLASS A/B
Please note that your amplifi er may differ from those shown on this page. The following page has additional model
amplifi ers and connection diagrams and confi gurations.
2 CH. CONFIGURATION
4 CH. WITH (2) RCA INPUTS CONFIGURATION
4 CH. WITH (1) RCA INPUT CONFIGURATION
INPUT OUTPUT LEVEL
6V 0.15V 50Hz 250Hz 0
dB 12dB
BAS
S
BOOS
T
L
R
BRIDGE
D
SPEAKERS
FREQ.
PWR
- +
Use an RCA Y adapter or you can connect
the RCA to the Rear input and connect
another RCA to the Rear output and into
the Front input
HPF
LPF FULL
HPF
LPFFULL
HPF
LPF FULL
HPF
LPFFULL
