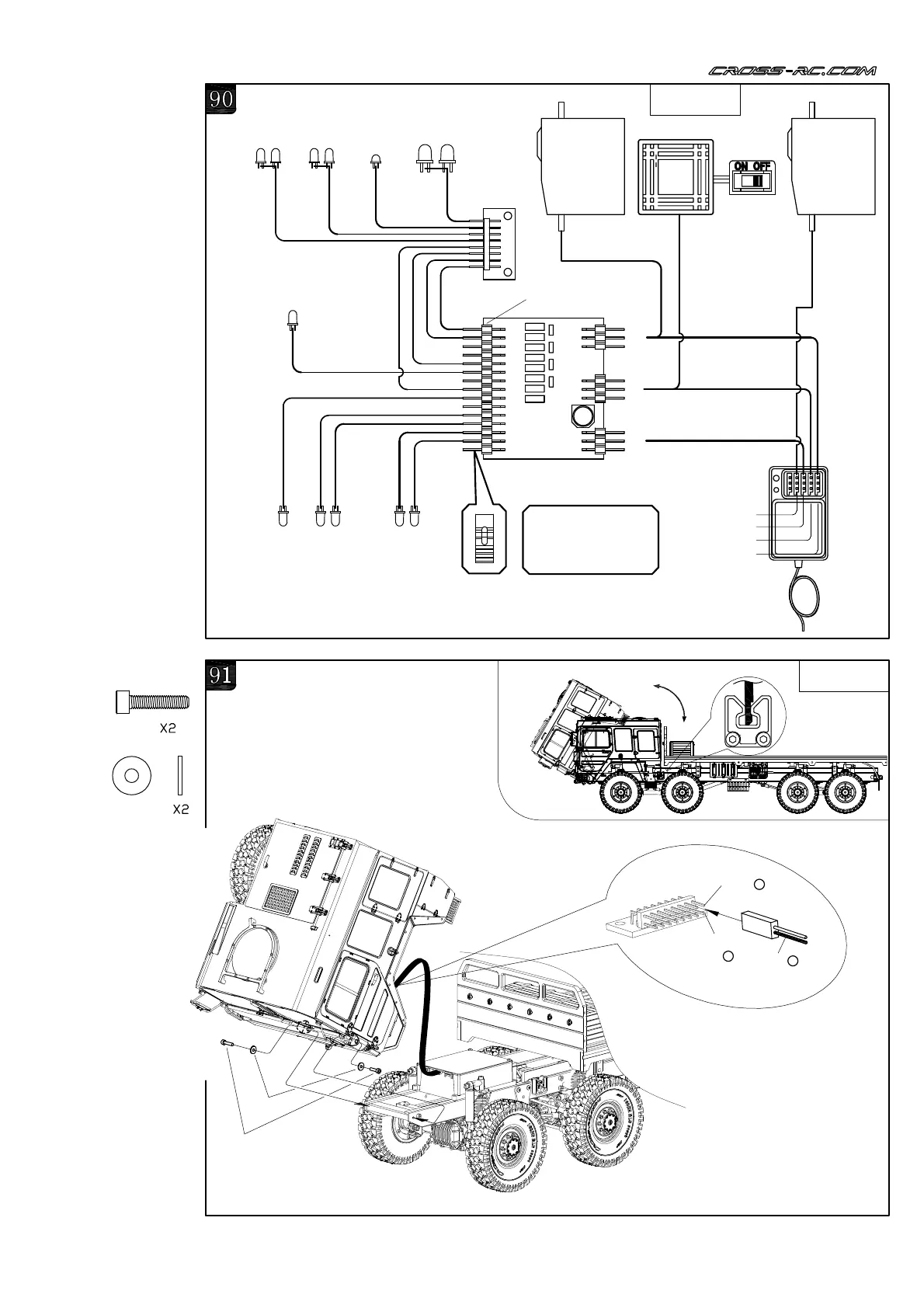

CROSSRC MC8B - Page 56

55
14103
11109
M3X14
CH1
CH2
CH3
J1
J2
J3
J4
J5
J6
J7
J8
J9
J10
J11
J12
J13
J14
J15
J5
5mmLED
Right turn signal
(yellow)
CH1
CH2
CH3
CH2
CH1
J15 Jumper
UP(-)
Down(+)
J9
5mmLED
Let turn signal
(Yellow)
J11/J12
5mmLED
Brake lights
(Red)
J13/J14
5mmLED
Reversing lights
(white)
Black
White
Red
Black
White
Red
Black
White
Red
Black
White
Red
PLease plug short
circuit cap if
vehicle go ahead but
brake lamps turn on.
J1
5mmLED
Headlamps
(white)
J2
5mmLED
Cab light
(yellow)
J6
5mmLED
Right turn signal
(yellow)
J8
5mmLED
left trun signal
(yellow)
CH4
CH4
M3x14
11109
∅3.2x∅9x1
14103
A
B
C
D
D
C
B
A
MC8B/C
MC8B/C
Red" + "
positive
pole " + "
negative
pole " - "
