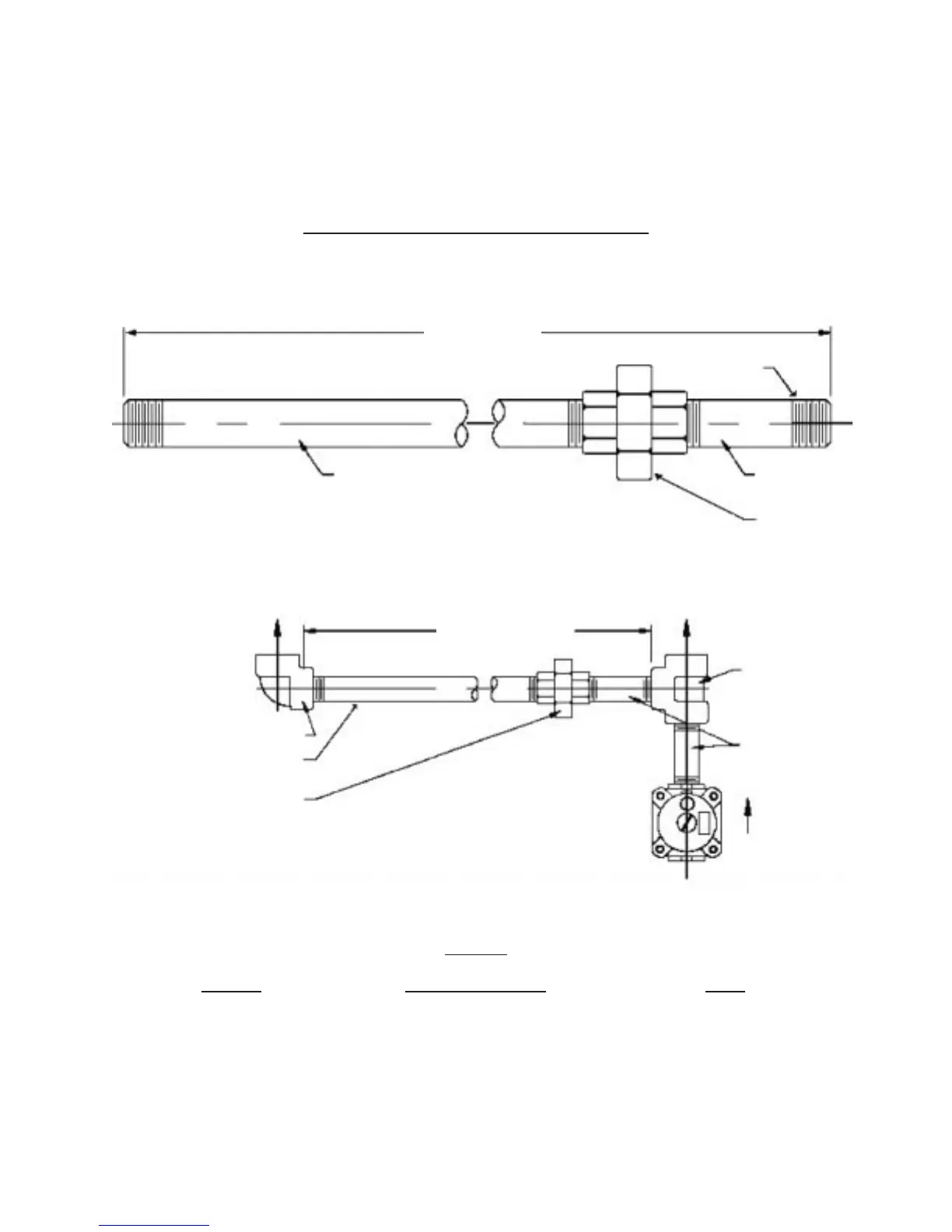

MANIFOLD COUPLING PIPE DETAIL
SEE TABLE
3/4" NPS.
SCH. 40
GAS PIPE
3/4" UNION
SHORT 3/4" SCH.
40 NIPPLE
3/4" NPT
MANIFOLD
COUPLING
PIPE
90° ELBOW
3/4" NPS.
GAS PIPE
3/4" UNION
3/4" TEE
NIPPLE
FLOW
MCB 60 AND MCB 72 MANIFOLD COUPLING PIPE
MCB 60 AND MCB 72 CONVERSION SET-UP
TABLE
MODEL SERIAL NUMBER DIM.
MCB-72 961001 – 961371 59-1/2”
MCB-72 961373 – 961450 63-1/2”
MCB-72 961451 & UP 56-1/4”
MCB-60 961001 – 961450 51-1/2”
MCB-60 961451 & UP 44-1/4”
