Crunch Ground Pounder GP10D2 - LED Connection and Wiring; LED Connection Instructions; LED Wiring Diagram; Glossary of Terms

4
7
GLOSSARY OF TERMS:
Q The system losses of relative damping (ratio of stored to dissipated
energy or ratio of reative to resistive energy.
Fs Free air resonance of driver in Hz.
Qms Mechanical Q of system.
Vas Volume of air equivalent to driver from rest position.
Cms Mechanical compliance of a loudspeaker piston.
Mms Moving mass of total loud speaker piston assembly.
Xmax The maximum linear excursion of a loudspeaker piston.
Sd Surface area of cone.
Dia The piston diameter of a loudspeaker.
Qes Electrical Q of system.
Re DC resistance.
Le VC inductance.
Pe Maximum input power.
Qts Total Q of system.
Sens Sensitivity. An efficency measurement in decibels/dBs
Vc Volume of a closed enclosure.
Vb Volume of a vented enclosure.
Fc The resonant frequency of a closed box system.
Fb The resonant frequency of a vented box system.
F3 The half-power (-3dB) frequency of a loudspeaker enclosure design.
Qtc The Q of a loudspeaker at Fc in a closed box, considering both its
electrical and mechanical resistance.
QL The Q of a vented box, resulting from all box losses.
Fill The acoustic absorption added inside a box to suppress unwanted
resonance.
Ports Number of ports.
DV Diameter of vent.
LV Leng t h of v e n t.
H Height
W Width
D Depth

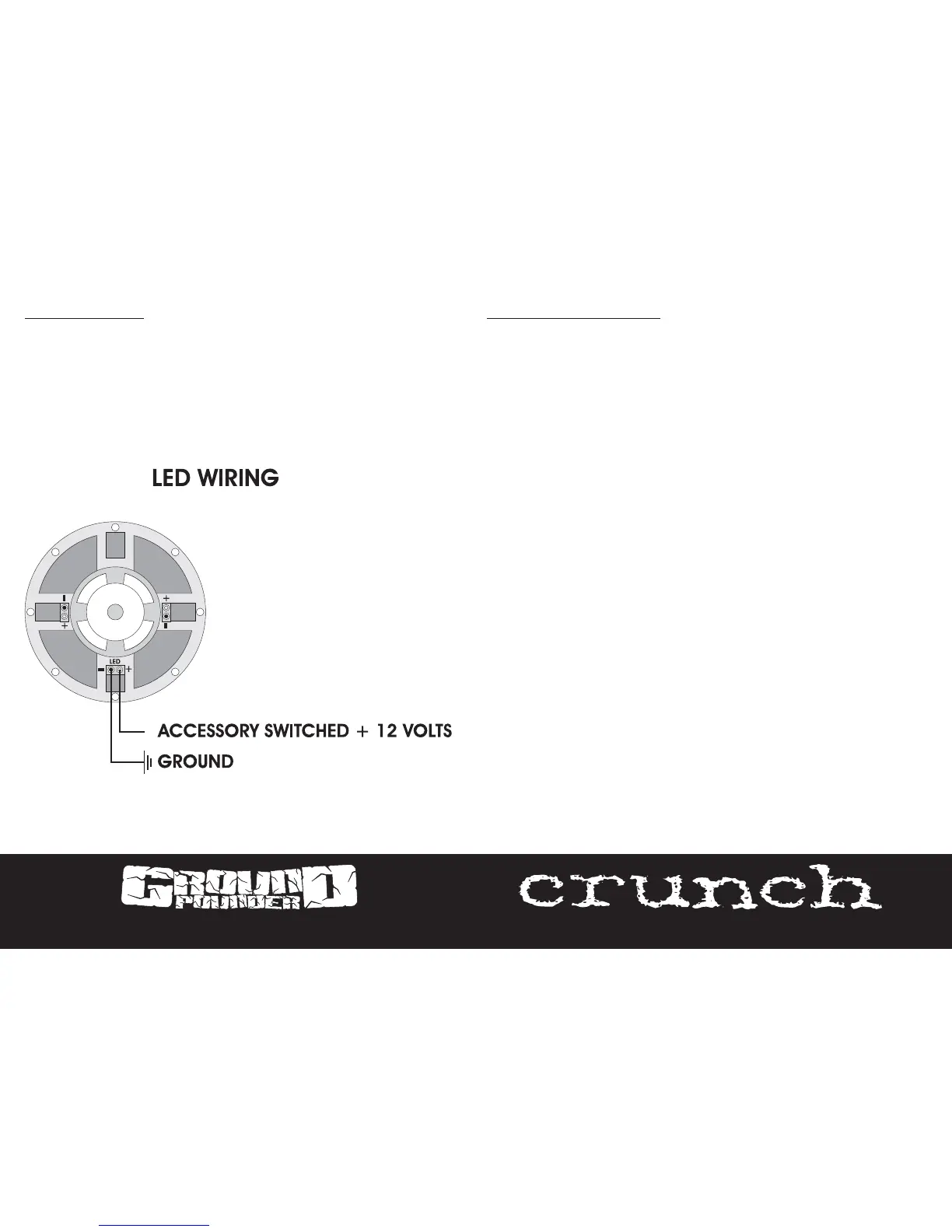

LED CONNECT:
1. Connect the LED (+) spade terminal to an accessory switched +12 volt wire. This
wire should have +12 volts when the ignition key is “on” and 0 volts when the ignition
key is “off”.
2. Connect the LED (-) spade terminal to chassis ground.
