Cryomech PT415 - Page 26

Specifications
5-2
1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2
50
55
60
65
70
75
80
85
Water Inlet Temperature (
0
F)
Water Flow Rate (GPM)
4 5 6 7 8 9 10 11 12
10
12
14
16
18
20
22
24
26
28
Water Flow Rate (LPM)
Water Inlet Temperature (
0
C)

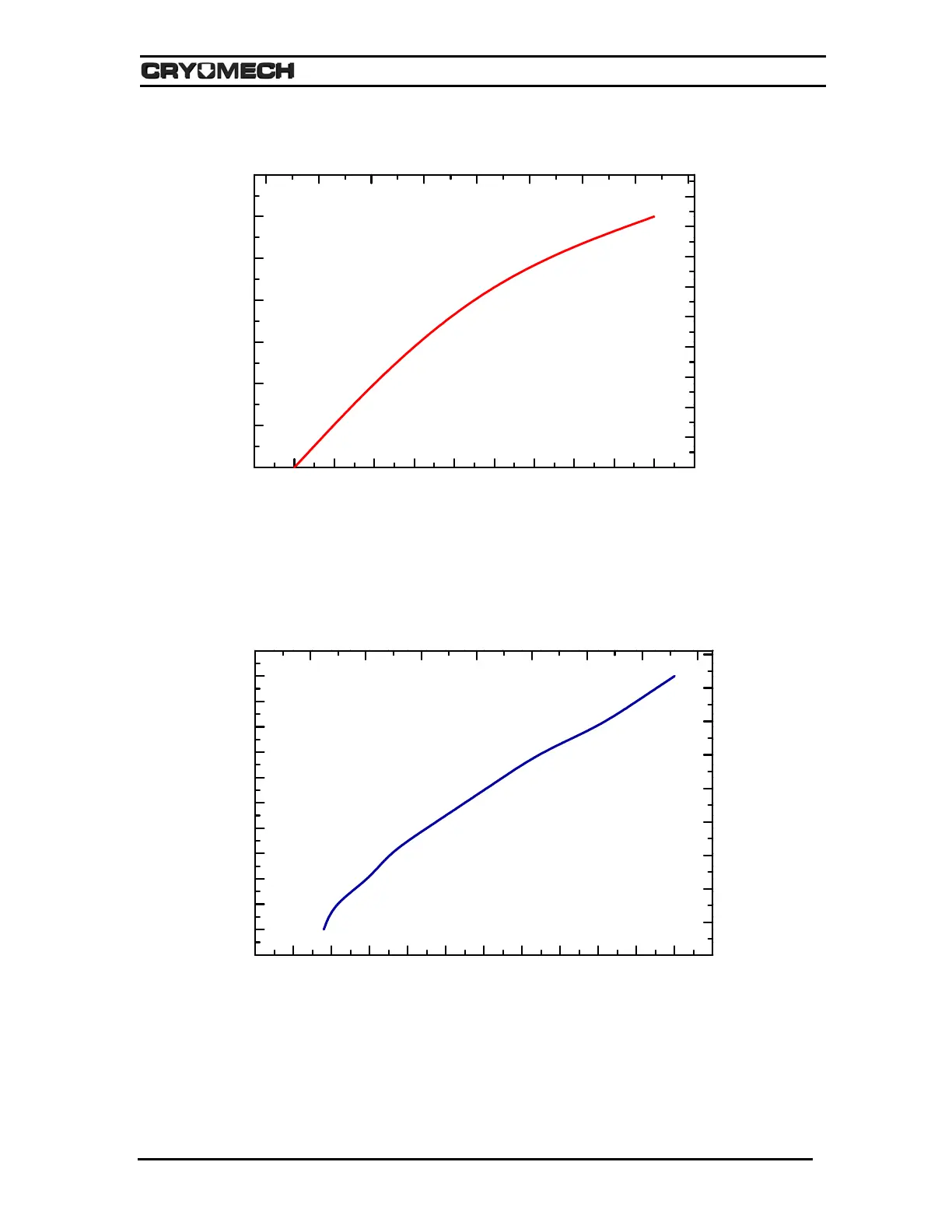

Figure 5-1: Cooling water requirement*
0 2 4 6 8 1012141618202224
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
Water Flow Rate (LPM)
Water Pressure Drop (bar)
Water Flow Rate (GPM)
Water Pressure Drop (PSI)
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
4
5
6
7
8
9
10
11
12
Figure 5-2: Cooling water pressure drop*
* When using a 50-50% mixture of ethylene glycol and water, increase the flow rate 10%.
Pressure drop values will increase 40%.
